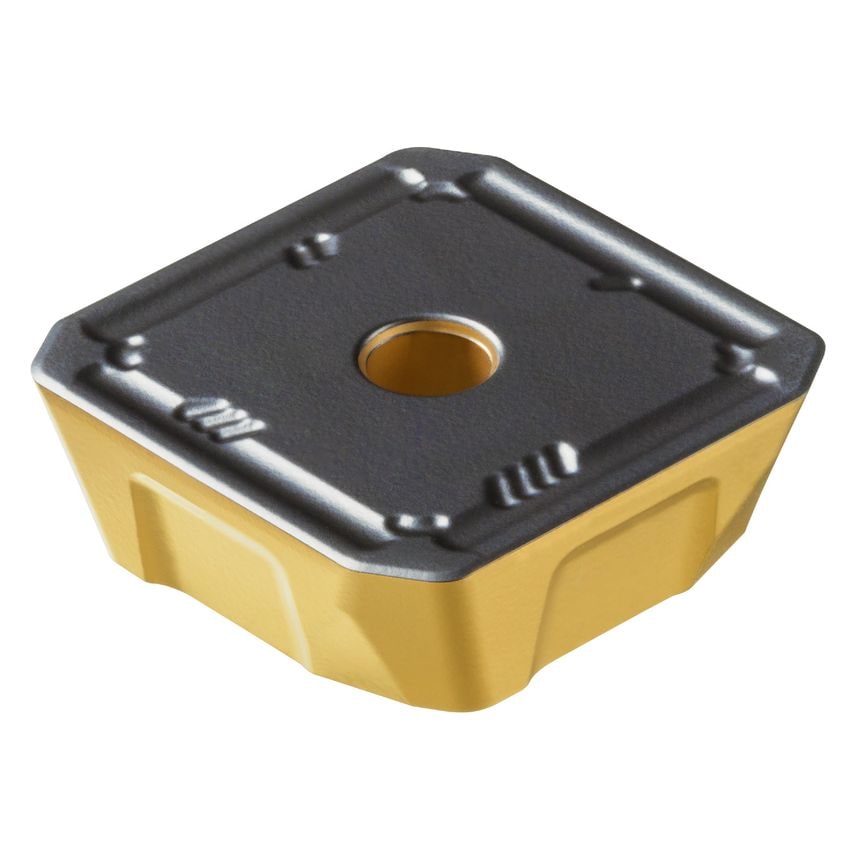

Product Range: CoroMill 360Tool Type: Face millingHeavy duty face millWith a maximum cutting depth of 18 mm (0.709 inch) together with high feed per tooth, CoroMill 360 provides a productivity boost that is tough to beat, with minimum risk for failure and machine downtime.Features & Benefits- First choice for heavy roughing- 4 cutting edges- Easy indexing of inserts via wedge Cartridges for securityApplication- Face milling- Diameter range: 160-500 mm (6.000-20.000 inch)
| Unit Measured | Metric |
| Insert Style | Clamp |
| Insert Shape | Square |
| Cutting Edge Count | 4 |
| Finish/Coating | TiCN+Al2O3+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Clamp |
| Through Hole Function Property | Yes |
| CoroPak | 19.1 |
| Maximum Depth of Cut | 13mm |
| Corner Radius | 1.6mm |
| Insert Size/Shape | CoroMill 360 -1906 |
| Coating Process Type | CVD |
| Inscribed Circle Diameter | 18.94mm |
| Coating Type | TiCN+Al2O3+TiN |
| Inscribed Circle | 18.94mm |
| MFR Part No. | 7564432 |
| Insert Rake Angle | 0\u00b0 |
| Maximum Cutting Depth | 13mm |
| Fixing Hole Diameter | 3.8mm |
| Weight | 26.1g |
| Grade | 4330 |
| Hand Preference | Right |
| Wiper Edge Length | 2.2mm |
| Wiper Edge Radius | 200mm |
| Insert Thickness | 6.35mm |
