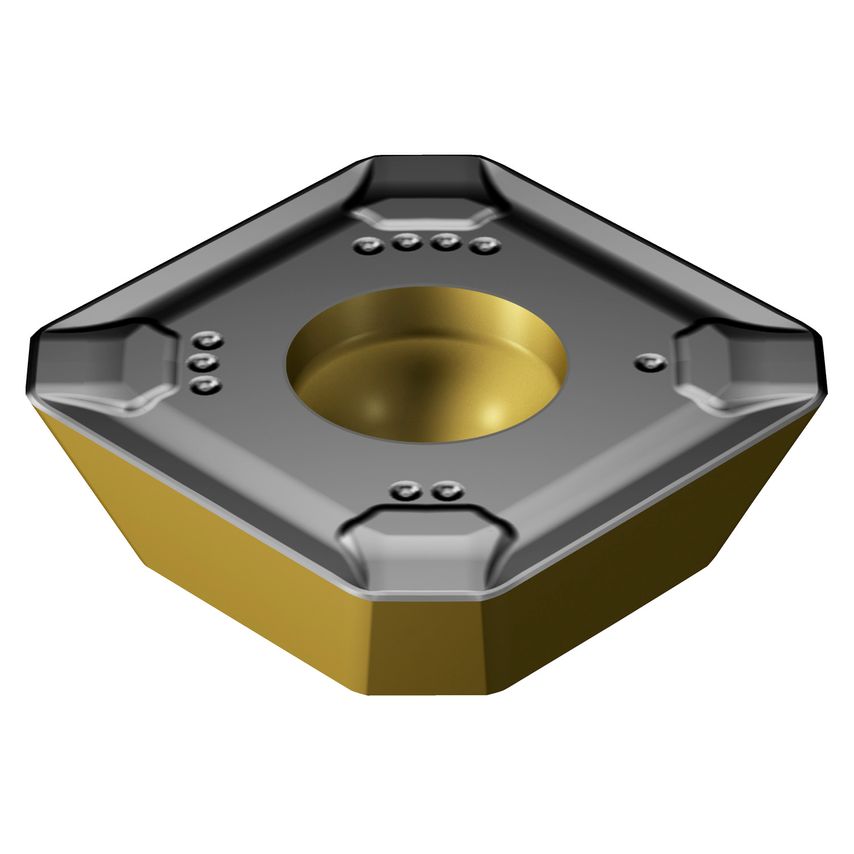

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

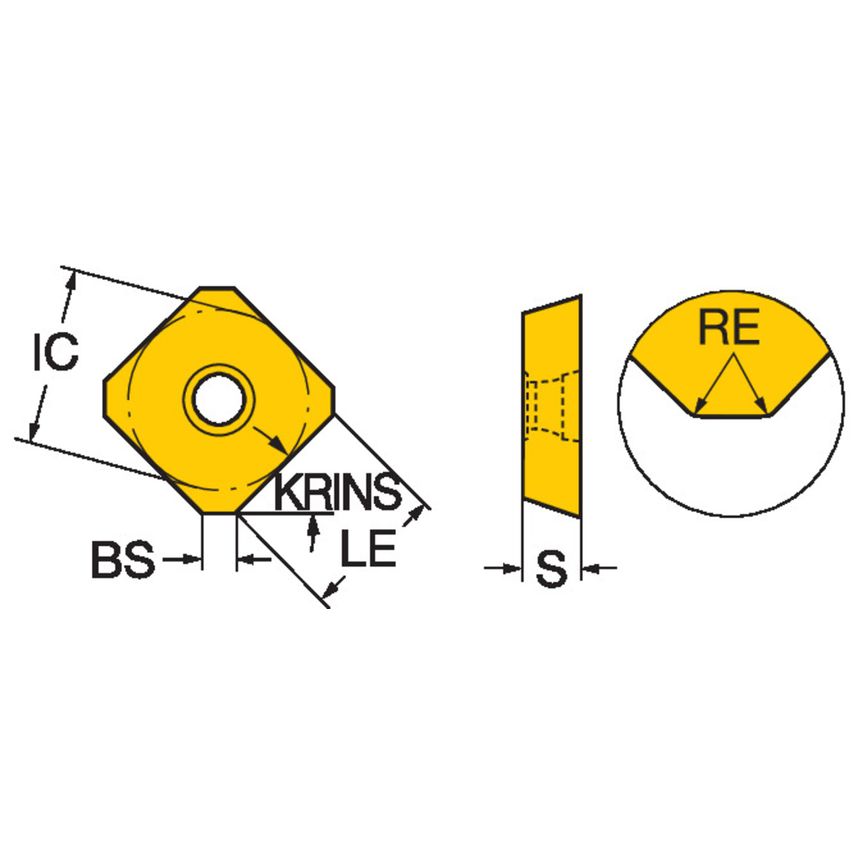

| Hand Preference | Right |
| Insert Thickness | 3.96875mm |
| Coating Process Type | CVD |
| Insert Shape | Square |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 245 -12T3 |
| CoroPak | 19.1 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 1.5mm |
| Through Hole Function Property | Yes |
| Inscribed Circle | 13.4mm |
| Wiper Edge Length | 2mm |
| Maximum Depth of Cut | 6.5mm |
| Cutting Edge Count | 4 |
| Inscribed Circle Diameter | 13.4mm |
| Unit Measured | Metric |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Rake Angle | 5\u00b0 |
| MFR Part No. | 7564438 |
| Fixing Hole Diameter | 4.1mm |
| Grade | 4340 |
| Maximum Cutting Depth | 6.5mm |
| Insert Mounting Style | Screw/Clamp |
