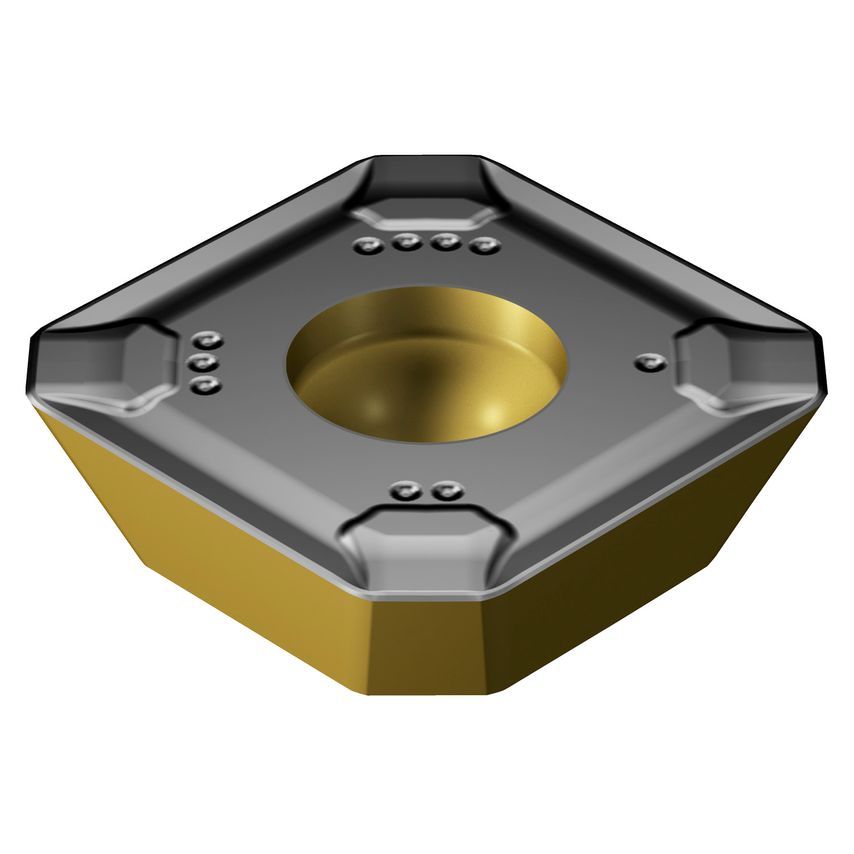

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

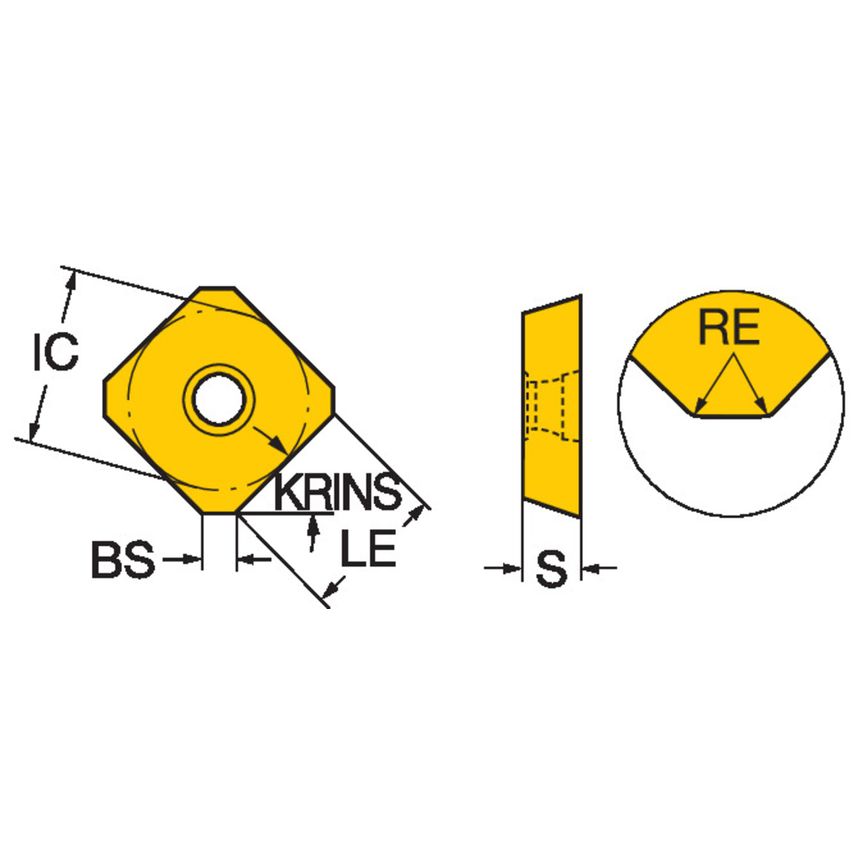

| Insert Style | Screw/Clamp |
| Maximum Cutting Depth | 6.5mm |
| CoroPak | 19.1 |
| Maximum Depth of Cut | 6.5mm |
| Fixing Hole Diameter | 4.1mm |
| Coating Process Type | CVD |
| Weight | 7.2g |
| Hand Preference | Right |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Inscribed Circle Diameter | 13.4mm |
| Wiper Edge Length | 2mm |
| Corner Radius | 1.5mm |
| MFR Part No. | 7564437 |
| Insert Thickness | 3.96875mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Insert Rake Angle | 5\u00b0 |
| Coating Type | TiCN+Al2O3+TiN |
| Grade | 4330 |
| Inscribed Circle | 13.4mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Shape | Square |
| Cutting Edge Count | 4 |
| Unit Measured | Metric |
