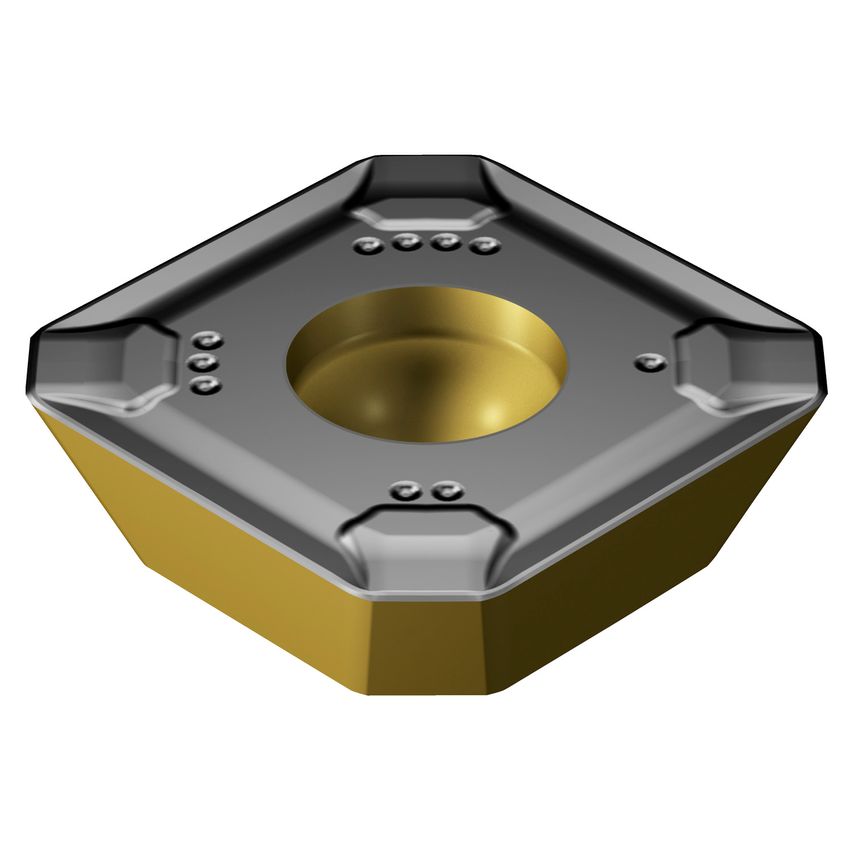

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |

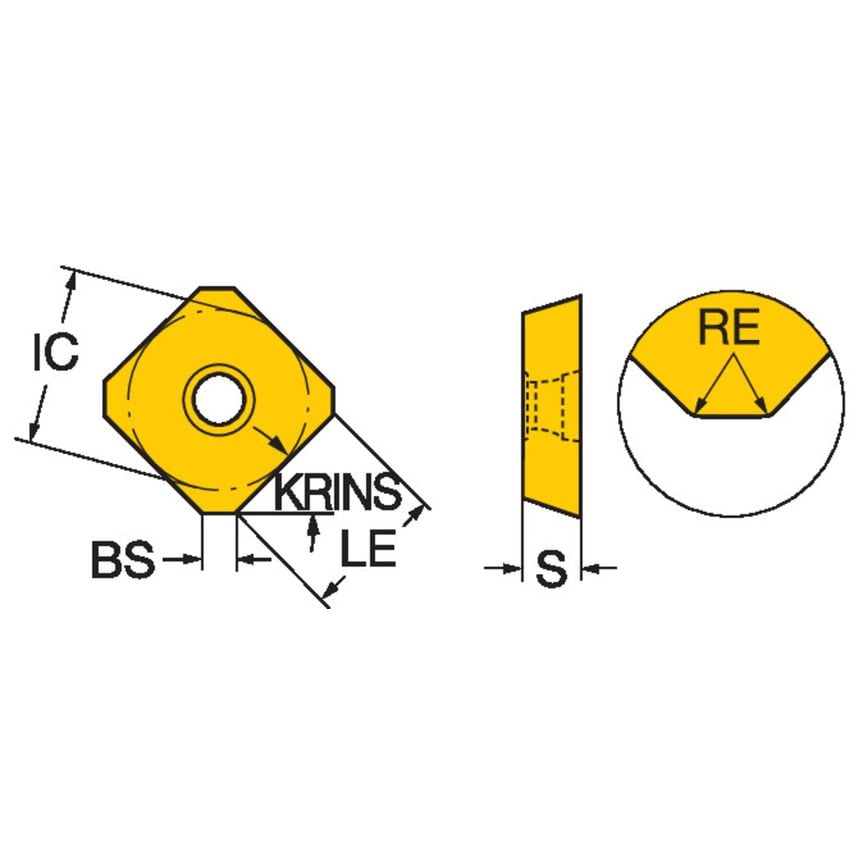

| Inscribed Circle | 18mm |
| Fixing Hole Diameter | 5.7mm |
| Insert Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 245 -18T6 |
| MFR Part No. | 7564444 |
| Cutting Edge Count | 4 |
| Hand Preference | Right |
| Insert Shape | Square |
| Wiper Edge Length | 1.5mm |
| Inscribed Circle Diameter | 18mm |
| Coating Process Type | CVD |
| CoroPak | 19.1 |
| Unit Measured | Metric |
| Maximum Cutting Depth | 9.75mm |
| Coating Type | TiCN+Al2O3+TiN |
| Corner Radius | 1mm |
| Maximum Depth of Cut | 9.75mm |
| Grade | 4340 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Rake Angle | 10\u00b0 |
| Insert Thickness | 6.1mm |
