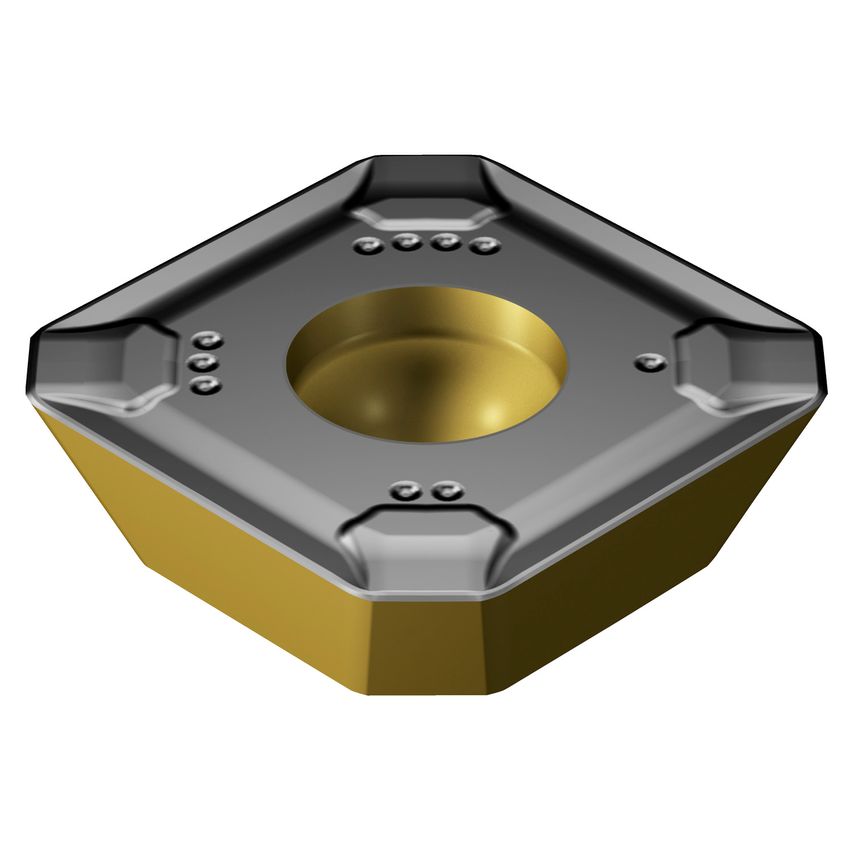

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Maximum Depth of Cut | 6.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 6.5mm |
| Insert Shape | Square |
| Insert Style | Screw/Clamp |
| Coating Type | TiCN+Al2O3+TiN |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Insert Thickness | 3.96875mm |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Fixing Hole Diameter | 4.1mm |
| Wiper Edge Length | 2.03mm |
| Inscribed Circle Diameter | 13.4mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| MFR Part No. | 7564442 |
| Grade | 4340 |
| Insert Rake Angle | 15\u00b0 |
| Coating Process Type | CVD |
| CoroPak | 19.1 |
| Cutting Edge Count | 4 |
| Inscribed Circle | 13.4mm |
| Corner Radius | 1.5mm |
