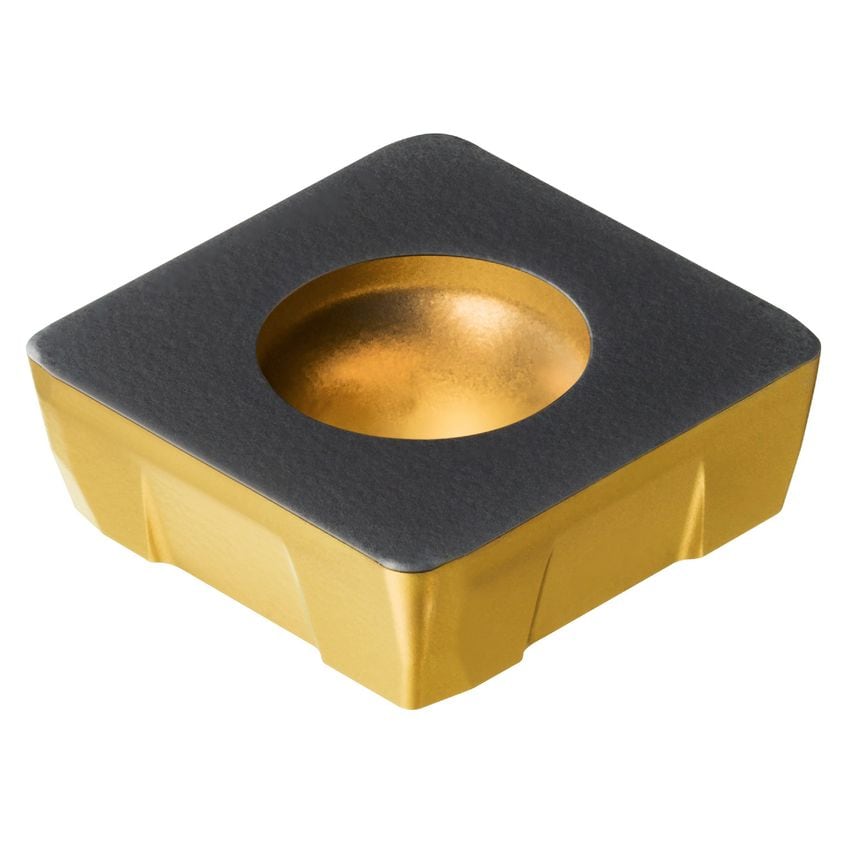

Tool type: Face millingHigh feed face and plunge milling.The CoroMill 210 is a very productive roughing concept to use when high metal removal rate is the first priority. A 10 entering angle allows extreme feed rates when face milling. This directs the cutting forces in an axial direction which provides a stable cutting action and no vibration tendency.Features & Benefits- High-feed face milling in steel and cast iron- 4 cutting edges- Internal coolant
| Cutting Edge Count | 4 |
| Coating Type | TiCN+Al2O3+TiN |
| CoroPak | 18.2 |
| Finish/Coating | TiCN+Al2O3+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 2mm |
| MFR Part No. | 7564457 |
| Through Hole Function Property | Yes |
| Corner Radius | 1mm |
| Wiper Edge Length | 0.77mm |
| Hand Preference | Right |
| Grade | 4330 |
| Insert Thickness | 4.7625mm |

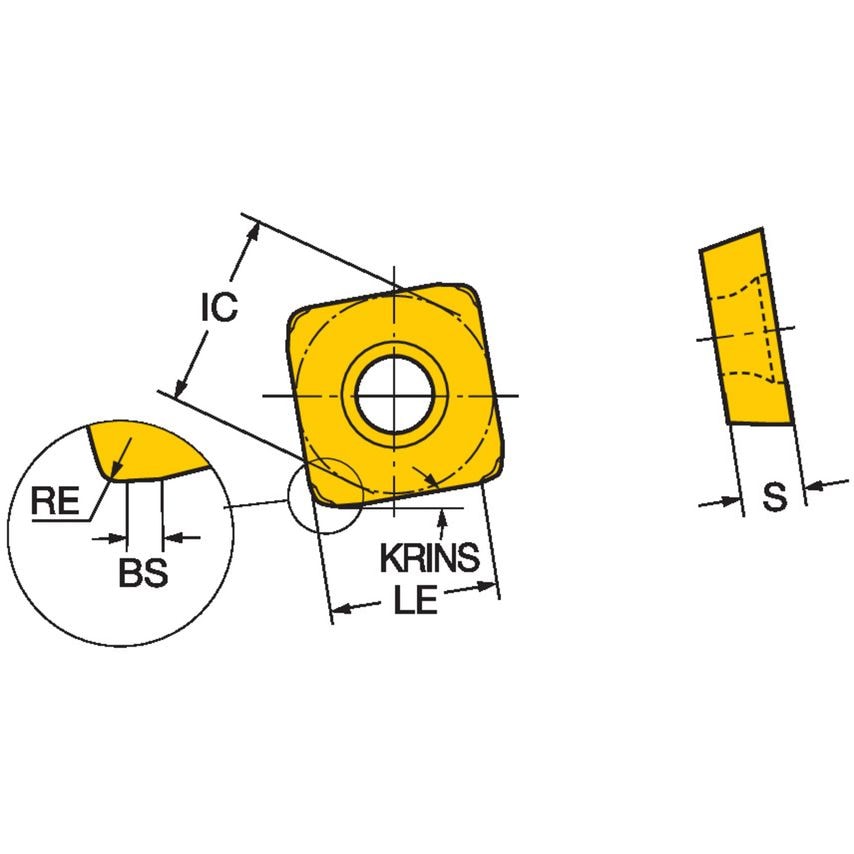

| Insert Size/Shape | CoroMill 210 -1405 s=4.76 |
| Insert Style | Screw/Clamp |
| Maximum Depth of Cut | 2mm |
| Unit Measured | Metric |
| Inscribed Circle Diameter | 14.5mm |
| Fixing Hole Diameter | 5.7mm |
| Inscribed Circle | 14.5mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Shape | Square |
| Coating Process Type | CVD |
