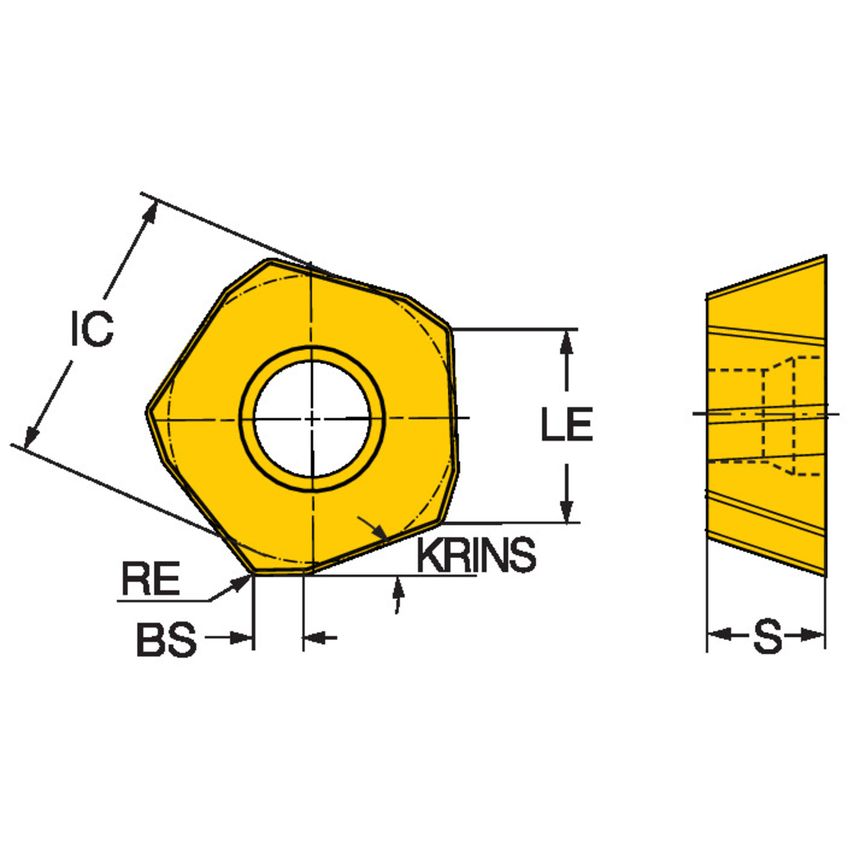

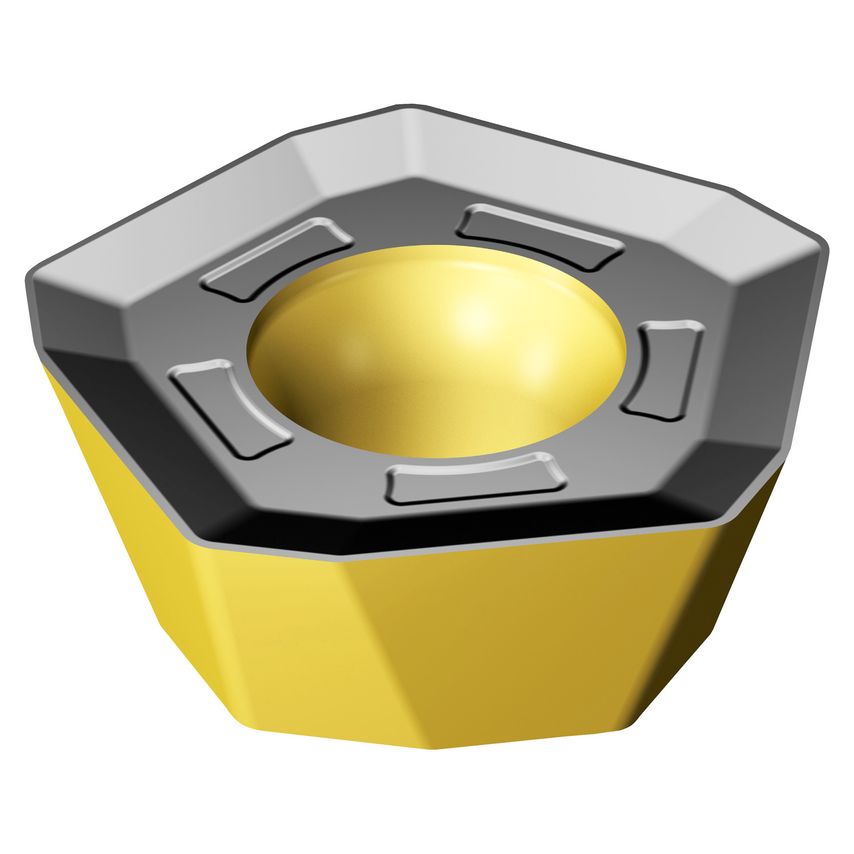

Product Range: CoroMill 419Tool Type: High-feed millingHigh-feed milling cutterCoroMill 419 is a high-feed milling concept with five edges for roughing to semi-finishing. It offers excellent performance in many material groups and has great possibilities for optimization. The high feed and light-cutting action enable a soft sound, creating an operator-friendly environment.Features & Benefits- First choice for stainless steel and heat-resistant super alloys- 5 cutting edges- Internal coolant
| Insert Mounting Style | Screw/Clamp |
| Insert Shape | Pentagon |
| Coating Process Type | CVD |
| Inscribed Circle | 13.5mm |
| Maximum Cutting Depth | 2mm |
| Maximum Depth of Cut | 2mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Fixing Hole Diameter | 5.5mm |
| Insert Style | Screw/Clamp |
| Insert Thickness | 5.47mm |
| Wiper Edge Length | 2mm |
| Grade | 4330 |
| Insert Size/Shape | CoroMill 419 - Size 1405 |
| Coating Type | TiCN+Al2O3+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7564479 |
| Cutting Edge Count | 5 |
| Inscribed Circle Diameter | 13.5mm |
| Insert Rake Angle | 0\u00b0 |
| Corner Radius | 0.8mm |
| Hand Preference | Right |
| CoroPak | 19.1 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
