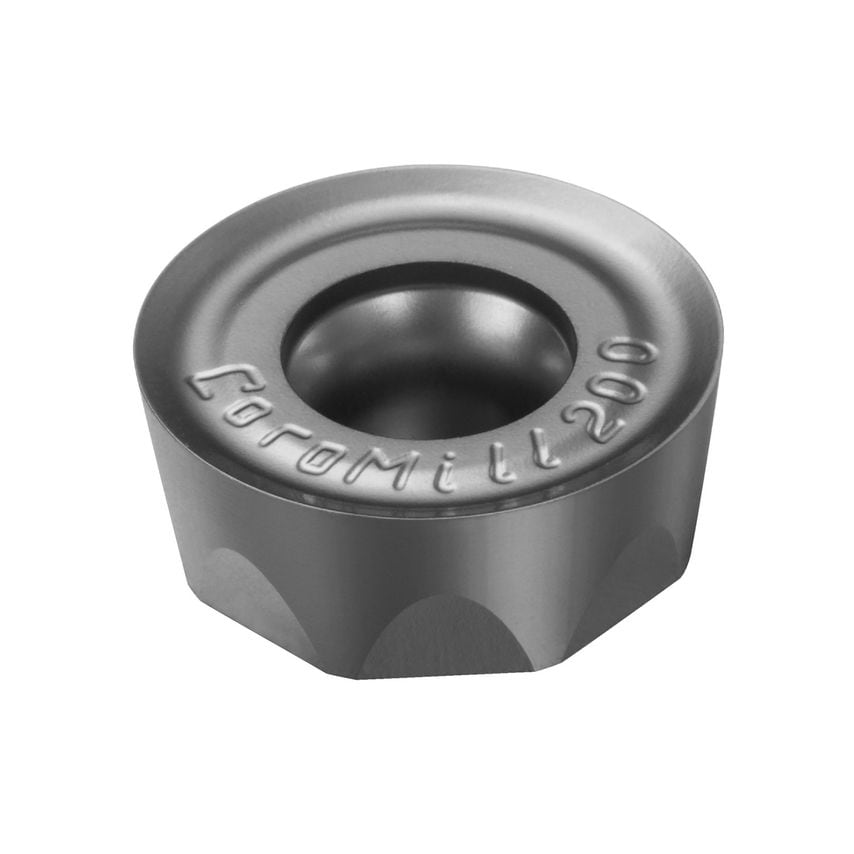

Tool type: Face millingRobust face milling and profile cutterCoroMill 200 is a very stable rougher and a versatile tool. It is a good choice for general milling as well as for die and mould-making and should be the first choice for roughing operations. Strong cutting edges make the cutter resistant to tough conditions with interruptions (holes, gaps etc.) and/or abrasive scale (skin).Features & Benfits- Round insert concept for secure first stage machining- 4 - 8 cutting edges- Shim for security- Cylindrical shank, Arbor, CIS Arbor, Whistle Notch or Weldon mounting- Process security and reliability
| Maximum Depth of Cut | 5mm |
| Grade | 1130 |
| CoroPak | 17.2 |
| Maximum Cutting Depth | 5mm |
| Insert Style | Screw/Clamp |
| Coating Type | AlTiCrN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Insert Size/Shape | RC10T3m |
| Inscribed Circle | 10mm |
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| Hand Preference | Neutral |
| Insert Thickness | 3.96875mm |
| Finish/Coating | AlTiCrN |
| Insert Shape | Round |
| Fixing Hole Diameter | 4.4mm |
| MFR Part No. | 7100914 |
| Inscribed Circle Diameter | 10mm |
| Corner Radius | 5mm |
| Coating Process Type | PVD |
| Cutting Edge Count | 4 |
