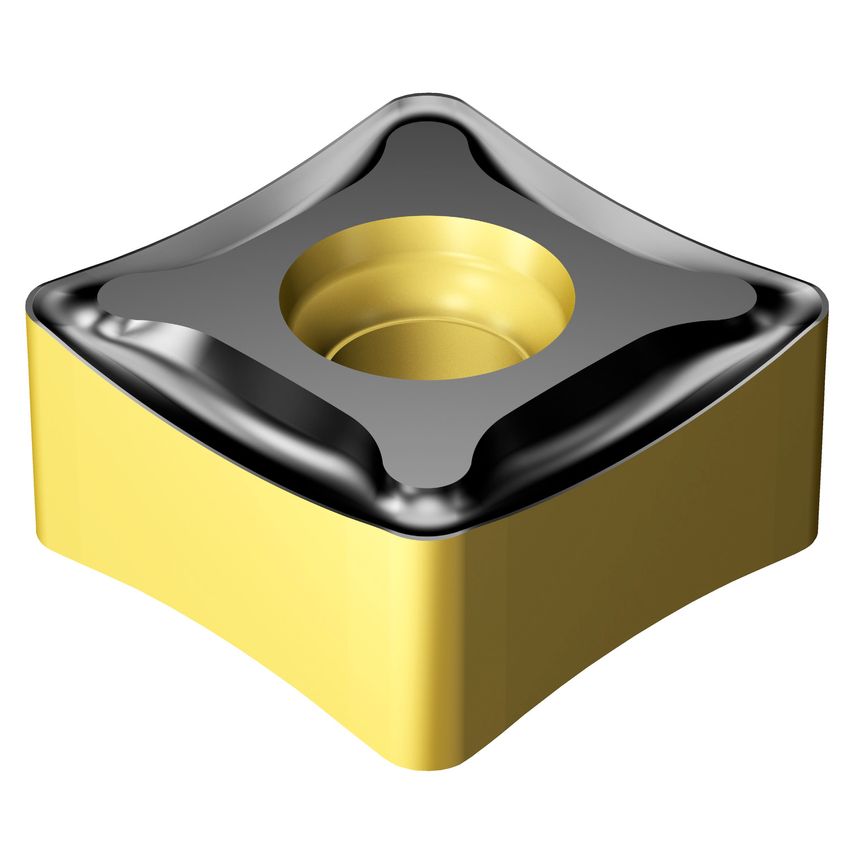

Product Range: CoroMill 331Multi-purpose side and face milling cutter.Features & Benefits- For radially wide shoulders, back facing and gang milling- 2 cutting edges- Large radius assortment- Cartridges for security- Internal coolant
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| Grade | 4330 |
| Hand Preference | Neutral |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle | 13.4mm |
| Cutting Edge Count | 8 |
| Coating Type | TiCN+Al2O3+TiN |
| Fixing Hole Diameter | 4.35mm |
| Wiper Edge Length | 1.2mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Thickness | 6.55mm |
| Maximum Depth of Cut | 11.4mm |
| Inscribed Circle Diameter | 13.4mm |
| Maximum Cutting Depth | 11.4mm |
| Coating Process Type | CVD |
| Through Hole Function Property | Yes |
| Insert Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 331 -13 |
| Corner Radius | 0.8mm |
| Insert Shape | Square |
| MFR Part No. | 7564546 |
| CoroPak | 18.2 |
