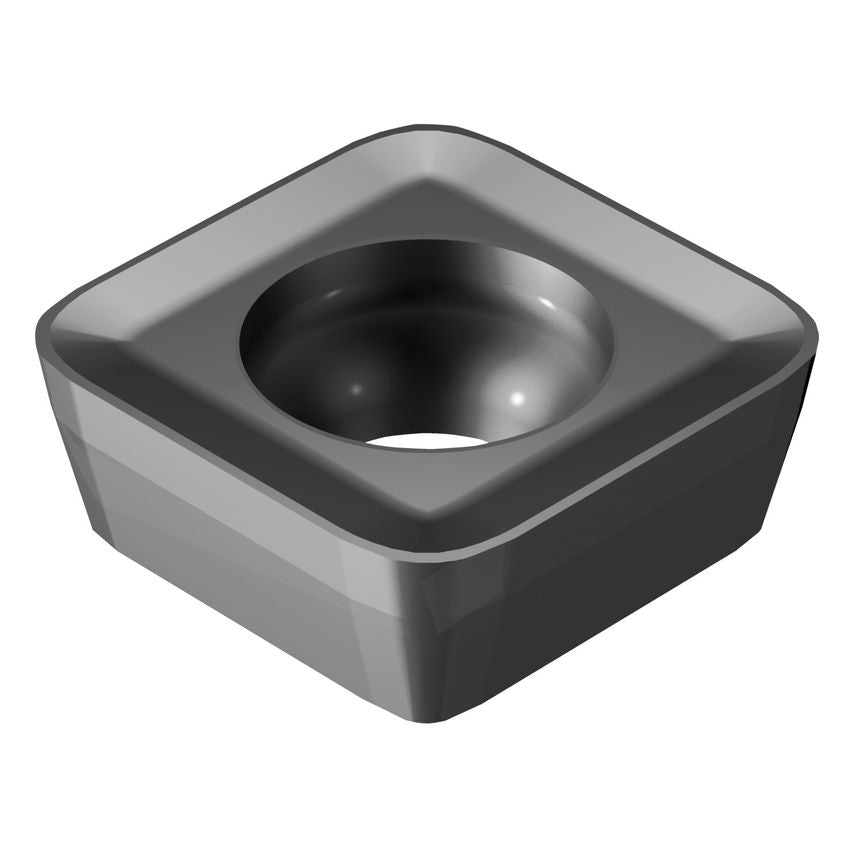

Tool type: Face millingHigh feed face and plunge milling.The CoroMill 210 is a very productive roughing concept to use when high metal removal rate is the first priority. A 10 entering angle allows extreme feed rates when face milling. This directs the cutting forces in an axial direction which provides a stable cutting action and no vibration tendency.Features & Benefits- High-feed face milling in steel and cast iron- 4 cutting edges- Internal coolant
| Fixing Hole Diameter | 5.7mm |
| Finish/Coating | AlTiCrN |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle Diameter | 14.6mm |
| Maximum Depth of Cut | 2mm |
| Through Hole Function Property | Yes |
| Corner Radius | 1.4mm |
| CoroPak | 18.1 |
| Cutting Edge Count | 4 |
| Coating Type | AlTiCrN |
| Insert Thickness | 5.26mm |
| Hand Preference | Neutral |
| Grade | 1130 |
| Wiper Edge Radius | 50mm |
| Wiper Edge Length | 0.71mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle | 14.6mm |
| Insert Style | Screw/Clamp |
| Unit Measured | Metric |
| Insert Size/Shape | CoroMill 210 -1405 s=5.26 |
| Coating Process Type | PVD |
| MFR Part No. | 7100937 |
| Maximum Cutting Depth | 2mm |
| Insert Shape | Square |
