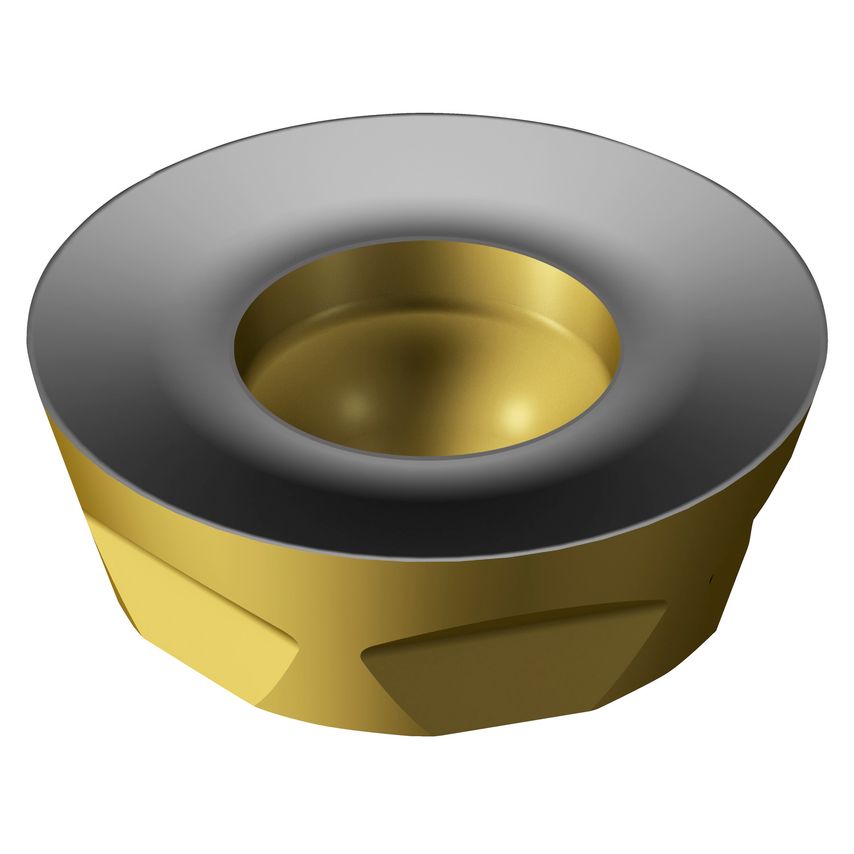

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Coating Type | TiCN+Al2O3+TiN |
| Cutting Edge Count | 6 |
| Inscribed Circle Diameter | 12mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Maximum Depth of Cut | 3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Hand Preference | Neutral |
| MFR Part No. | 7564581 |
| Insert Size/Shape | CoroMill 300 -1240 |
| Unit Measured | Metric |
| CoroPak | 19.1 |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Fixing Hole Diameter | 4.1mm |
| Insert Style | Screw/Clamp |
| Insert Shape | Round |
| Grade | 4340 |
| Insert Thickness | 3.96875mm |
| Corner Radius | 6mm |
| Coating Process Type | CVD |
| Inscribed Circle | 12mm |
| Maximum Cutting Depth | 3mm |
