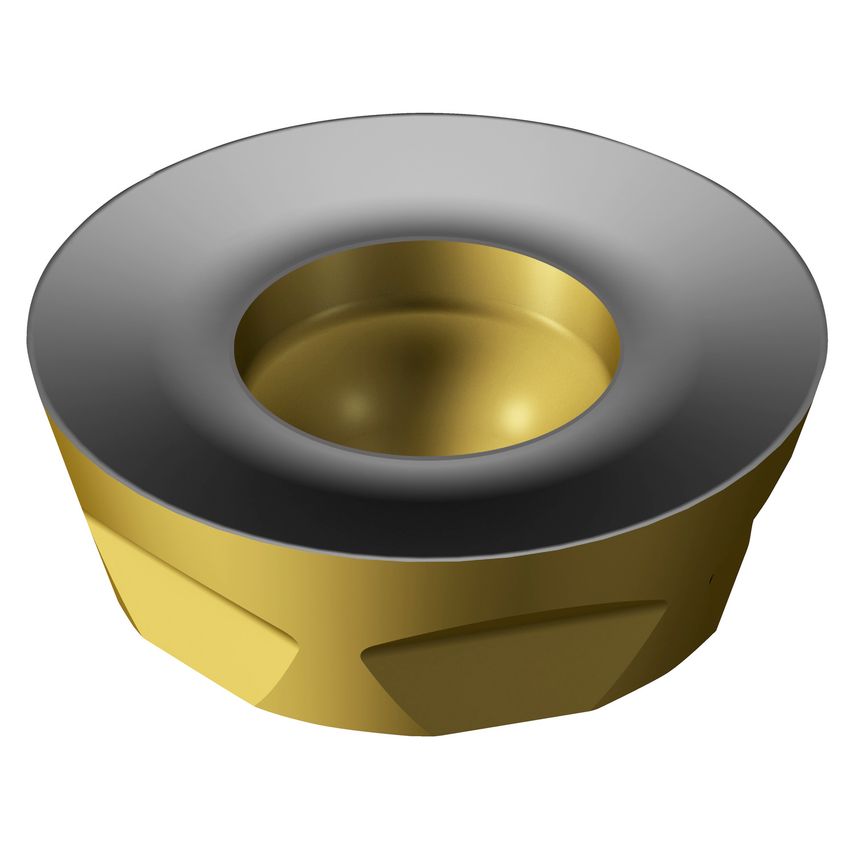

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Hand Preference | Neutral |
| Fixing Hole Diameter | 7.6mm |
| Insert Shape | Round |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 19.1 |
| Through Hole Function Property | Yes |
| Finish/Coating | TiCN+Al2O3+TiN |
| Unit Measured | Imperial |
| Insert Mounting Style | Screw/Clamp |
| Coating Process Type | CVD |
| Inscribed Circle Diameter | 25.4mm |
| Maximum Cutting Depth | 3.72mm |
| Grade | 4330 |
| MFR Part No. | 7564599 |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Thickness | 7.94mm |
| Maximum Depth of Cut | 3.72mm |
| Inscribed Circle | 25.4mm |
| Corner Radius | 12.7mm |
| Insert Size/Shape | CoroMill 300 -2570 |
| Cutting Edge Count | 8 |
| Insert Style | Screw/Clamp |
