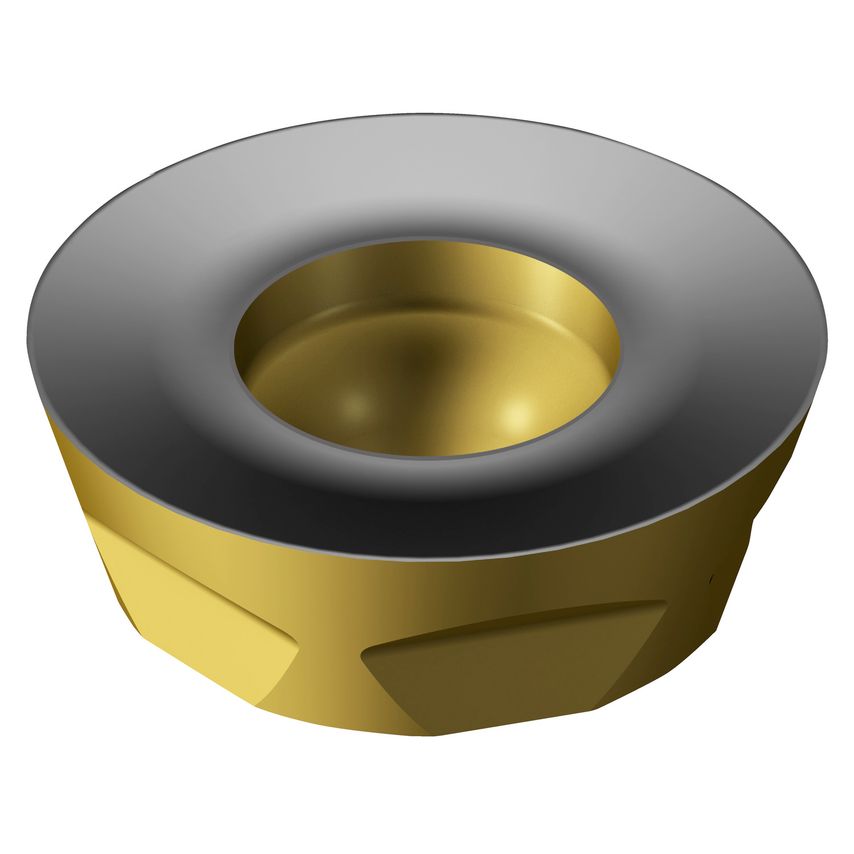

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Maximum Cutting Depth | 2.93mm |
| Insert Style | Screw/Clamp |
| MFR Part No. | 7564595 |
| Insert Mounting Style | Screw/Clamp |
| Fixing Hole Diameter | 7mm |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Size/Shape | CoroMill 300 -2060 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 10mm |
| Cutting Edge Count | 8 |
| CoroPak | 19.1 |
| Insert Thickness | 6.48mm |
| Inscribed Circle Diameter | 20mm |
| Through Hole Function Property | Yes |
| Coating Process Type | CVD |
| Grade | 4330 |
| Inscribed Circle | 20mm |
| Hand Preference | Neutral |
| Unit Measured | Metric |
| Maximum Depth of Cut | 2.93mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Shape | Round |
