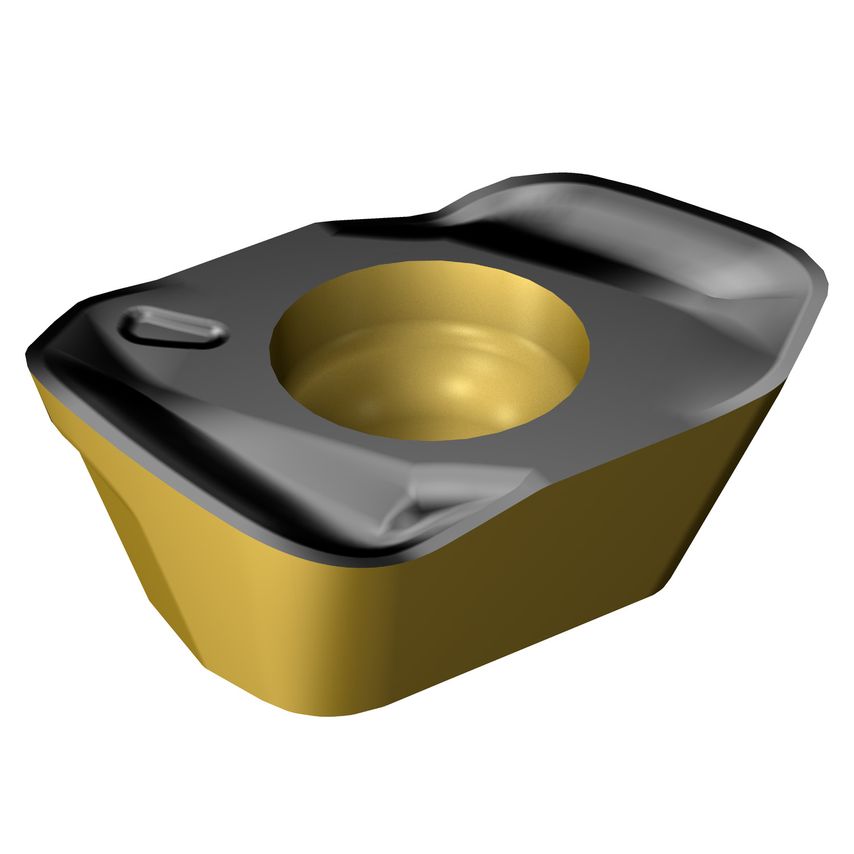

Product Range: CoroMill MH20Tool Type: High-feed millingHigh feed pocket millingFeatures & Benefits- First choice in pocket milling for ISO S, M and P materials- 2 cutting edges- Internal coolant- Ramping capabilities- Robust cutter body- Open insert pocket- Curved edge insert design
| Unit Measured | Metric |

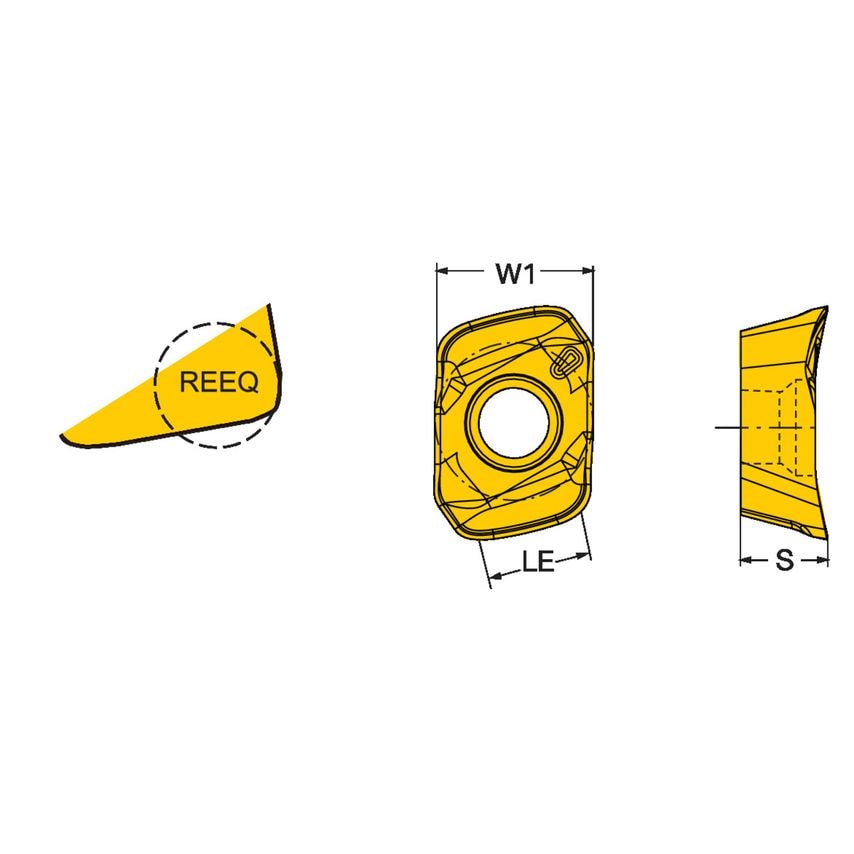

| Insert Size/Shape | CoroMill MH20 -0603 |
| Maximum Cutting Depth | 0.8mm |
| Through Hole Function Property | Yes |
| Grade | 4340 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Shape | Rectangle |
| Fixing Hole Diameter | 2.8mm |
| Weight | 2g |
| Coating Process Type | CVD |
| Face Land Width | 0.19mm |
| Cutting Edge Count | 2 |
| Coating Type | TiCN+Al2O3+TiN |
| CoroPak | 21.2 |
| Insert Rake Angle | 14\u00b0 |
| Insert Mounting Style | Screw/Clamp |
| Hand Preference | Right |
| Maximum Depth of Cut | 0.8mm |
| MFR Part No. | 8029475 |
| Face Land Angle | 1\u00b0 |
| Insert Thickness | 3.42mm |
| Corner Radius | 1.6mm |
| Insert Width | 6.4mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Style | Screw/Clamp |
