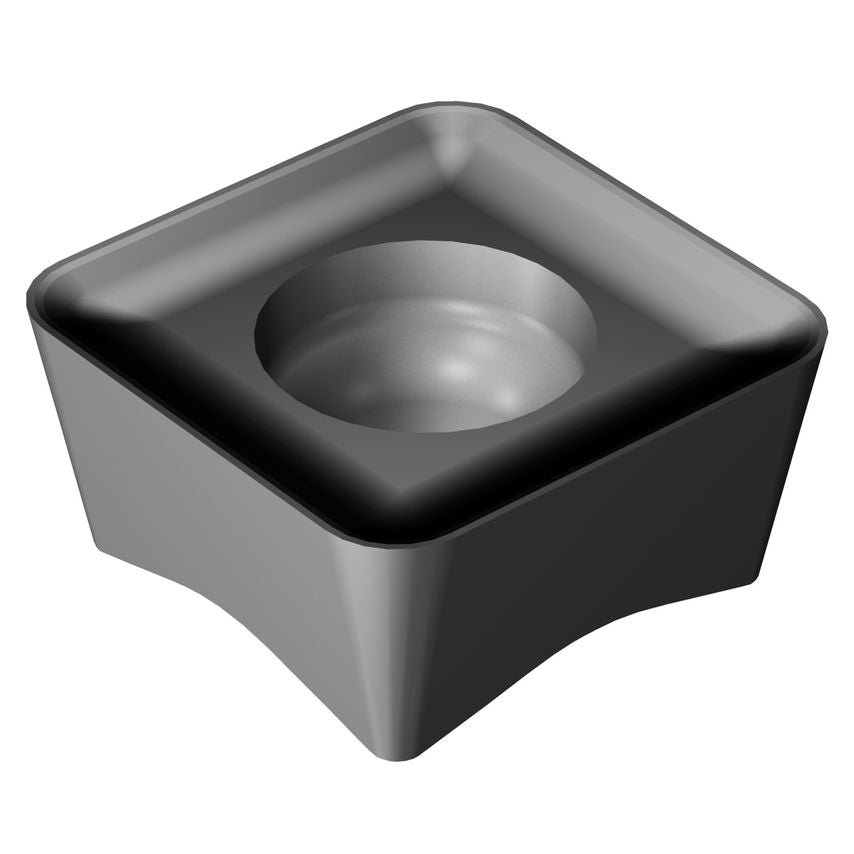

Product Range: CoroMill 415Tool Type: High-feed millingSmall-diameter high feed face milling cutterFeatures & Benefits- Cost-efficient high feed milling in small diameters- 4 cutting edges- Internal coolant- Unique iLock insert seat interface
| Insert Size/Shape | CoroMill 415 -0703 |
| Insert Mounting Style | Screw/Clamp |
| Grade | 1010 |
| Through Hole Function Property | Yes |
| Insert Style | Screw/Clamp |

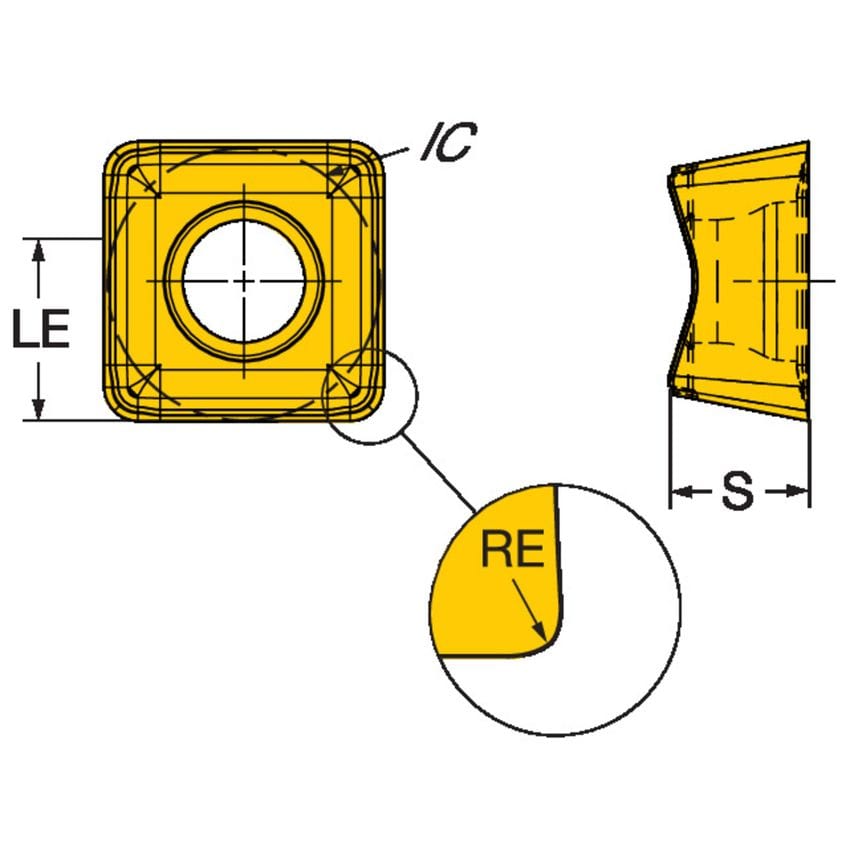

| Inscribed Circle Diameter | 7mm |
| Maximum Cutting Depth | 1.2mm |
| CoroPak | 20.1 |
| Wiper Edge Radius | 2mm |
| Insert Thickness | 3.07mm |
| Finish/Coating | TiAlN |
| Insert Rake Angle | 20\u00b0 |
| Inscribed Circle | 7mm |
| Coating Type | TiAlN |
| Face Land Width | 0.1mm |
| Hand Preference | Neutral |
| Unit Measured | Metric |
| Corner Radius | 2mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 1.2mm |
| Face Land Angle | 5\u00b0 |
| Coating Process Type | PVD |
| MFR Part No. | 7855737 |
| Cutting Edge Count | 4 |
| Insert Shape | Square |
