Clamp-on type. The modular blade allows for high rigidity and accuracy (TriForce System). Various insert types.
00 type holder

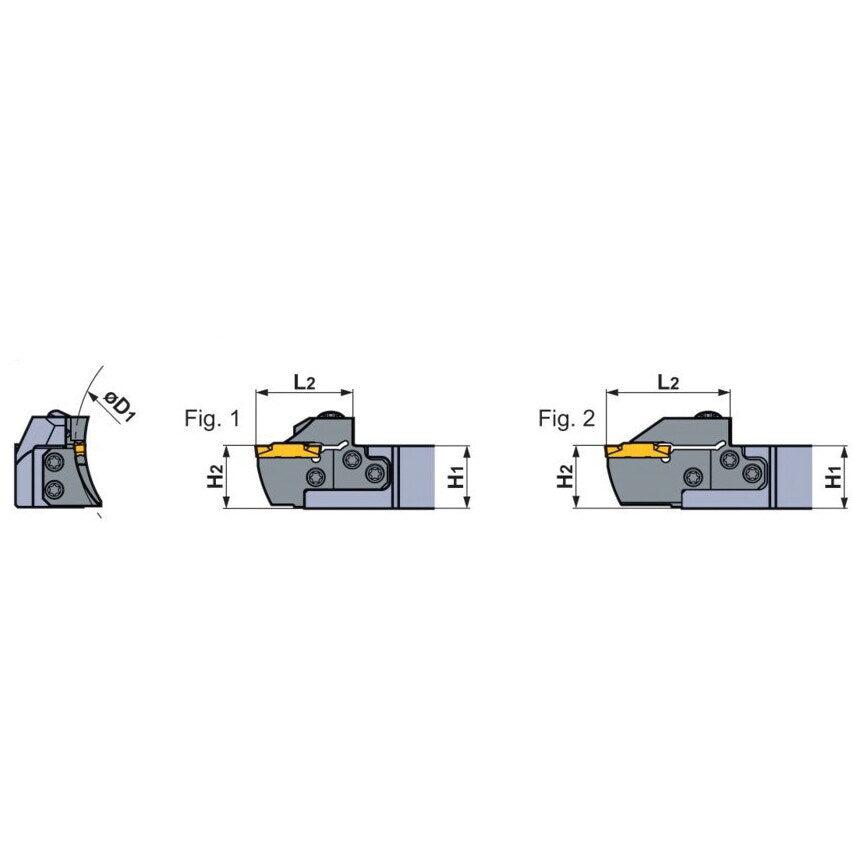

GY Series Right Hand Modular Holder & Blade For 3.00mm Grooving Width
| Blade Type | Modular Blade |
| Cutting Application | Face Grooving |
| Maximum Grooving Depth | 20mm |
| Compatible Modular Toolholder | GHYR2525M00-M25R | GHYR3225P00-M25R | GHYR3232P00-M25R |
| Workpiece Diameter | 150 |
| Maximum Grooving Width | 3mm |
| Compatible Shank Size | 25 |
| ISO Designation | GYM25RD-F20-100 |
| Series | GY |
| MFR Part No. | 90026729 |
| Blade Style | GYM |
| Cutting Direction | Right Hand |
| Seat Size | F |
| Insert Style | GYM2 |
| First Cut Diameter | 100 to 150mm |
