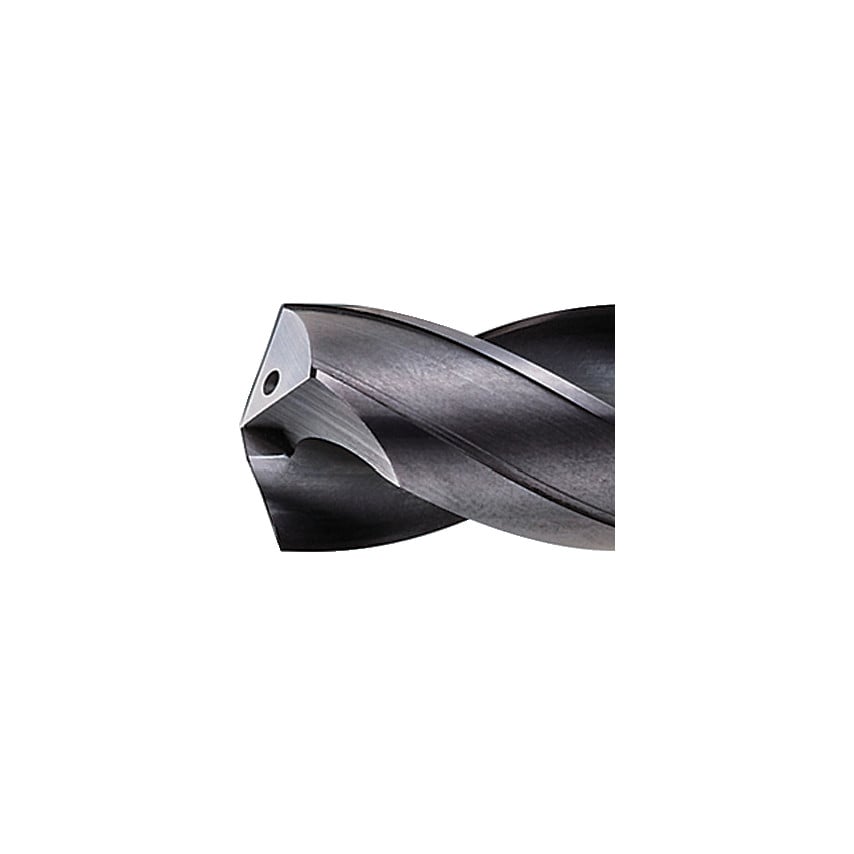

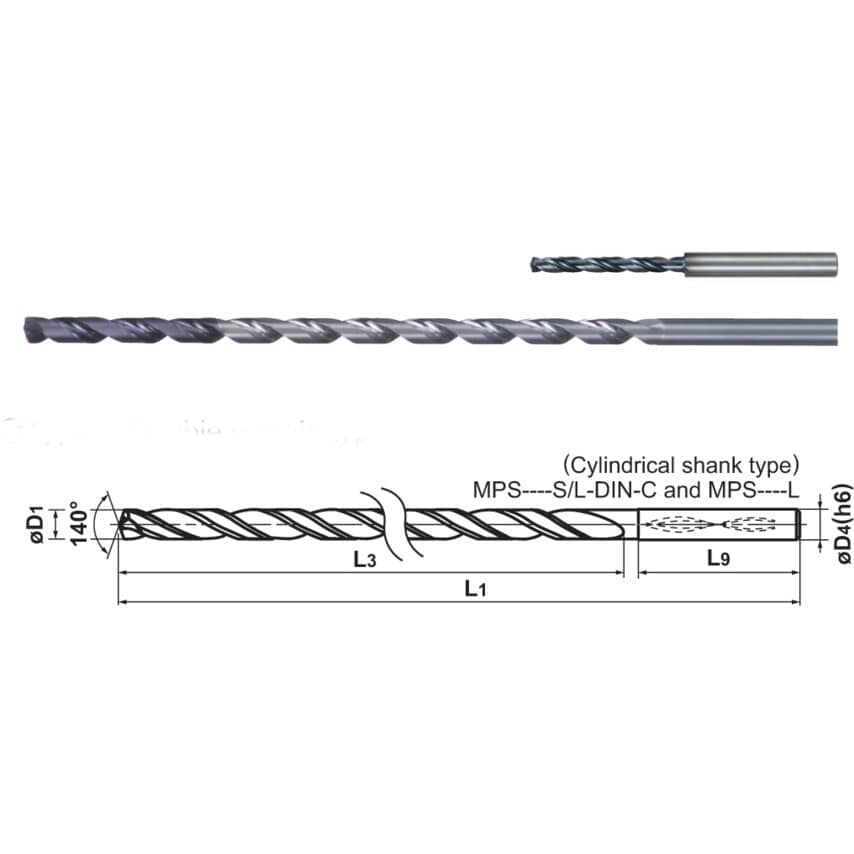

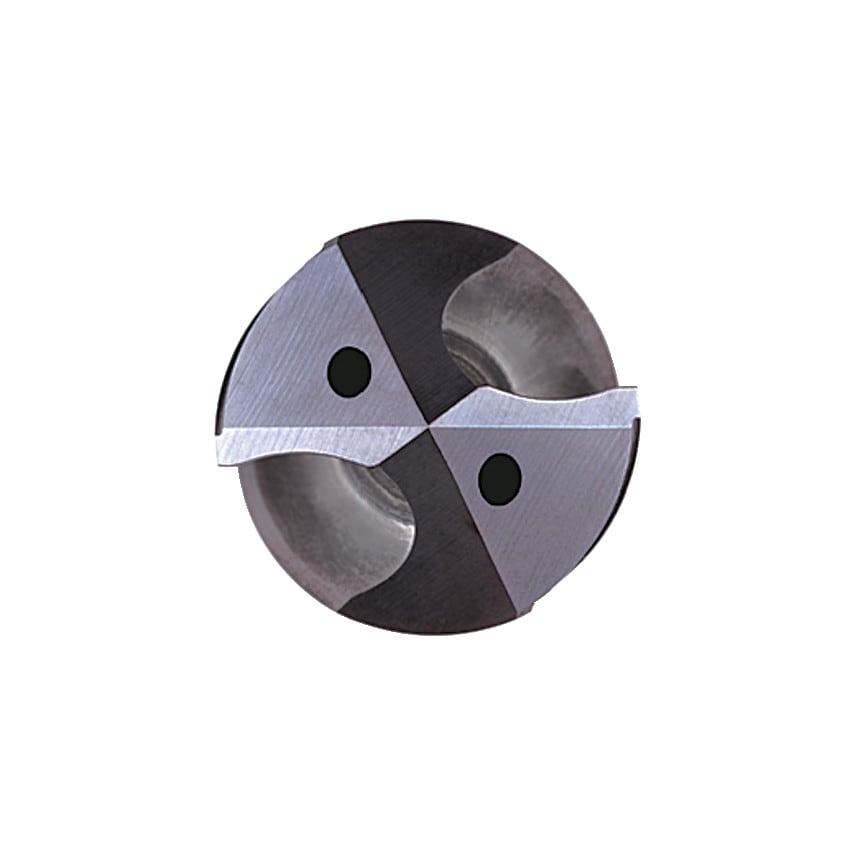

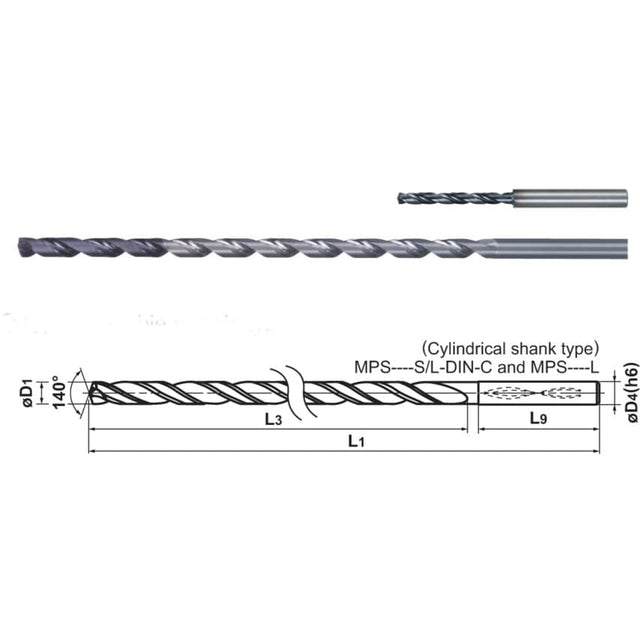

Mitsubishi MPS Carbide Drills are up to 25x faster than high speed steel and have through coolant for effective swarf evacuation. The double margin flute design ensures greater hole accuracy an the VP15TF Miracle coating provides superior tool life.
| Coolant Delivery | Coolant Through |
| Carbide Drill Type | Carbide High Performance |
| Finish/Coating | AITiN |
| Point Angle | 140 |

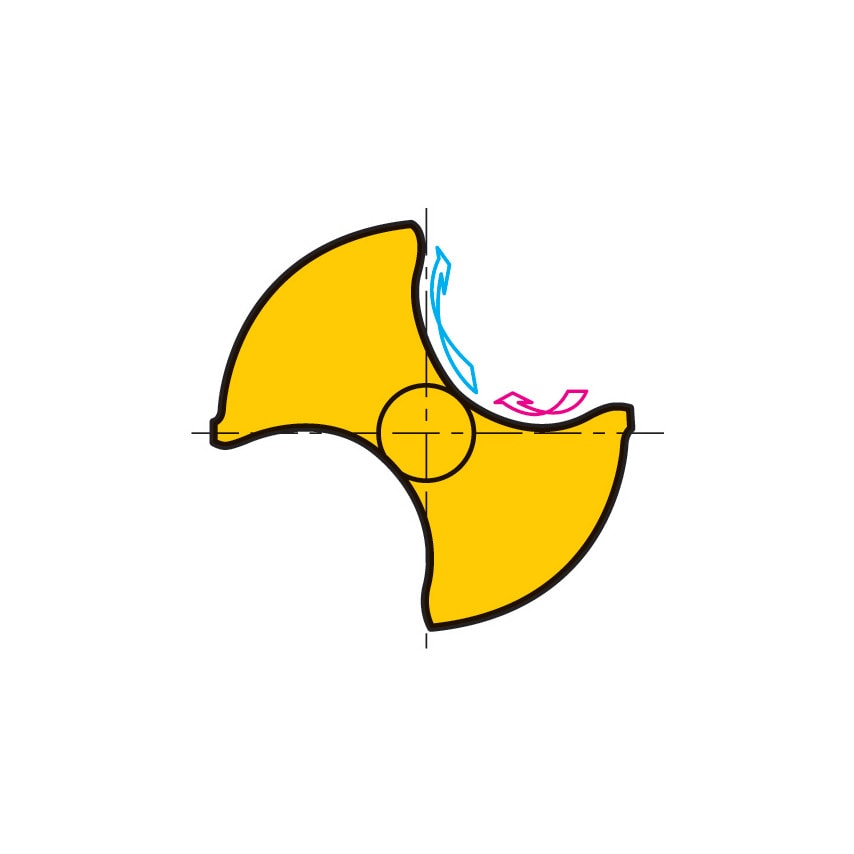

| Flute Type | Spiral |
| MFR Part No. | 90017721 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Drill Diameter Tolerance | H7 |
| Helix Type | Normal Helix |
| Product Type | Carbide Drill |
| Number of Flutes | 2 |
| Shank Diameter | 8mm |
| Flute Length | 114mm |
| ISO Category | K | M | P | S |
| Helix Angle | 30\u00b0 |
| Material | Carbide |
| Standards Met | DIN6535 | DIN6537 |
| Drill Diameter Metric | 7.5mm |
| Series | MPS |
| Diameter x Depth | 12xD |
| Overall Length | 154mm |
| Drill Diameter | 7.5mm |
