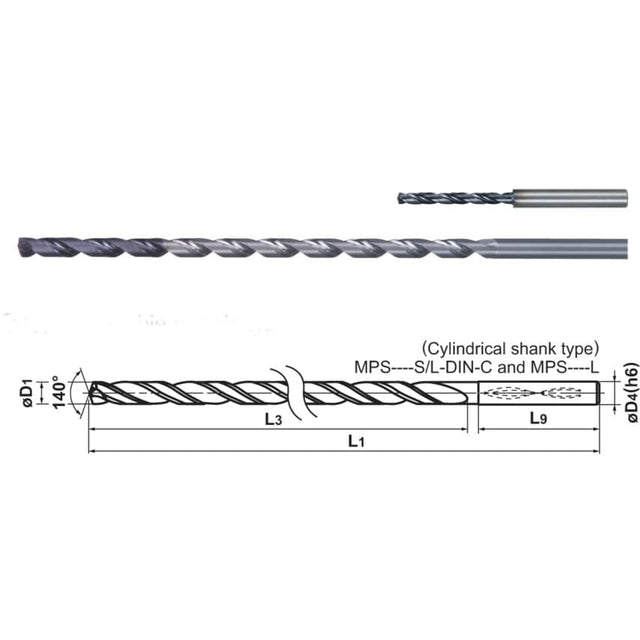

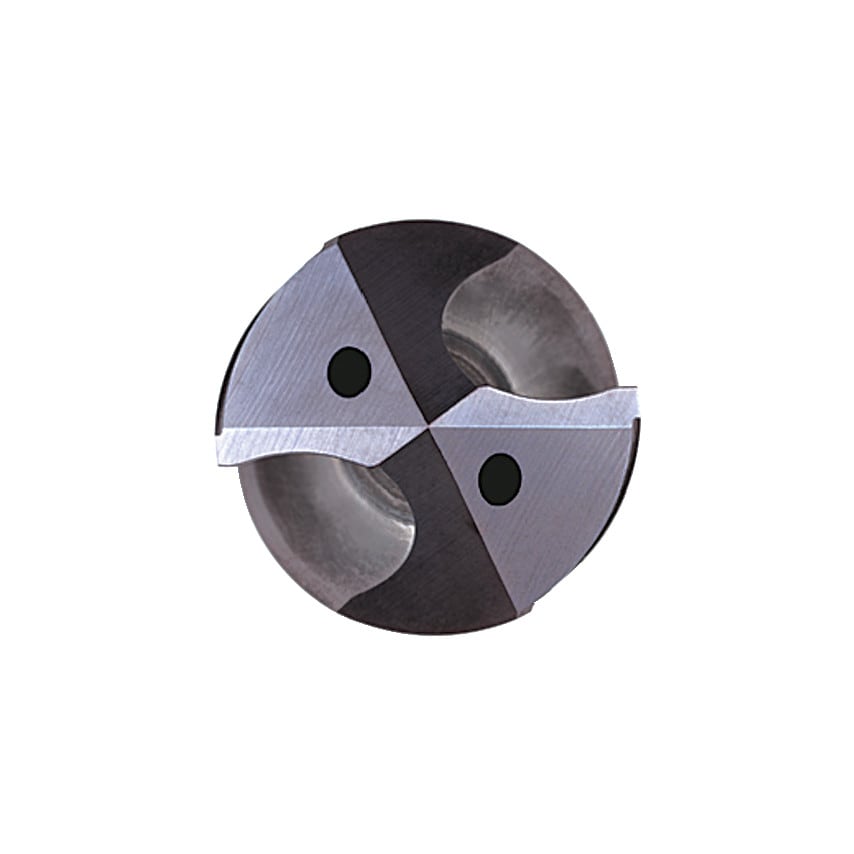

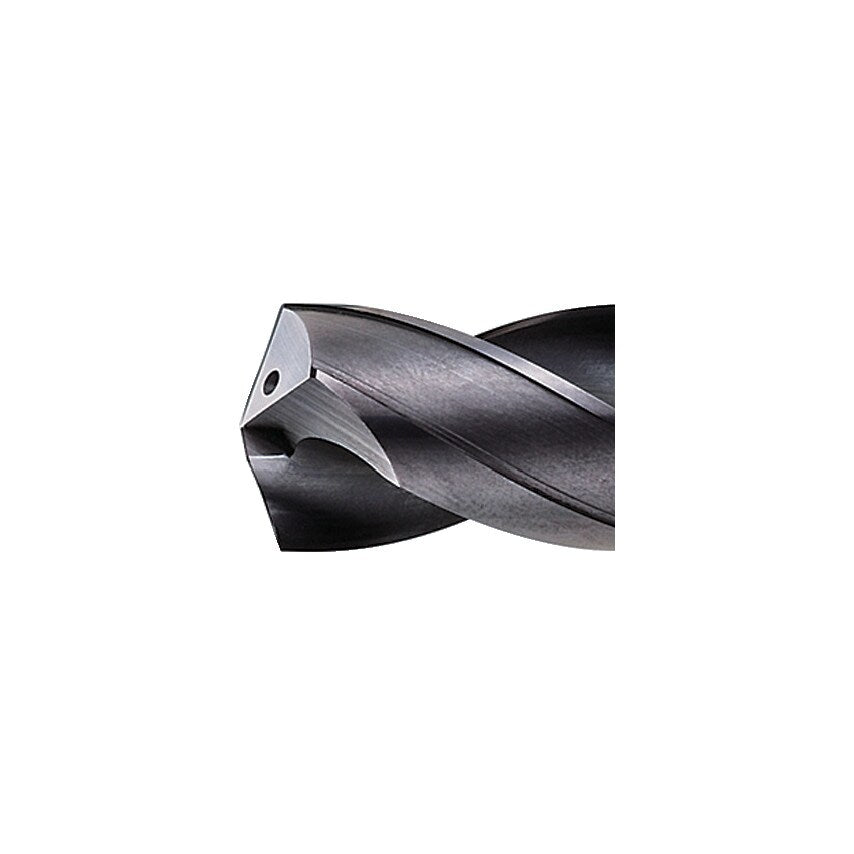

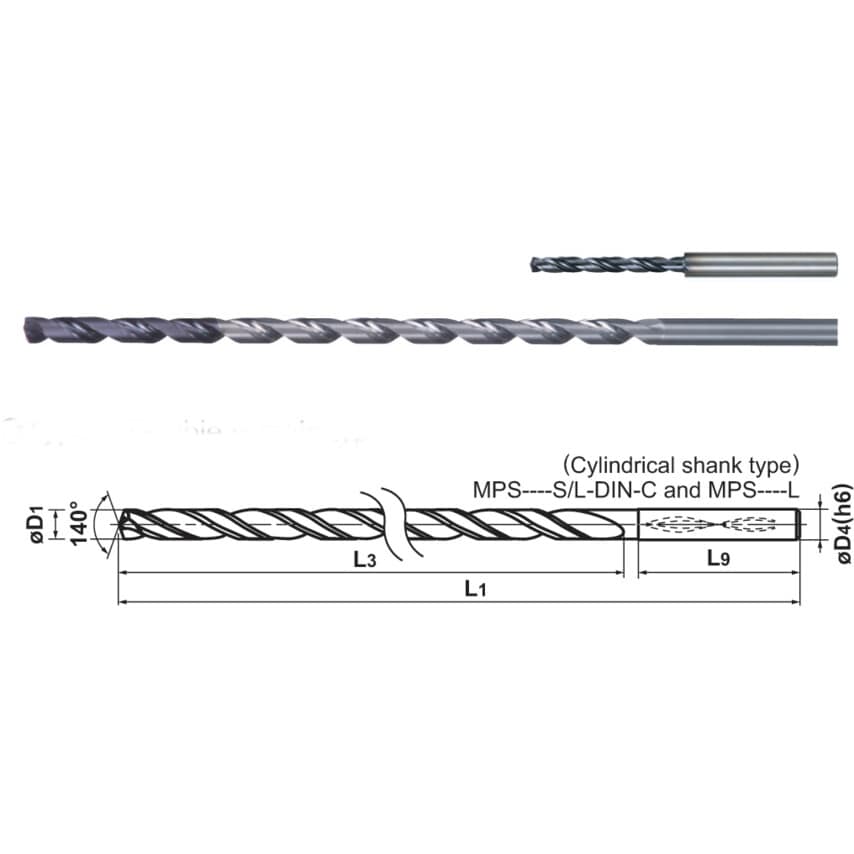

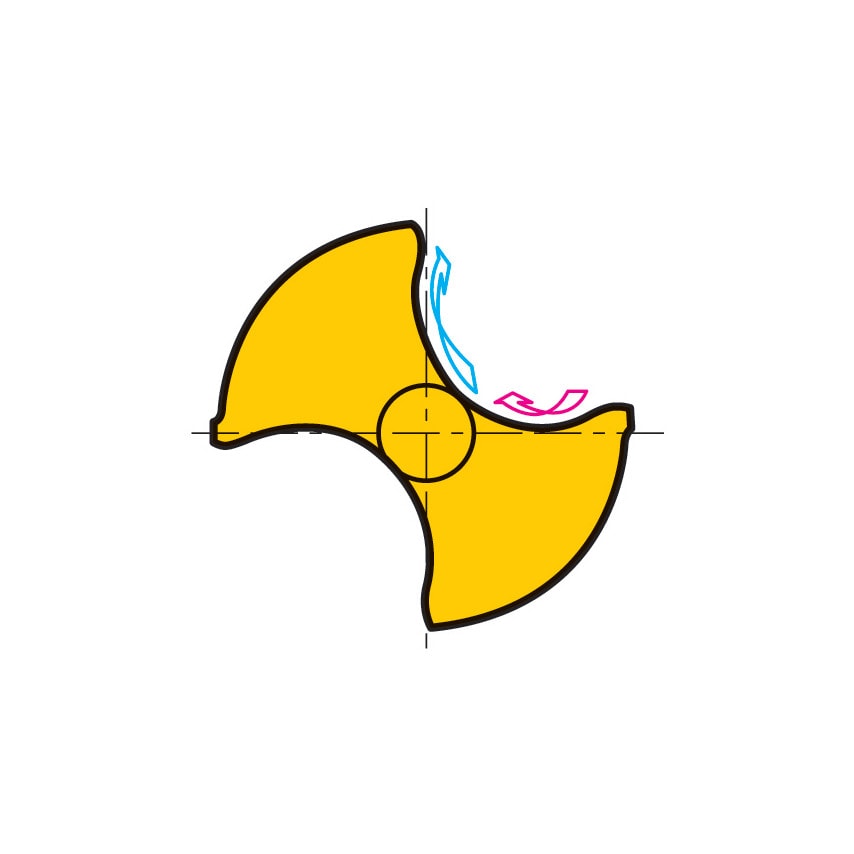

Mitsubishi MPS Carbide Drills are up to 25x faster than high speed steel and have through coolant for effective swarf evacuation. The double margin flute design ensures greater hole accuracy an the VP15TF Miracle coating provides superior tool life.
| Finish/Coating | AITiN |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Diameter x Depth | 12xD |
| ISO Category | K | M | P | S |
| Helix Type | Normal Helix |
| Series | MPS |
| Shank Diameter Tolerance | H6 |
| Drill Diameter Tolerance | H7 |
| Product Type | Carbide Drill |
| Helix Angle | 30\u00b0 |
| Drill Diameter | 4.50mm |
| Overall Length | 109mm |
| Flute Length | 69mm |
| MFR Part No. | 90017377 |
| Coolant Delivery | Coolant Through |
| Number of Flutes | 2 |
| Standards Met | DIN6535 | DIN6537 |
| Flute Type | Spiral |
| Shank Diameter | 6mm |
| Carbide Drill Type | Carbide High Performance |
| Material | Carbide |
| Point Angle | 140\u00b0 |
