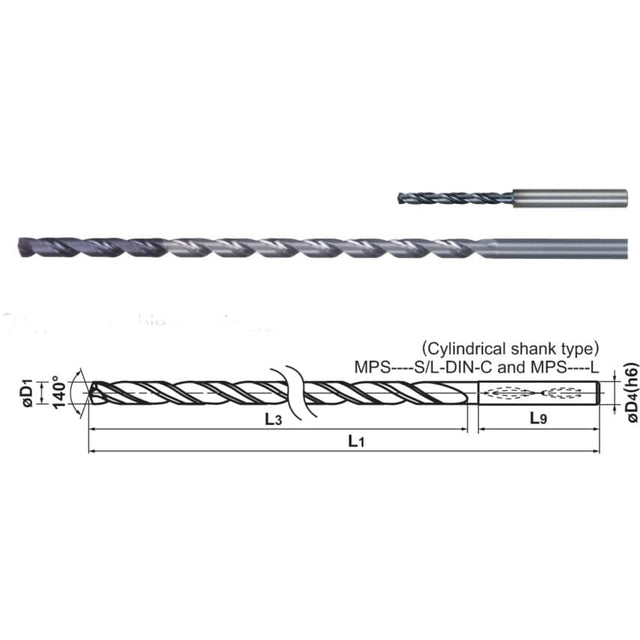

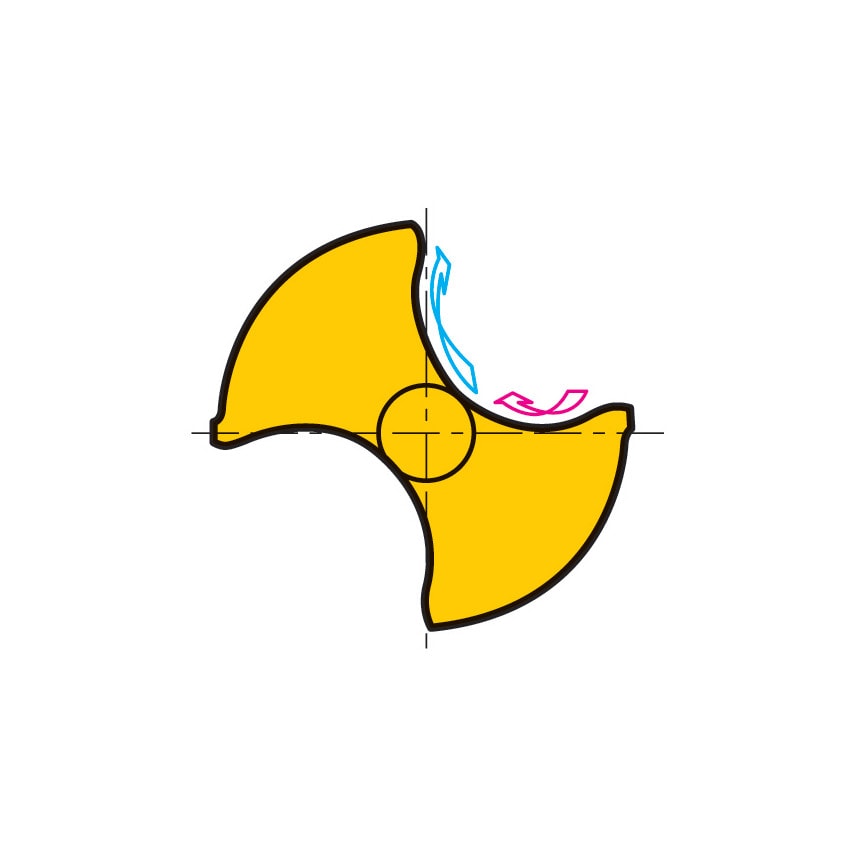

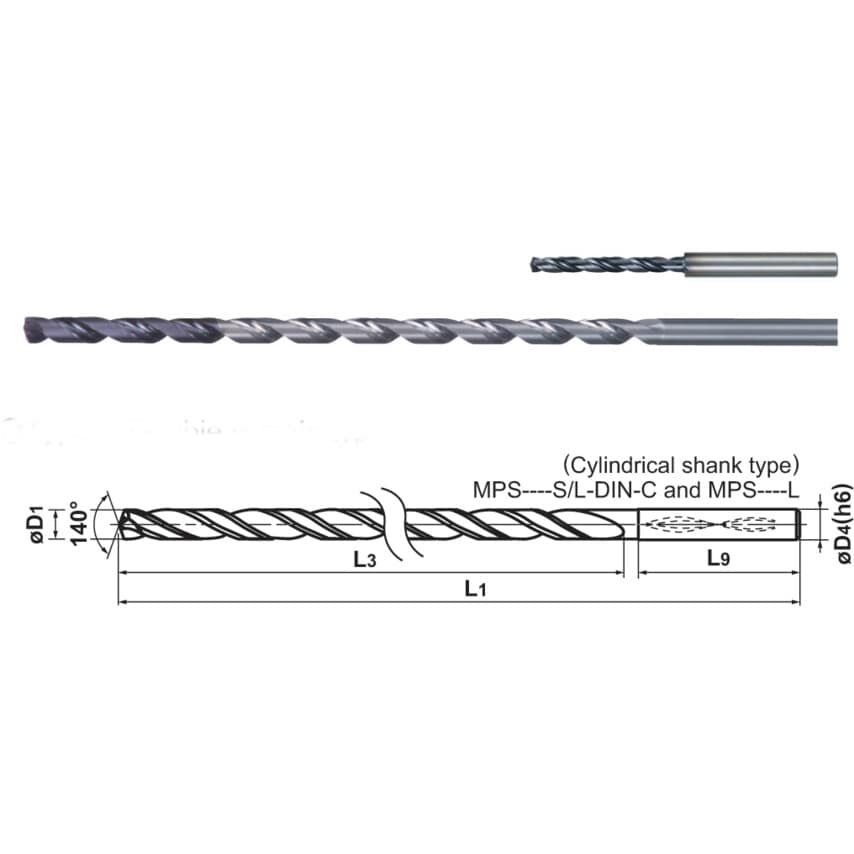

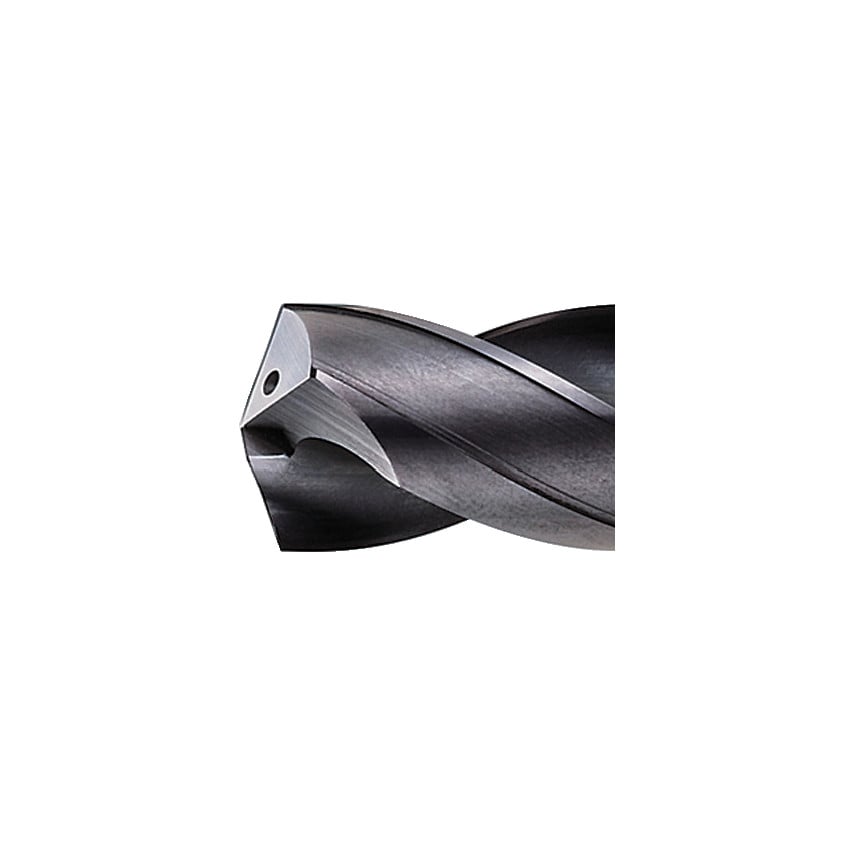

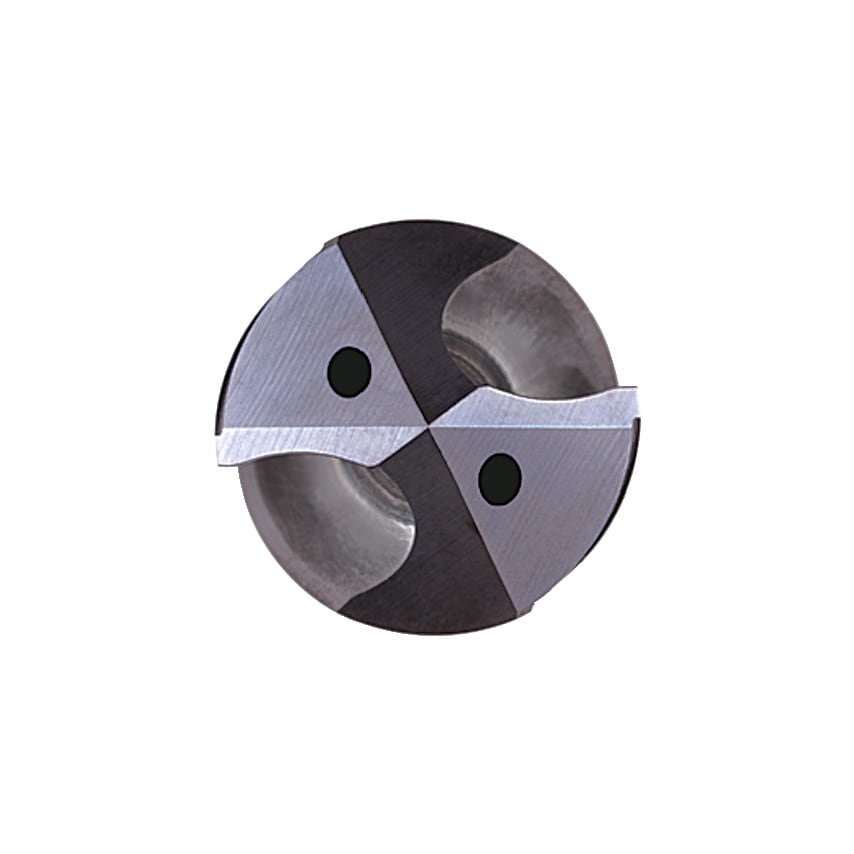

Mitsubishi MPS Carbide Drills are up to 25x faster than high speed steel and have through coolant for effective swarf evacuation. The double margin flute design ensures greater hole accuracy an the VP15TF Miracle coating provides superior tool life.
| Drill Diameter | 11mm |
| Material Grade | Micrograin |
| Point Angle | 140\u00b0 |
| Coolant Delivery | Coolant Through |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| ISO Category | K | M | P | S |
| Drill Diameter Metric | 11mm |
| Product Type | Carbide Drill |
| Drill Diameter Tolerance | H7 |
| Finish/Coating | AITiN |
| Helix Type | Normal Helix |
| Shank Diameter | 12mm |
| Flute Length | 167mm |
| Carbide Drill Type | Carbide High Performance |
| MFR Part No. | 90017940 |
| Diameter x Depth | 12xD |
| Series | MPS |
| Standards Met | DIN6535 | DIN6537 |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Overall Length | 216mm |
| Helix Angle | 30\u00b0 |
