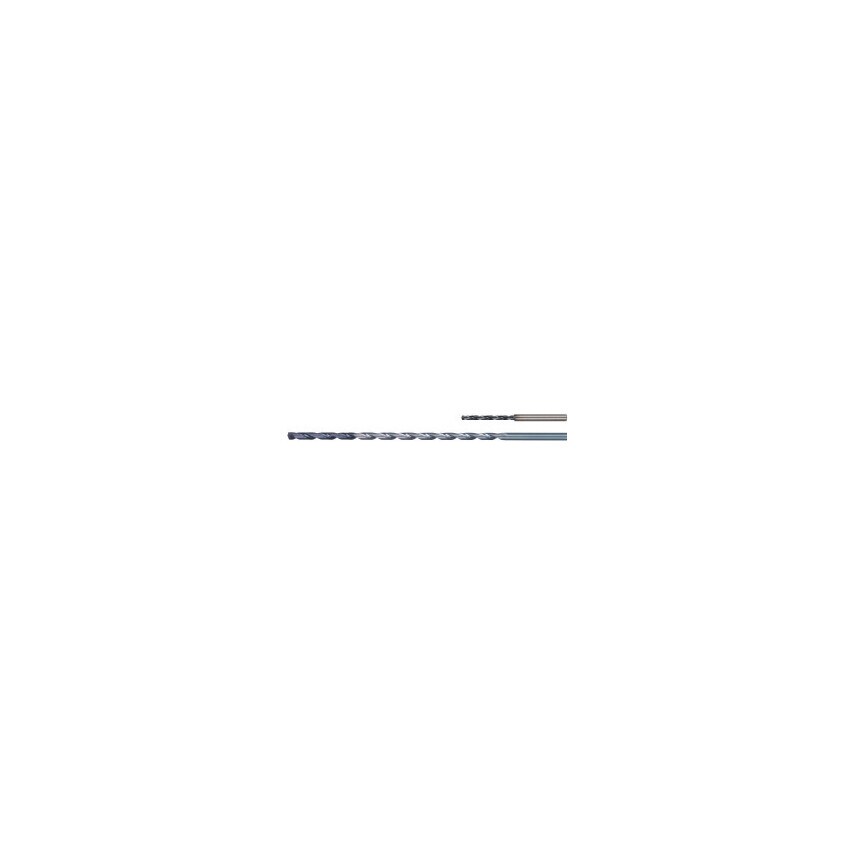

MPS/MSL Solid Carbide Drill
All drills with through coolant holes as standard.
From 3-40 l/d hole depth.
MPS double margin type for accurate and reliable drilling.
| Standards Met | DIN6535 | DIN6537 |
| Drill Diameter Tolerance | H7 |
| Overall Length | 95.9mm |
| Material | Carbide |
| Product Type | Solid Carbide Drill |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | TiAlN |
| Helix Angle | 30\u00b0 |
| Flute Length | 40.9mm |
| Flute Type | Spiral |
| ISO Category | K | M | P | S |
| Cutting Direction | Right Hand |
| Carbide Drill Type | Carbide High Performance |
| Material Grade | Micrograin |
| Diameter x Depth | 8xD |
| Helix Type | Normal Helix |
| MFR Part No. | 90017546 |
| Series | MPS |
| Drill Diameter | 5mm |
| Number of Flutes | 2 |
| Shank Diameter | 6mm |
| Coolant Delivery | Coolant Through |
| Drill Diameter Metric | 5mm |
| Point Angle | 140\u00b0 |
