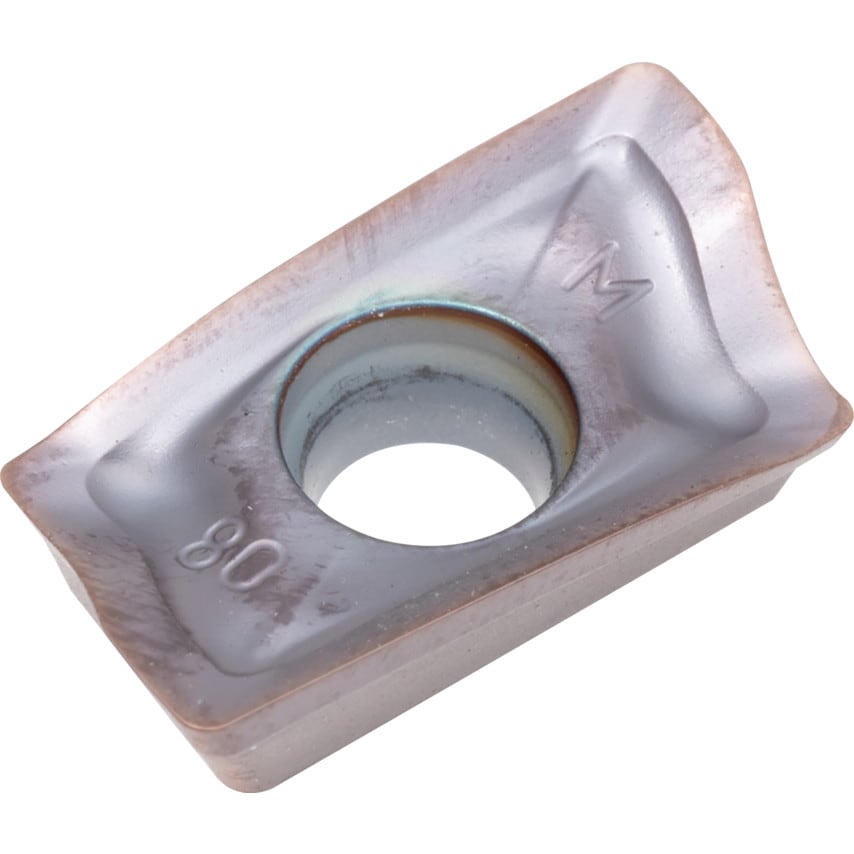

AOMT Milling Inserts
Mitsubishi APX4000 Milling inserts have been developed using advanced simulation technology to produce a new 15mm insert is suitable for larger depths of cut. The new insert is also thicker and therefore ideal for high load machining they are also:
Efficient when machining on low rigidity machines or work pieces and they are ideal for thin wall or extended reach applications.
They have efficient heat disposal and chip control, heat generated during cutting has been reduced due to the APX's special geometry. Ideal chip shape formed by the insert for easy disposal.
Insert Grades
VP15TF (P15-P35/M15-M35/ K15-K30) - PVD ''Miracle'' Coated Milling/Drilling Grade. Offers increased heat resistance and adhesion strength. For all Steels, Cast Irons and some Stainless Steel
| Chipbreaker | M |
| Material | Carbide |
| ISO Cut | K15 to K30 | M15 to M35 | P15 to P35 |
| Pack Quantity | 1 |
| Insert Size | 1848 |
| Manufacturer Grade | VP15TF |
| Corner Radius | 0.8 |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Thickness | 4.8mm |
| Cutting Direction | Right Hand |
| Insert Style | AOMT |
| Finish/Coating | AlTiN |
| Shape | 85\u00b0 Parallelogram |
| ISO Designation | AOMT 184808 PEER-M |
| Cutting Edge Length | 18mm |
| MFR Part No. | AOMT184808PEERM |
| Clearance Angle | 15\u00b0 |
| ISO Category Grade | K | M | P |
