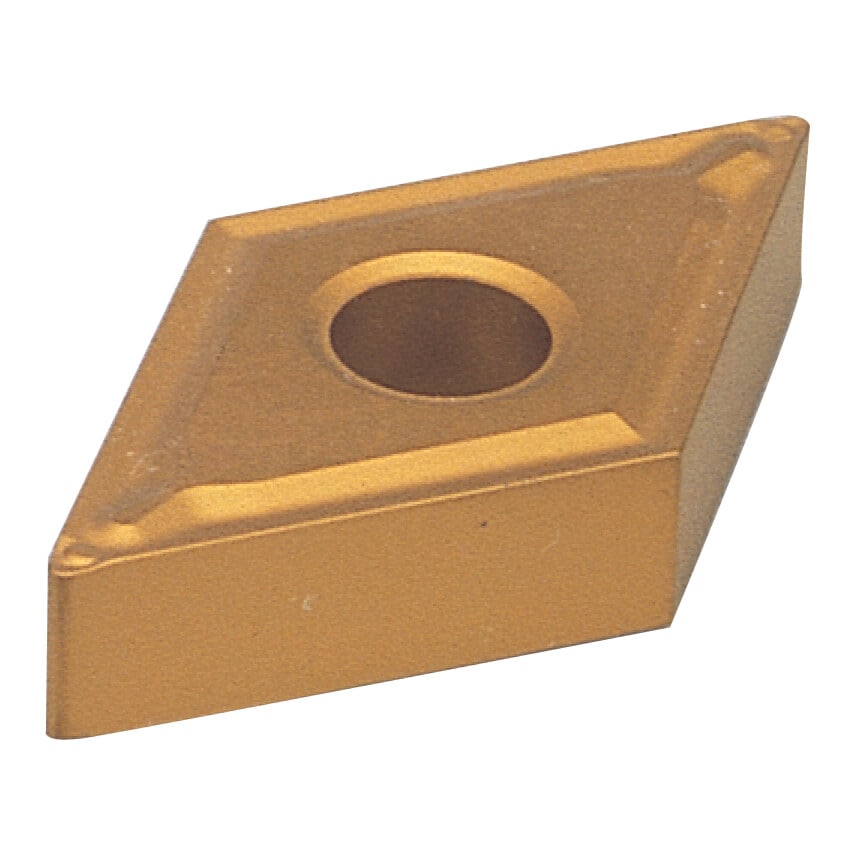

DNMG Turning Inserts
55 Rhombic Insert
MC7015 - ISO M05 - M15 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| Chipbreaker | RM |
| Insert Style | DNMG |
| ISO Cut | M05 to M15 |
| Inscribed Circle | 12.7mm |
| Insert Size | 150408 |
| ISO Category | M |
| Pack Quantity | 1 |
| ISO Category Grade | M |
| Cutting Edge Length | 15mm |
| Material | Carbide |
| Manufacturer Grade | MC7015 |
| Shape | 55\u00b0 Rhombic |
| ISO Designation | DNMG 150408-RM |
| Finish/Coating | Al2O3+TiCN+TiC |
| Product Type | Inserts |
| MFR Part No. | 90031483 |
| Thickness | 4.76mm |
| Material Application | Stainless Steels |
| Clearance Angle | 0\u00b0 |
| Cutting Direction | Neutral |
| Corner Radius | 0.8 |
