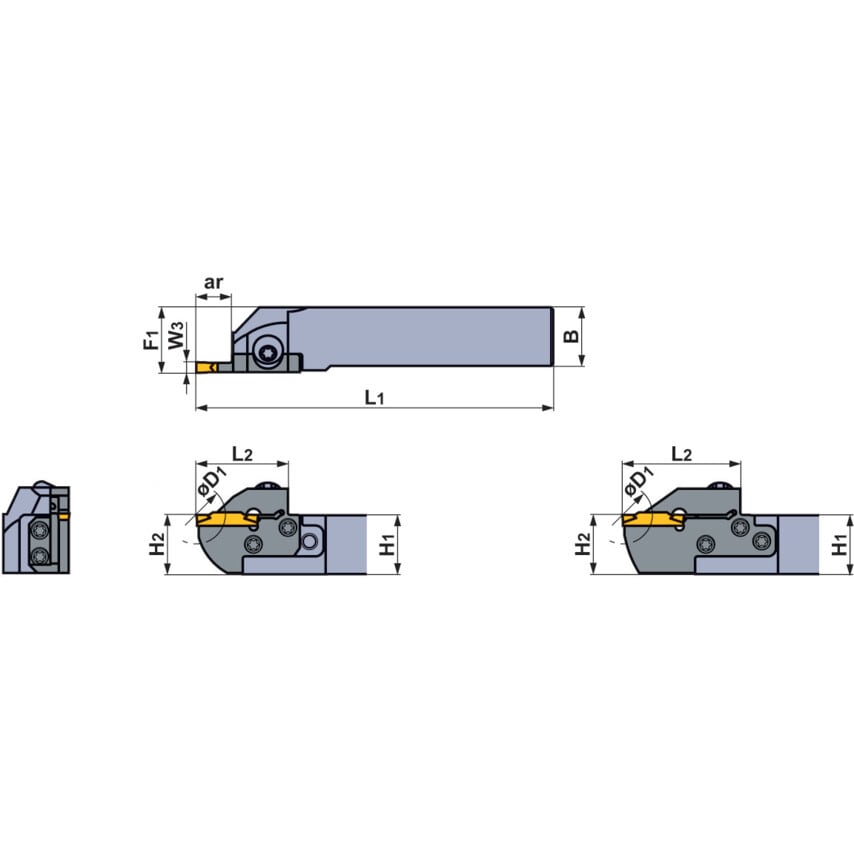

GY Series Right Hand Modular Holders - 90 Type
GY Series Modular Holder For 3.00mm Grooving Width
GY Series Modular Holder For 4.00mm Grooving Width
| Maximum Grooving Depth | 6mm |
| Head Length | 30mm |
| Seat Size | F |
| ISO Designation | GYAR20Q90A-F06 |
| Cutting Height | 18mm |
| Series | GY |
| Toolholder Style | GYAR |
| Insert Style | GY1G | GY2G | GY2M |
| Shank Diameter | 20mm |
| Coolant Delivery | Coolant Through |
| Cutting Direction | Right Hand |
| Maximum Grooving Width | 3mm |
| MFR Part No. | 90023408 |
| Cutting Application | Grooving |
| Modular Toolholder | Holder for Modular Blade |
| Overall Length | 180mm |
| Insert Holding Type | Screw-On |
| Workpiece Diameter | 25 |
| Minimum Grooving Width | 3mm |
| Centre to Cutting Tip | 14.5mm |
| Minimum Bore Diameter | 25mm |
