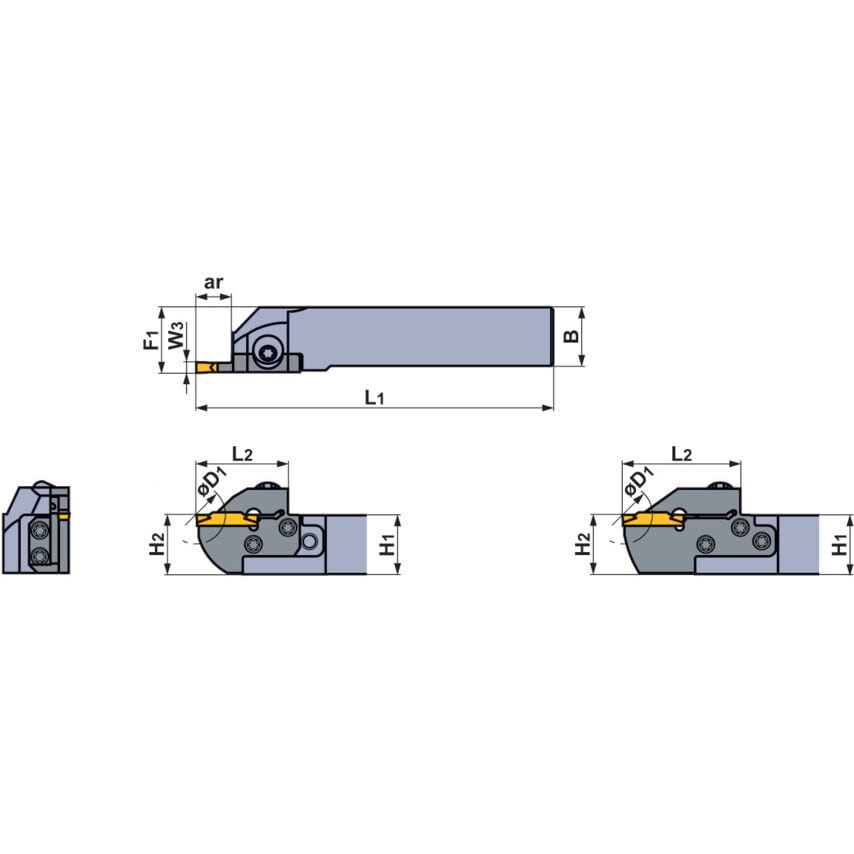

GY Series Right Hand Modular Holders - 90 Type
GY Series Modular Holder For 3.00mm Grooving Width
GY Series Modular Holder For 4.00mm Grooving Width
| Insert Holding Type | Screw-On |
| Insert Style | GY1G | GY2G | GY2M |
| Cutting Height | 23mm |
| Workpiece Diameter | 32 |
| Seat Size | F |
| Cutting Application | Grooving |
| Centre to Cutting Tip | 19mm |
| Toolholder Style | GYAR |
| Minimum Grooving Width | 3mm |
| Maximum Grooving Width | 3mm |
| Overall Length | 125mm |
| Series | GY |
| Cutting Direction | Right Hand |
| ISO Designation | GYAR25K90B-F06 |
| Shank Diameter | 25mm |
| MFR Part No. | 90023411 |
| Minimum Bore Diameter | 32mm |
| Coolant Delivery | Coolant Through |
| Head Length | 40mm |
| Maximum Grooving Depth | 6mm |
| Modular Toolholder | Holder for Modular Blade |
