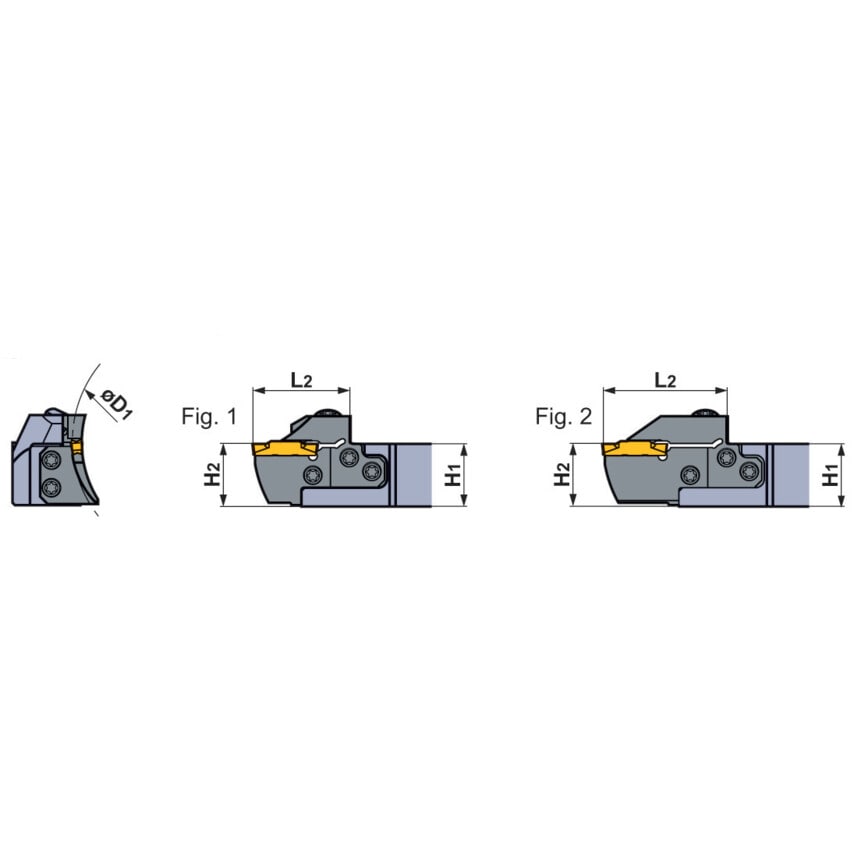

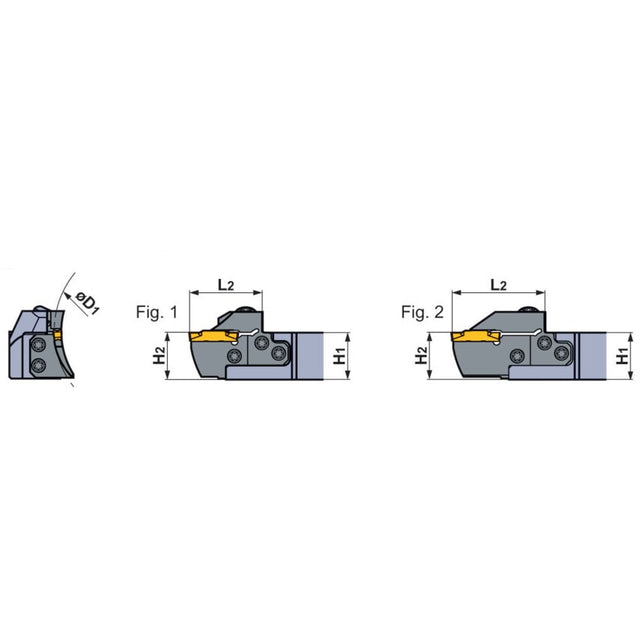

GY Series Right Hand Modular Holder & Blade For 4.00mm Grooving Width
When machining wide face grooves, select a modular blade suitable for the maximum diameter and machine from the outer diameter towards the centre.
When machining toward the centre, there is no restriction on the cutting diameter.
| MFR Part No. | 90026732 |
| Maximum Grooving Width | 4mm |
| Seat Size | G |
| Maximum Grooving Depth | 14mm |
| Workpiece Diameter | 50 |
| Insert Style | GYM2 |
| Series | GY |
| Cutting Direction | Right Hand |
| ISO Designation | GYM25RD-G14-040 |
| First Cut Diameter | 40 to 50mm |
| Blade Type | Modular Blade |
| Compatible Shank Size | 25 |
| Blade Style | GYM |
| Cutting Application | Face Grooving |
| Compatible Modular Toolholder | GYHL2525M90-M25R | GYHR2020K00-M25R | GYHR2525M00-M25R | GYHR3225P00-MS5R | GYHR3232P00-M25R |
