Clamp-on type. The modular blade allows for high rigidity and accuracy (TriForce System). Various insert types.
00 type holder

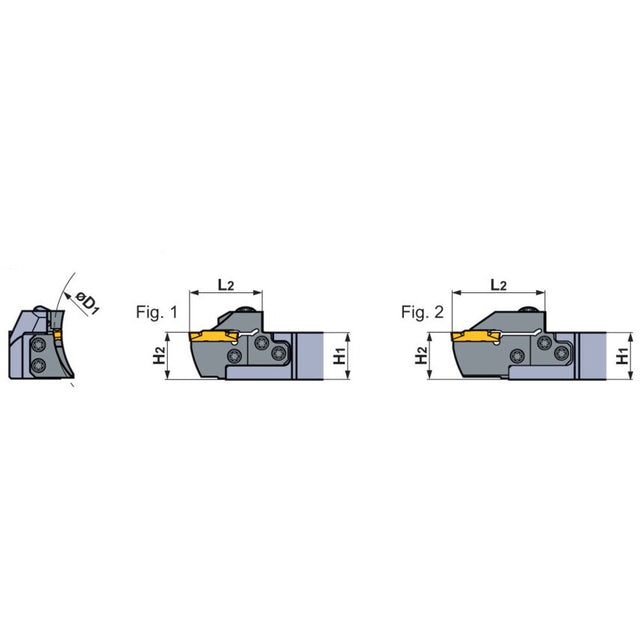

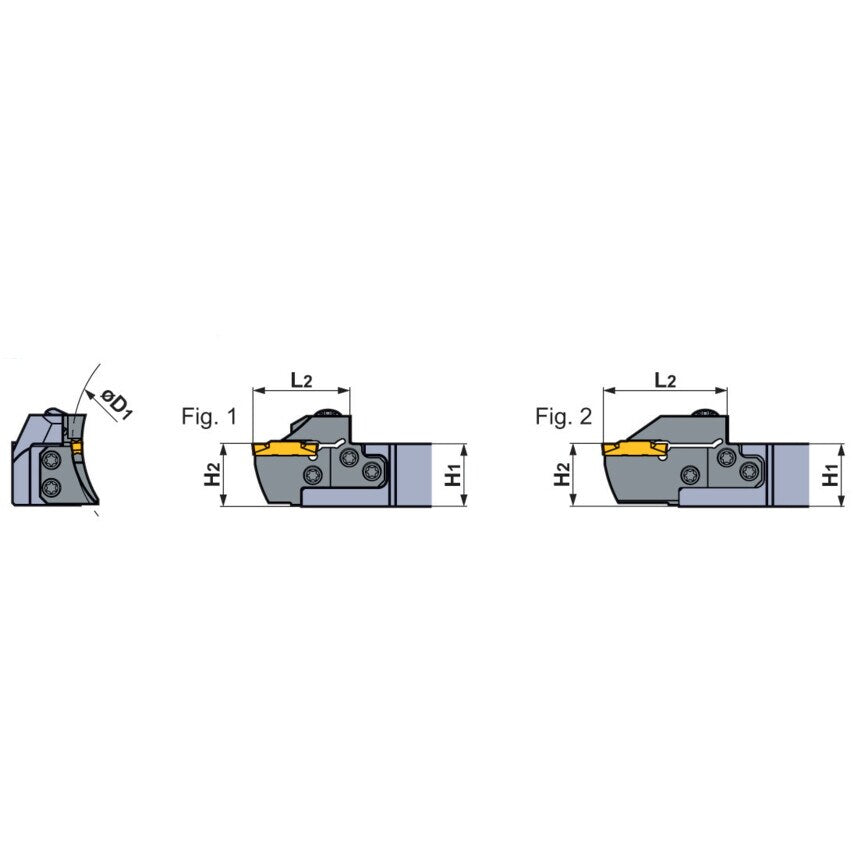

GY Series Right Hand Modular Holder & Blade For 3.00mm Grooving Width
| Series | GY |
| First Cut Diameter | 60 to 75mm |
| Seat Size | F |
| Compatible Modular Toolholder | GHYR2020K00-M25R | GHYR2525M00-M25R | GHYR3225P00-M25R | GHYR3232P00-M25R |
| Insert Style | GYM2 |
| Compatible Shank Size | 25 |
| ISO Designation | GYM25RD-F20-060 |
| Maximum Grooving Width | 3mm |
| Cutting Application | Face Grooving |
| Maximum Grooving Depth | 20mm |
| MFR Part No. | 90026727 |
| Blade Style | GYM |
| Workpiece Diameter | 75 |
| Blade Type | Modular Blade |
| Cutting Direction | Right Hand |
