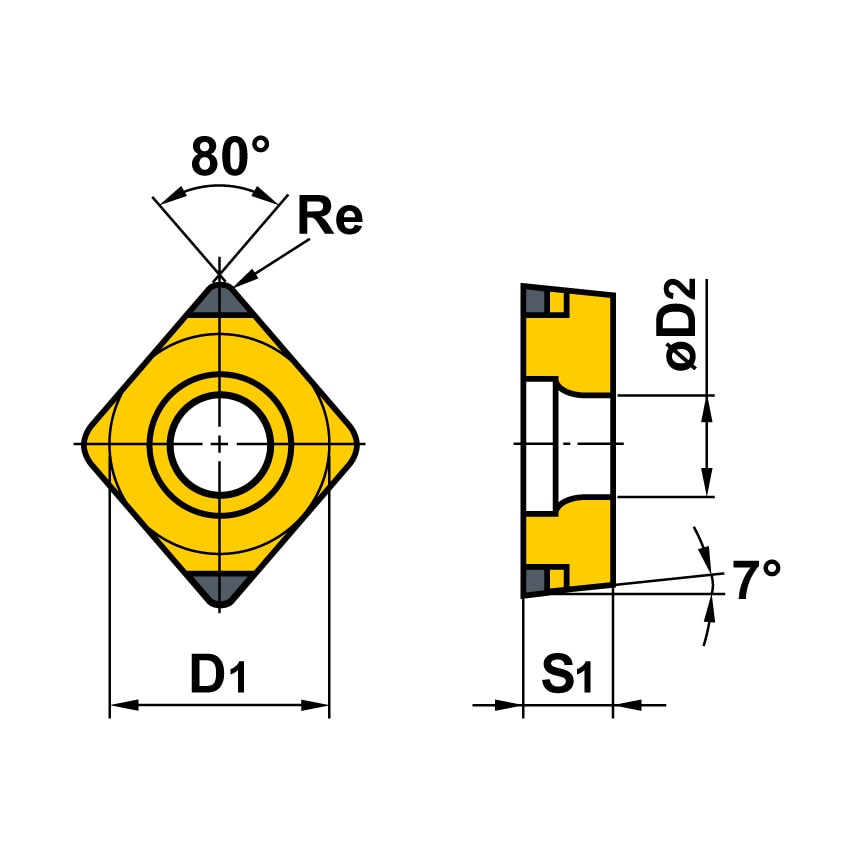

CCMT 80 rhombic turning inserts MC7025 - ISO M20 - M30 CVD coated grade for high efficiency turning of austenitic stainless steels. 7 positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range.
Features and Benefits
Positive rake, low cutting forces
Excellent wear resistance in high speed cutting conditions
TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance
Specially engineered carbide substrate provides excellent resistance to plastic deformation
Typical Applications
Used for a wide range of materials, including soft and exotic alloys
Specifically designed for 300 series stainless steel applications
| Material Application | Exotic Alloys |
| MFR Part No. | 90032727 |
| Chipbreaker | MM |
| Clearance Angle | 7\u00b0 |
| Insert Size | 09T308 |
| Insert Style | CCMT |
| Material | Carbide |
| Corner Radius | 0.8 |
| Manufacturer Grade | MC7025 |
| Shape | 80\u00b0 Rhombic |
| ISO Designation | CCMT09T308-MM |
