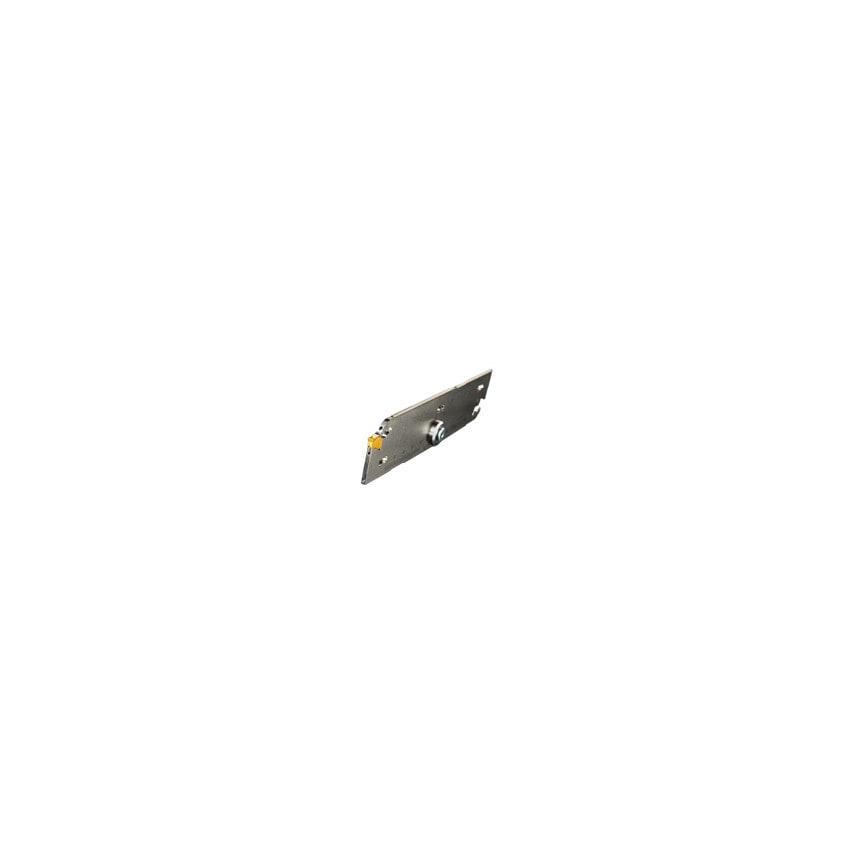

GW - Grooving Blades
Easy insert indexing with a one action movement of the wrench.
Simple insert clamping method offering high rigidity.
Possible to use with both external or through coolant.
Groove Depth CW 2.05.0mm
Suitable for various set ups improving tool handling - A scale marked on the blade makes it easier to set the correct overhang length.

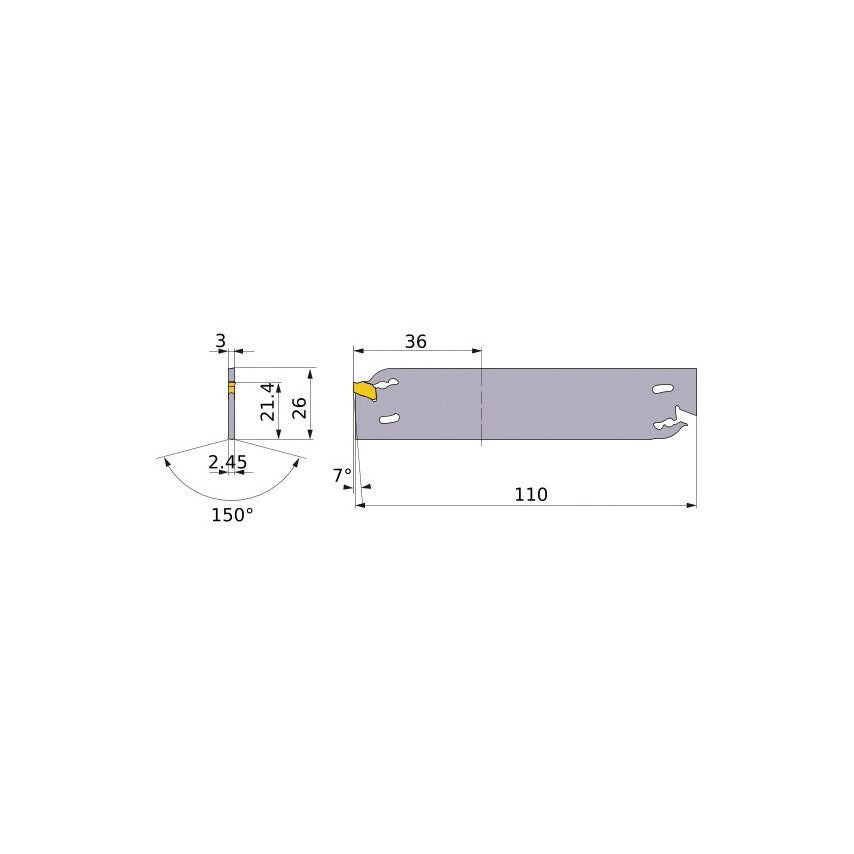

| Blade Width | 2mm |
| Cutting Direction | Neutral |
| Seat Size | 3.0mm |
| ISO Designation | GWB26NA2-F36 |
| MFR Part No. | 90045223 |
| Cutting Height | 21.4mm |
| Maximum Grooving Depth | 36mm |
| Blade Height | 26mm |
| Blade Length | 110mm |
| Cutting Application | Grooving |
| Series | GW |
