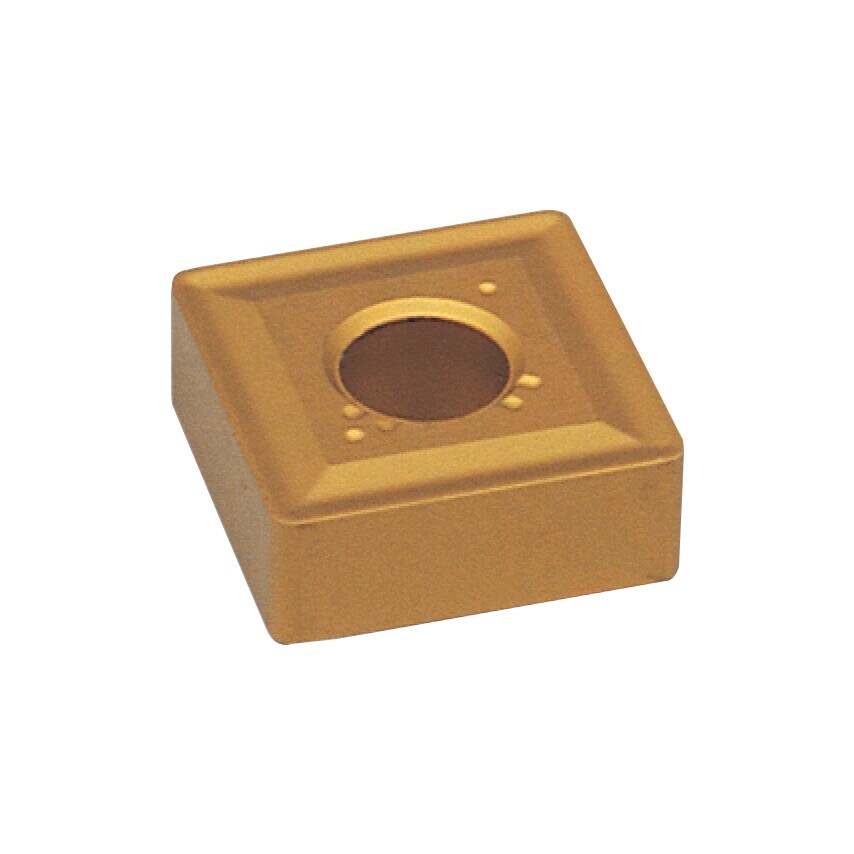

SNMG Turning Inserts
Square Insert
MC7025 - ISO M20 - M30 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| Insert Size | 1506 |
| ISO Designation | SNMG 150616-MM |
| ISO Category | M |
| ISO Category Grade | M |
| Insert Style | SNMG |
| Finish/Coating | Al2O3/TiCN |
| Inscribed Circle | 15.87mm |
| Cutting Direction | Neutral |
| Material Application | Stainless Steels |
| Chipbreaker | MM |
| Manufacturer Grade | MC7025 |
| Shape | Square |
| ISO Cut | M20 to M30 |
| Material | Carbide |
| Thickness | 6.35mm |
| Corner Radius | 1.6 |
| Cutting Edge Length | 15.87mm |
