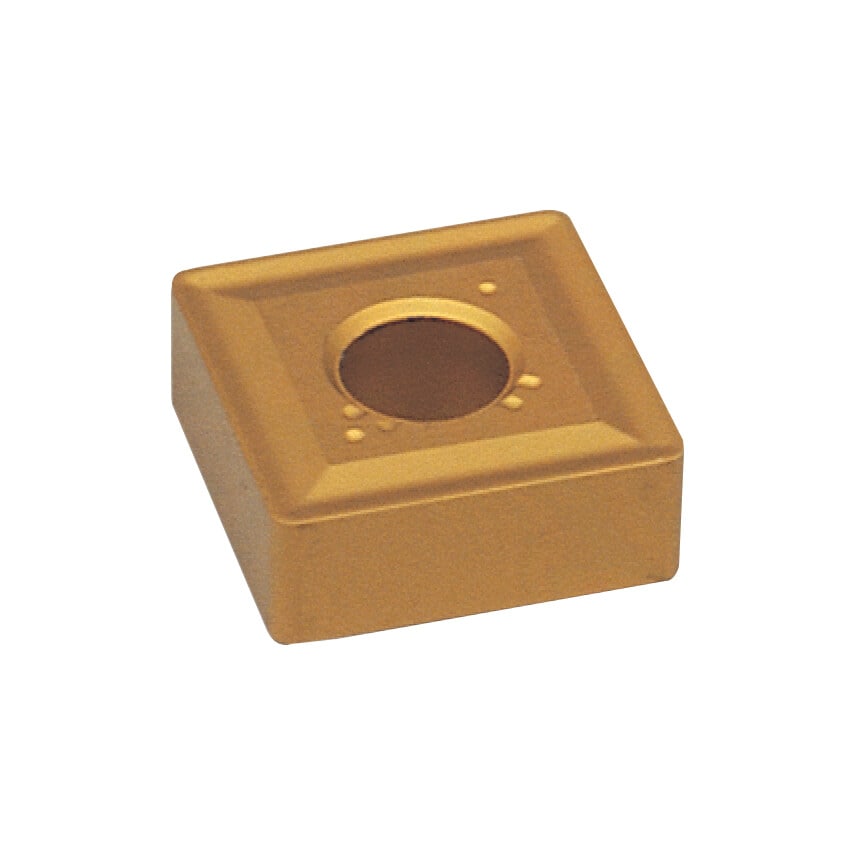

SNMG Turning Inserts
Square Insert
MC7025 - ISO M20 - M30 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| ISO Category | M |
| ISO Designation | SNMG 120412-MM |
| Chipbreaker | MM |
| Corner Radius | 1.2 |
| Shape | Square |
| ISO Cut | M20 to M30 |
| Finish/Coating | Al2O3/TiCN |
| Thickness | 4.76mm |
| Material | Carbide |
| Inscribed Circle | 12.7mm |
| Insert Style | SNMG |
| Material Application | Stainless Steels |
| Cutting Direction | Neutral |
| Manufacturer Grade | MC7025 |
| Insert Size | 1204 |
| ISO Category Grade | M |
| Cutting Edge Length | 12.7mm |
