CCMT Turning Inserts

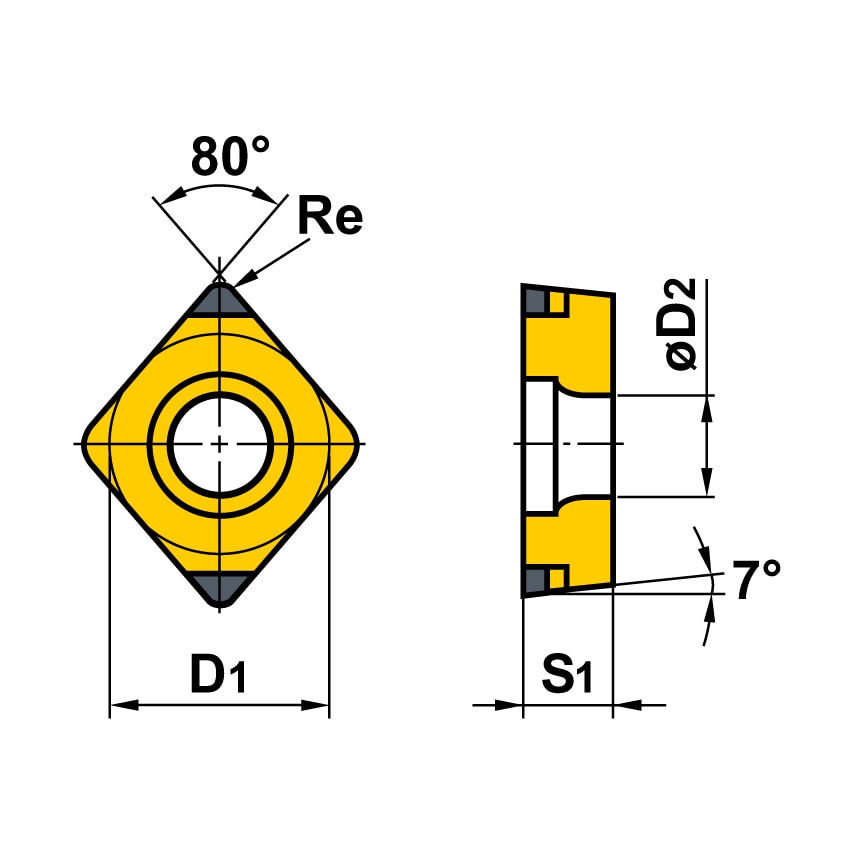

80 Rhombic Insert
7 positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
MC7025 - ISO M20 - M30 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| Clearance Angle | 7\u00b0 |
| Shape | 80\u00b0 Rhombic |
| Manufacturer Grade | MC7025 |
| Material | Carbide |
| ISO Designation | CCMT 060204-LM |
| Insert Size | 60204 |
| Material Application | Exotic Alloys |
| MFR Part No. | 90032720 |
| Insert Style | CCMT |
| Corner Radius | 0.4 |
