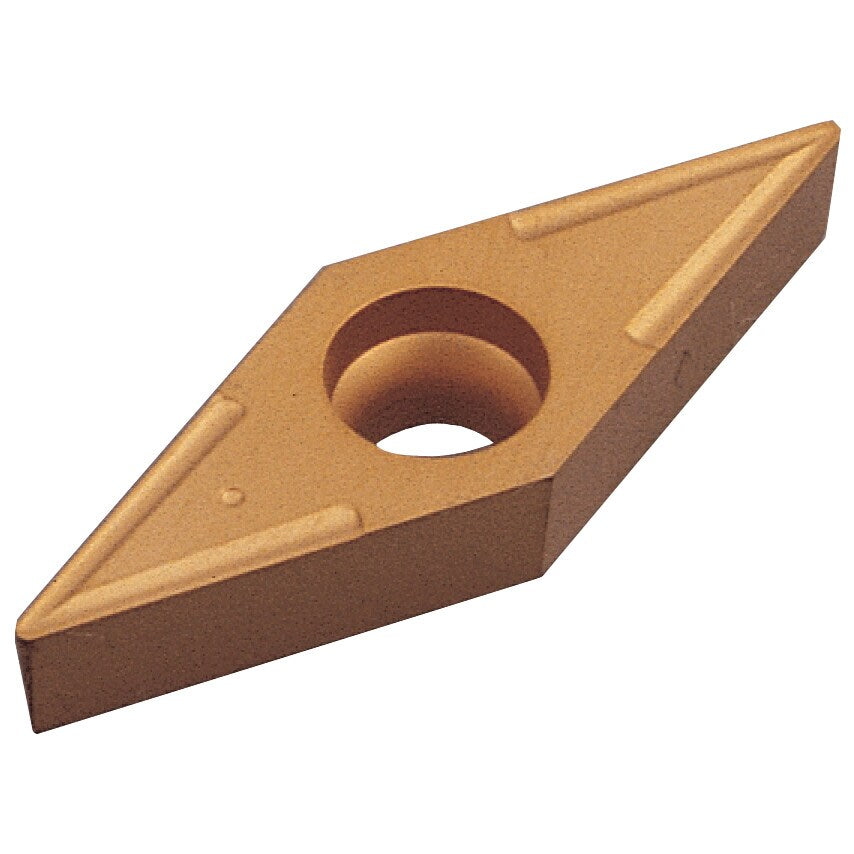

VCMT 160404-MP Insert Grade MC6025

VCMT Turning Inserts 35 Rhombic Insert MC6025 - ISO P15 - P25 2-in-1 technology provides excellent heat and wear resistancewhich helps prevent crater wear. The smooth coating layer combined with microscopic TiCN coating ensures better surface finish and long, consistent tool life. Suitable for high speed and high ffficiency machining Chipbreaker MV - Medium cutting of carbon, alloy steel and stainless. A positive insert with a large rake angle achieves sharp cutting edge performance. Double breakers and round dots in the rake face achieve a wide range of chip discharge. Depth of cut: 0.3 - 2.0 Feed rate: 0.08 - 0.30 * General

Clearance Angle	7\u00b0
ISO Designation	VCMT 160404-MP
Manufacturer Grade	MC6025
Material	Carbide
Material Application	Steels
ISO Cut	P15 to P25
Cutting Direction	Neutral
Corner Radius	0.4
Inscribed Circle	9.53mm
Chipbreaker	MP
ISO Category Grade	P
ISO Category	P
Shape	35\u00b0 Rhombic
Insert Size	1604
Finish/Coating	TiCN
Thickness	4.76mm
Insert Style	VCMT
Cutting Edge Length	16.6mm
