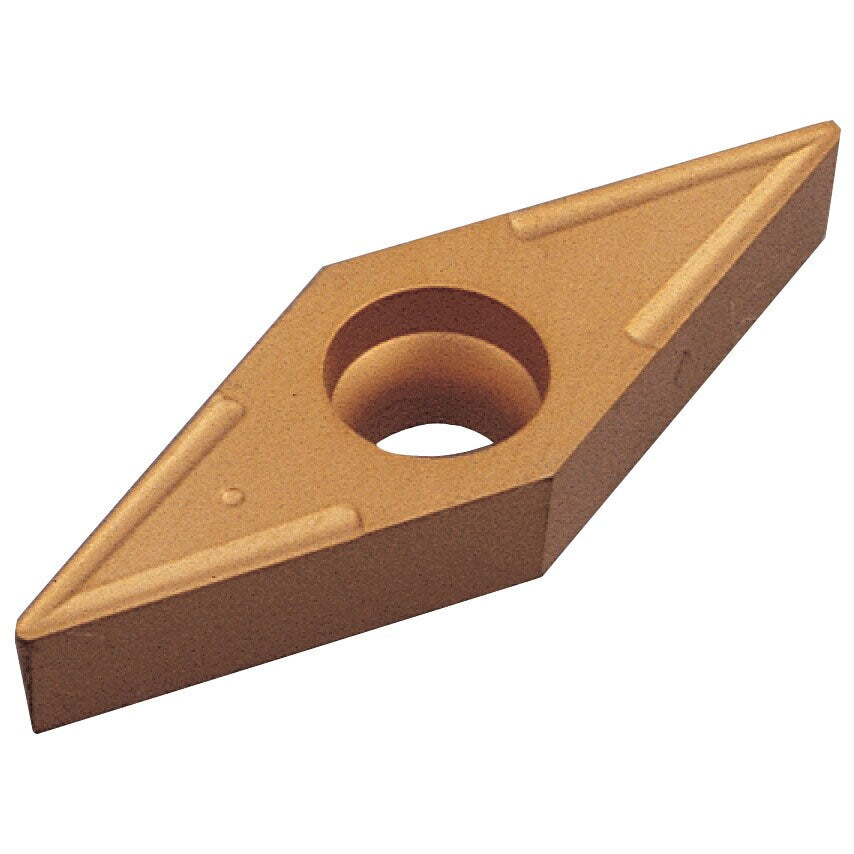

VCMT Turning Inserts
35 Rhombic Insert
MC6025 - ISO P15 - P25 2-in-1 technology provides excellent heat and wear resistancewhich helps prevent crater wear. The smooth coating layer combined with microscopic TiCN coating ensures better surface finish and long, consistent tool life. Suitable for high speed and high ffficiency machining
Chipbreaker
MV - Medium cutting of carbon, alloy steel and stainless. A positive insert with a large rake angle achieves sharp cutting edge performance. Double breakers and round dots in the rake face achieve a wide range of chip discharge.
Depth of cut: 0.3 - 2.0
Feed rate: 0.08 - 0.30
* General
| Material | Carbide |
| Clearance Angle | 7\u00b0 |
| ISO Cut | P15 to P25 |
| Thickness | 4.76mm |
| Insert Size | 160404 |
| Inscribed Circle | 9.53mm |
| Finish/Coating | TiCN |
| Corner Radius | 0.4 |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.6mm |
| Chipbreaker | LP |
| ISO Category | P |
| ISO Category Grade | P |
| Material Application | Steels |
| ISO Designation | VCMT 160404-LP |
| Insert Style | VCMT |
| Manufacturer Grade | MC6025 |
| MFR Part No. | 90032709 |
| Shape | 35\u00b0 Rhombic |
