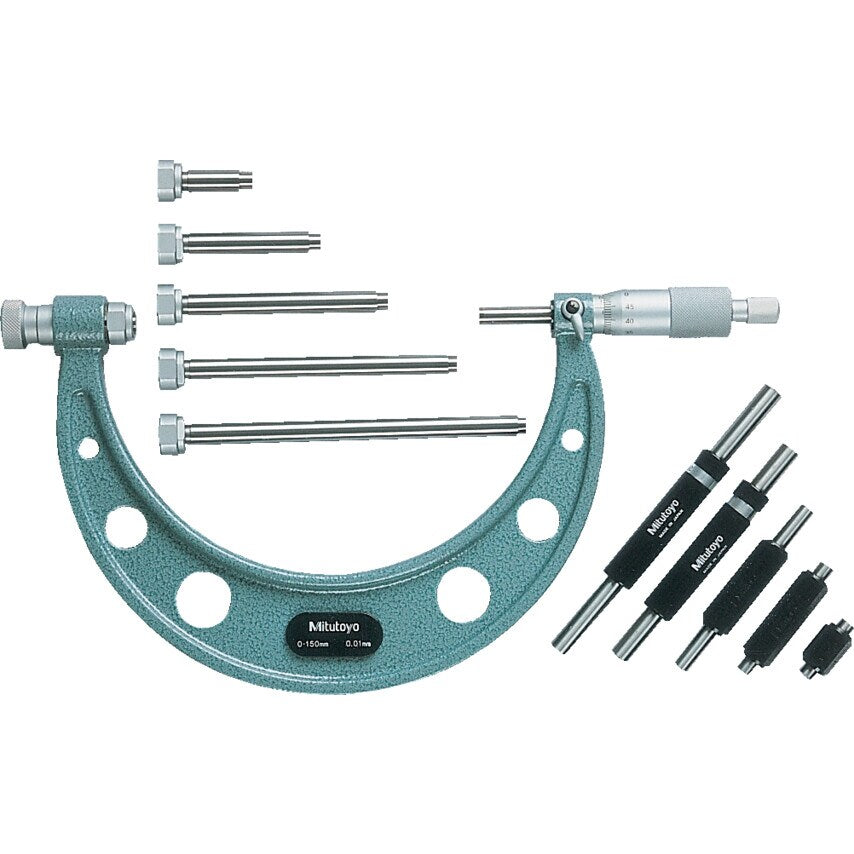

With one-piece carbide tip spindle and interchangeable hardened anvils with ground threads. Micro-lapped anvil and spindle faces, perforated frame with enamel finish. Supplied with standards, ratchet stop, positive locking clamp and supplied in a wooden or plastic (depending on size) storage case.
Accuracy:
Flatness: 0.6mm up to 300mm.
1.0mm up to 300 - 1000mm.
Parallelism: (2+L/100)mm (fraction rounded down).
Instrument error: (4+L/75)mm (fraction rounded up).
L = maximum measuring length.
Metric
| Measuring Range | 500 - 600mm |
| Tip Material | Carbide |
| Additional Features | Supplied with Setting Standards for Each Range | Wide Measuring Range with Interchangeable Anvils | With Ratchet Stop for Constant Force |
| Weight Each | 6350g |
| Measurement Range | 500-600mm |
| MFR Part No. | 104-144A |
| Graduations | 0.010mm |
| Includes | Box | Gauge Blocks | Inserts | Keys |
| System of Measurement | Metric |
| Finish | Enamel |
| Accuracy | +/-0.0012mm |
