Counterbores H with a diameter of 50mm and larger are all made with a driving lip. These sizes should be used in the appropriate type M toolholder.
Dimensions (mm) WHV
The WHV Rotatip counterbore should always be used combined with type R or RS roller pilots. The shank of the holder must not be smaller than MT3.
D: 20-38; d: 14.0; d1: 6.0; d2min: 7.6; L: 48.0; L1: 28.0.
| Material | Carbide |
| Series | WHV |
| Standards Met | ISO9001; ISO14001 |
| Cutting Diameter | 23mm |
| Tool Type | Counterbore |
| Material Grade | PK40 |
| Shank Type | Straight |
| Overall Length | 48mm |
| MFR Part No. | 7393906467255 |
| Part Number | 1WHV-23.0 |
| Finish/Coating | TiN |
| Shank Diameter | 14mm |

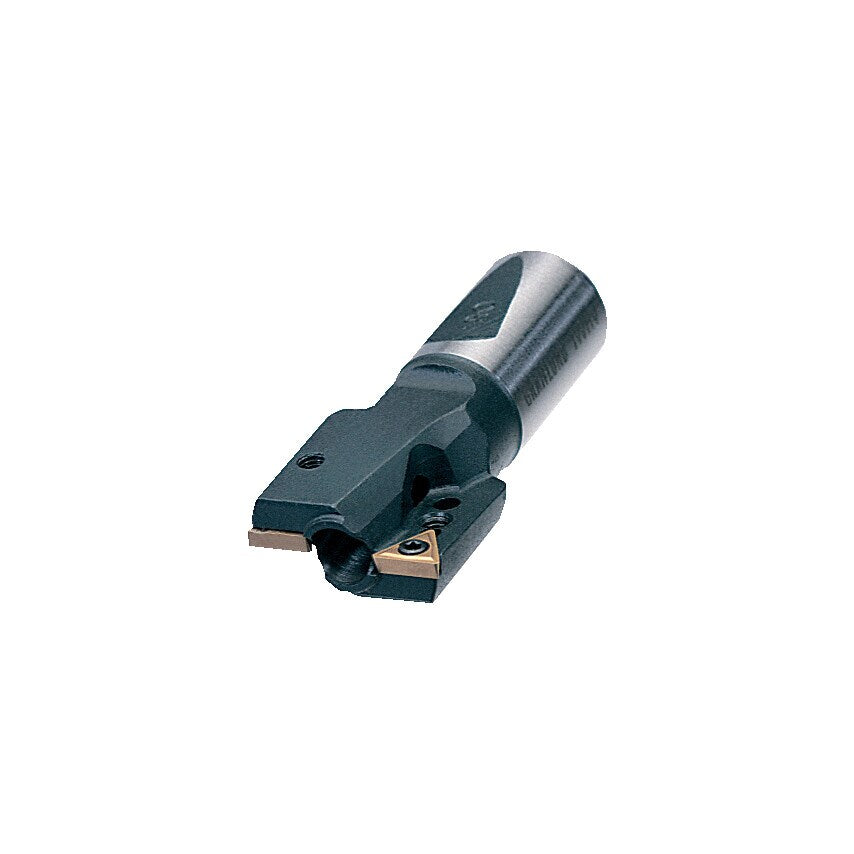

| Product Type | Rotatip Counterbore Body |
