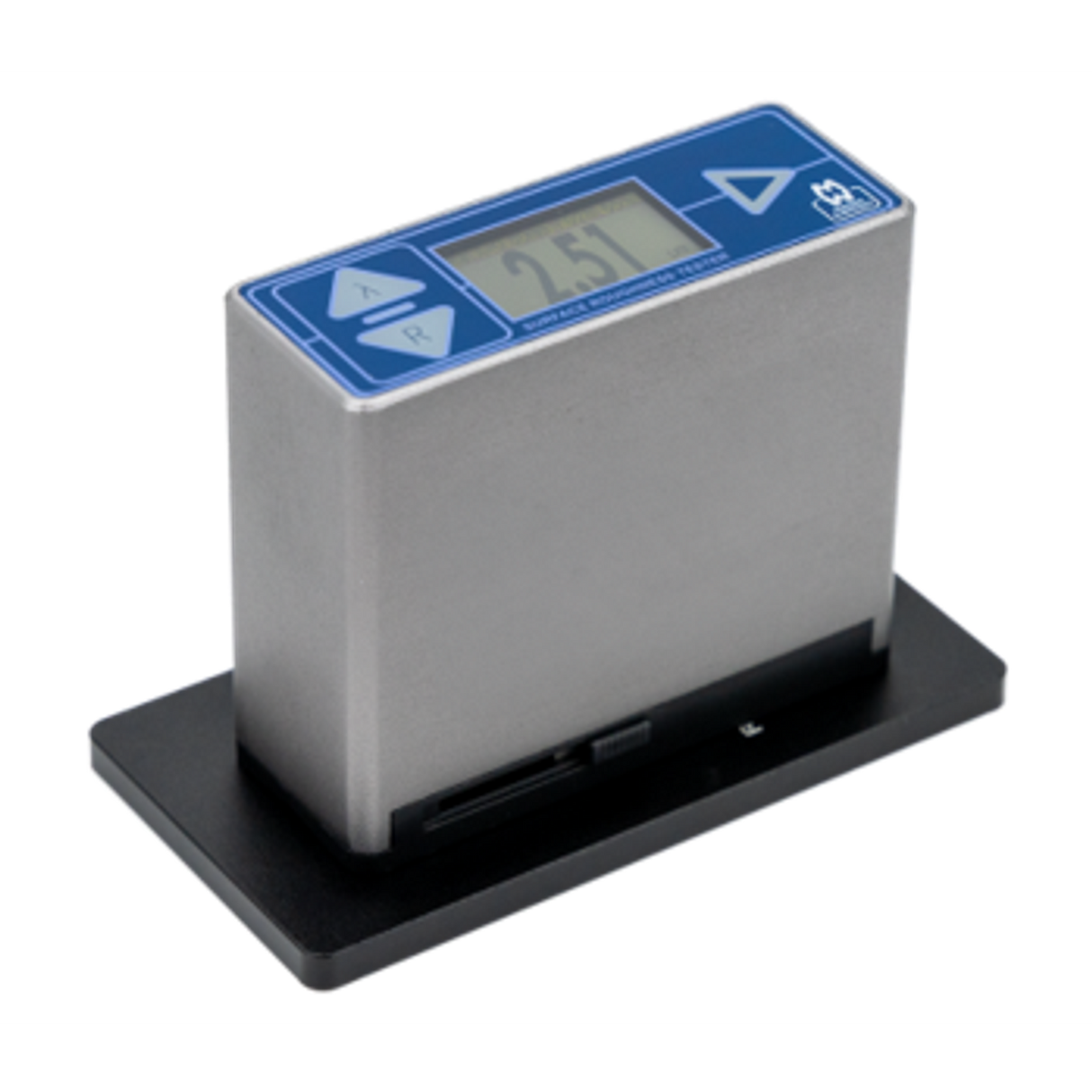

Portable Surface Roughness Tester

The MWT-1100 roughness tester can be used for a multitude of metallic or non-metallic surfaces. A bright LCD display allows simple configuration and gives readings in multiple units. When measuring, the tester is held against the surface to be measured. A stylus is automatically driven across the measured surface over a pre-configured distance. Any roughness in the surface causes the stylus to be displaced vertically, the physical displacement is transferred into an electrical signal. This signal is amplified and converted into a digital signal and processed into a value for display and saving to memory. The software and dongle provided allow wireless interface with a PC in order to collect data from the tester. The data can then be displayed in a graph, and results can be exported to Excel including measurement statistics. Can also remotely initiate a test from the PC. Features Bright LCD display for wide angle viewing Digital signal processing for high accuracy measurement Selectable measuring parameters, sample distance and units Internal storage of 500 data points Wireless data export to PC, analysis and reporting by dedicated software Aluminium housing for high durability and protection from electromagnetic interference Stroke length = 5.6mm Sampling length = 0.25mm, 0.80mm, 2.50mm Evaluation length = 1.25mm, 4.0mm, 5.6mm Measuring range (m) = Ra: Rq: 0.05 - 10.0, Rz: Rt: 0.1 - 50 Indication variability = <6% Indication error = +-10% Arc radius and angle of sensor stylus tip = Tip arc radius: m +- 1 m, Angle: 90 degrees Parameter (m) : Ra, Rz, Rq, Rt Static force of sensor stylus (N) = <0.016 Suitable for working environment conditions of 0C - 40C and relative humidity of <90% Supplied with a reference standard block for test and calibration

Housing Material

Aluminium
