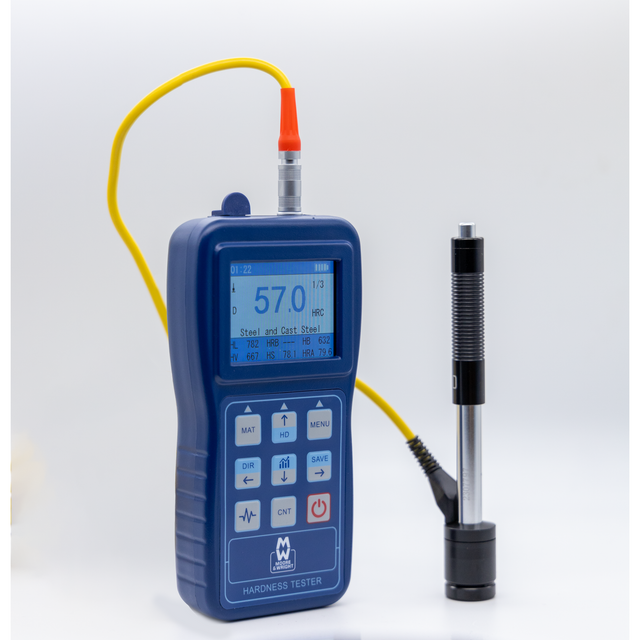

Leeb Hardness Tester HLD 170 - 960

Perfect for measuring the hardness of common metal materials, the Moore & Wright Leeb Hardness Tester features a unique full system display enabling easy switching from Leeb , Brinell , Rockwell A , Rockwell B , Rockwell C , Vickers and Shore The Moore & Wright Leeb Hardness Tester is suitable for use in both laboratory and shop floor enabling testing of a variety of metal materials. Widely used in a range of industries, this tester features a shock wave display which can determine the effectiveness of testing and impact device working conditions, recognising both probe wear and debris in the casing. Boasting fast and accurate non-destructive hardness testing, this Leeb Hardness Tester can store up to 100 groups of hardness measurement data with each group of data including single measurement value, average value, impact direction, times, materials, hardness systems, test time and other information. It is equipped with software to facilitate the reading of various data and a high-performance ARM processor with Cortex IMO core as the main control chip for fast processing speed. Can be used on steel and cast steel, alloy tool steel, grey cast iron, ductile iron, cast aluminium alloy, copper zinc alloy , copper tin alloy , pure copper Equivalent values from 6 additional hardness standards displayed simultaneously on screen Colour screen LCD with adjustable brightness Leeb hardness shock wave display for additional diagnostics Compact & portable Suitable for harsh operating environments Anti-vibration, impact and electromagnetic interference High-performance ARM processor & digital signal processing for fast accurate readings The indication error is less than +-6HLD ; the repeatability error is less than 6 Error HLD Supports 360 degree measurement direction Power supply: 3V Automatic shutdown and other power-saving functions Data storage = 100 groups Dimension = 152 x 77 x 36 Weight = 330

Dimensions

152 x 77 x 36mm
