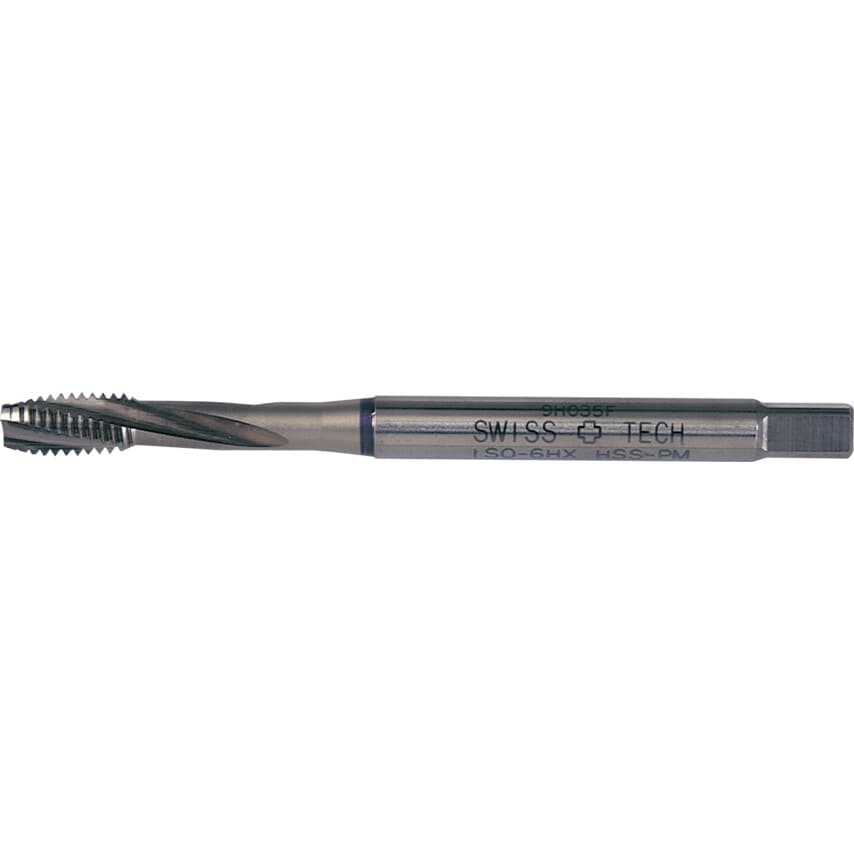

Spiral Flute - ISO Metric Coarse
HSS-PM Nitride Finish. For blind holes. Taper lead to DIN form B (3 x P). Tapping tolerance to 6HX.
ISO Metric Coarse
Helix angle 15. Tapping depth 2.5 x D.
| Shank Diameter | 9.00mm |
| Material Application | Nickel | Titanium Alloys |
| Thread Direction | Right Hand |
| Thread Size | M12 |
| Overall Length | 110.0mm |
| Dimensions Standard | DIN 376 |
| Pitch | 1.75 |
| Finish/Coating | Nitride |
| Helix Angle | 15\u00b0 |
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Class of Fit | 6HX |
| Material | Powdered Metal High Speed Steel |
| Thread Standard | Metric Coarse |
| Tapping Depth | 30.0mm |
| Tap Type | Spiral Flute |
| Material Grade | HSS-PM |
| Square Width | 7.00mm |
| Thread Length | 15.00mm |
| Ring Colour | Purple |
