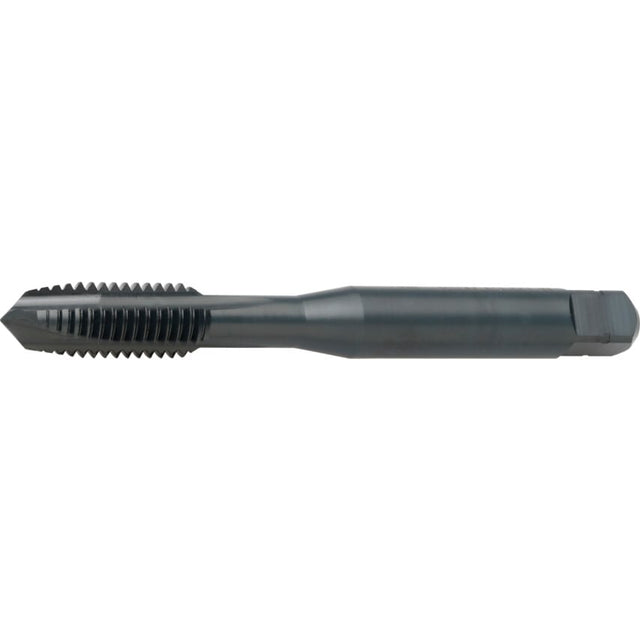

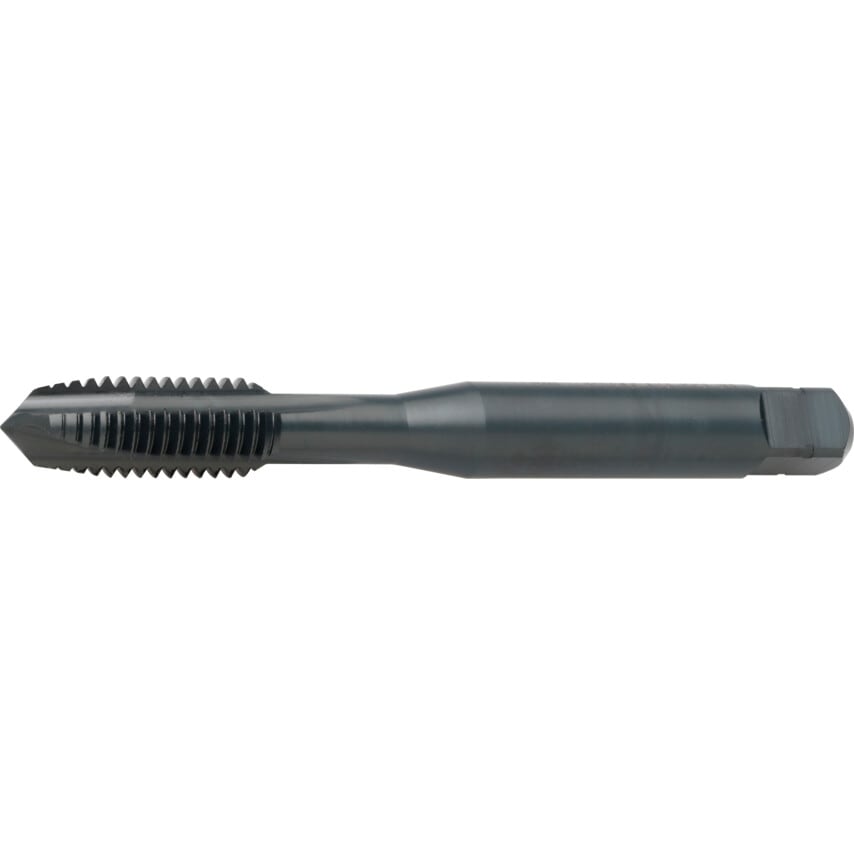

Series E011 HSS-E Spiral Point Tap - Metric
Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials.
Features
Steam Tempered
Metric Fine
Sizes M4 to M24
For through holes
2.5xD
B 3.5-5 Chamfer
Manufactured to ISO529
Tolerance 6H
| Ring Colour | No Coloured Ring |
| MFR Part No. | E011M16X1.5 |
| Pitch | 1.50 |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Dimensions Standard | ISO 529 |
| Material Grade | M35 |
| Square Width | 10.0mm |
| Tap Type | Spiral Point |
| Thread Size | M16 |
| Finish/Coating | Steam Tempered |
| Overall Length | 102.0mm |
| Class of Fit | 6H |
| Shank Diameter | 12.5mm |
| Material | Cobalt High Speed Steel |
| Series | E011 |
| Thread Standard | Metric Fine |
| Thread Length | 24.0mm |
