Features & Benefits:
Problem-free threading of blind and through holes in specific materials.
Manufactured from a special powder metallurgy tool steel for unbeatable toughness, edge strength and wear resistance.
Significant reduction in axial forces increases thread accuracy, whilst significant torque reduction reduces machine wear and decreases risk of chipping or breakage.
Yellow, Red and Blue Shark spiral flute taps feature special edge treatment to increase strength and minimise risk of micro-chipping on the cutting edges, considerably improving performance and tool life.

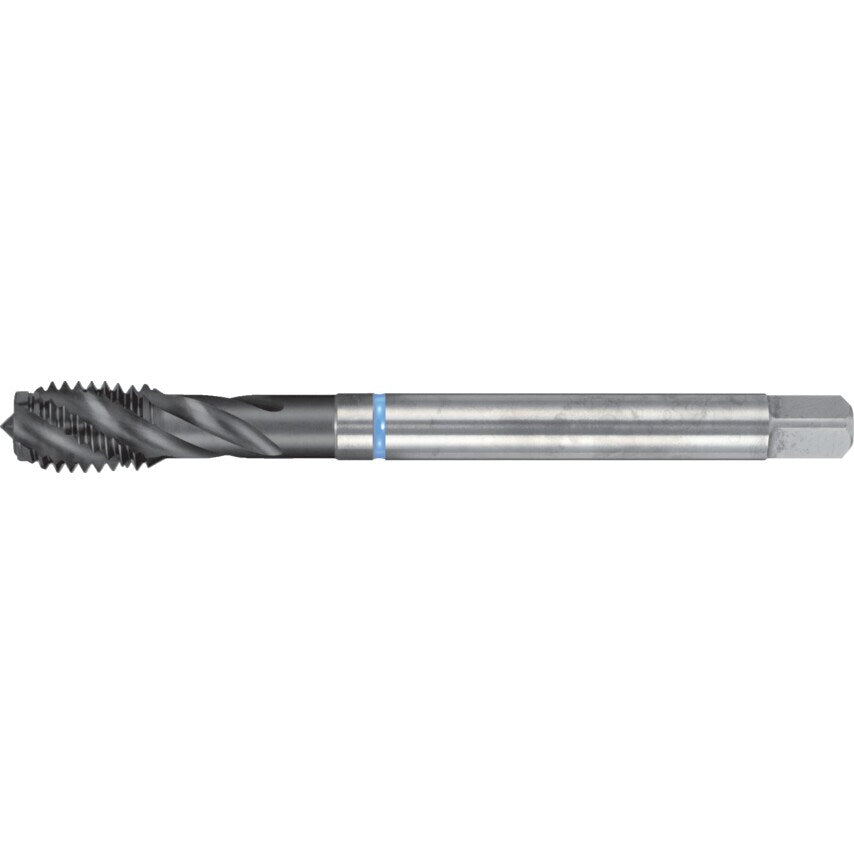

Blue Shark for Stainless Steels
Up to 10.00mm - DIN 376
Over 12.00mm - DIN 376
| Thread Standard | Metric Coarse |
| MFR Part No. | E241M5 |
| Finish/Coating | Super B |
| Material Grade | M35 |
| Tap Type | Spiral Point |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Dimensions Standard | DIN 371 |
| Series | E241 |
| Ring Colour | Blue |
| Thread Length | 13.0mm |
| Thread Direction | Right Hand |
| Thread Size | M5 |
| Shank Diameter | 6.0mm |
| Material | Powdered Metal Cobalt High Speed Steel |
| Tapping Depth | 25.0mm |
| Pitch | 0.80 |
| Square Width | 4.9mm |
| Overall Length | 70.0mm |
| Lead | Second |
