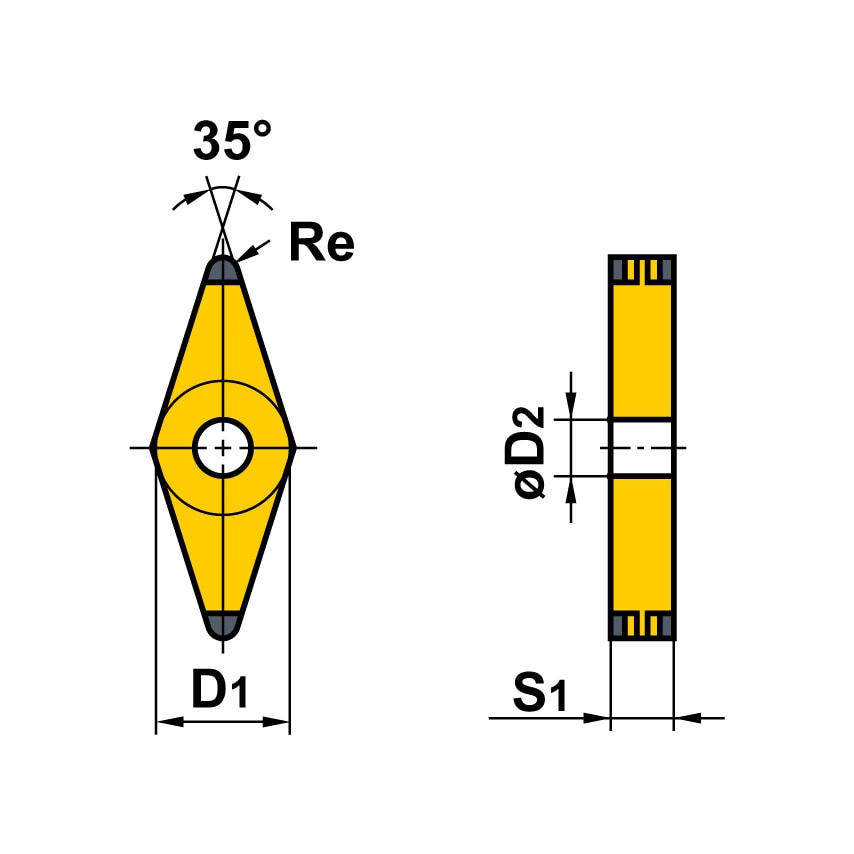

VBMT Turning Insert
35 Rhombic Insert
Insert Grade 2025
(M15-M35) CVD Ti(C,N)+Al2O3+TiN coated grade for use on stainless steel
| MFR Part No. | 11149283 |
| Clearance Angle | 5\u00b0 |
| Chipbreaker | MM |
| Product Type | Inserts |
| Finish/Coating | Al2O3+TiCN+TiN |
| Inscribed Circle | 9.525mm |
| Insert Style | VBMT |
| Cutting Direction | Neutral |
| Shape | 35\u00b0 Rhombic |
| ISO Designation | VBMT 160404-MM |
| Material | Carbide |
| ISO Category | K | P |
| Thickness | 4.76mm |
| Manufacturer Grade | GC2025 |
| Pack Quantity | 1 |
| Insert Size | 160404 |
| ISO Category Grade | K | P |
| ISO Cut | M15 to M35 | P25 to P40 |
| Material Application | Stainless Steels | Steels |
| Corner Radius | 0.4 |
| Cutting Edge Length | 16.6mm |
