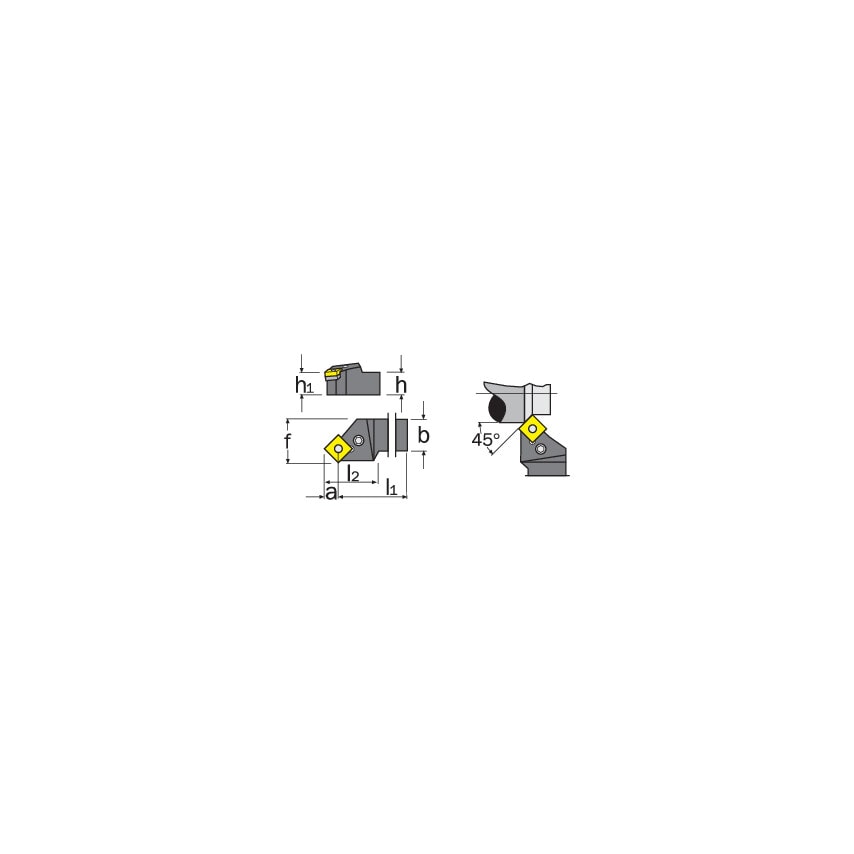

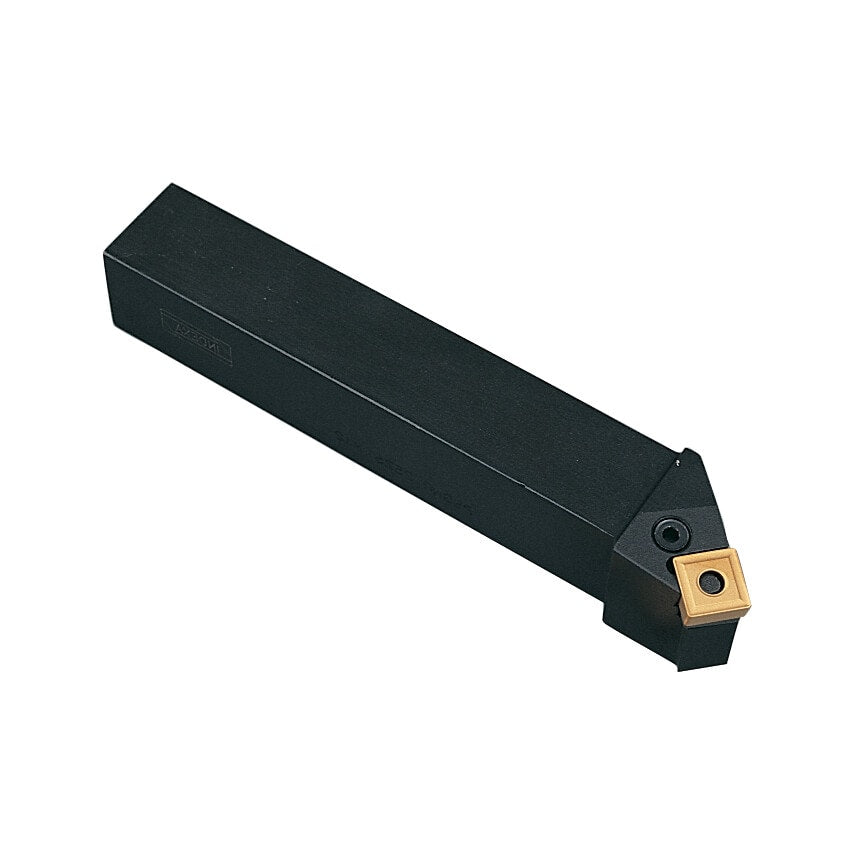

45 offset approach for negative square inserts.
Overall Length | 125.00mm |
Cutting Height | 20.00mm |
Shank Height | 20.00mm |
Set Type | Individual Toolholder |
Toolholder Style | PSSN |
ISO Designation | PSSNL 2020K12 |

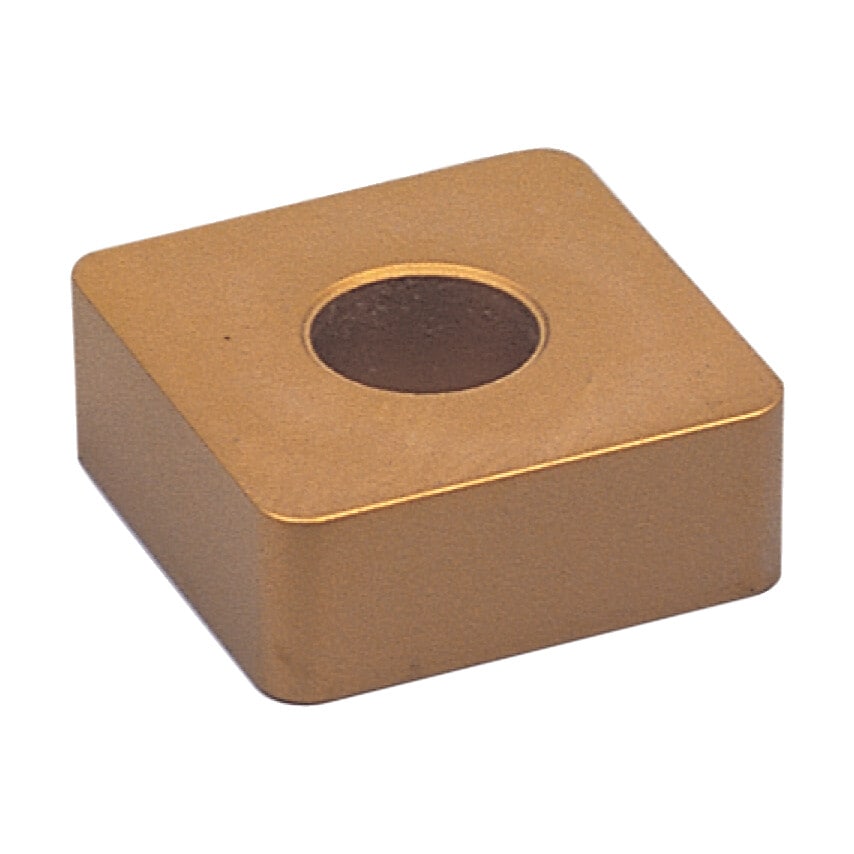

Insert Shape | Square |
Shank Style | Offset |
Insert Size | 1204 |
Shank Height (h) | 20mm |
Shank Width (b) | 20 |
Insert Style | SN_A | SN_G |
Cutting Height (h1) | 20mm |
Head Length (l2) | 28 |
Clearance Angle | 0\u00b0 |
Shank Material | Steel |
Insert Holding Type | Lever Lock |
Cutting Direction | Left Hand |
Coolant Delivery | External |
Approach Angle | 45\u00b0 |
MFR Part No. | PSSNL2020K12 |
Overall Length (l1) | 125mm |
Neck Length | 28mm |
Centre to Cutting Tip | 25mm |
Side to Cutting Tip (f) | 25 |
