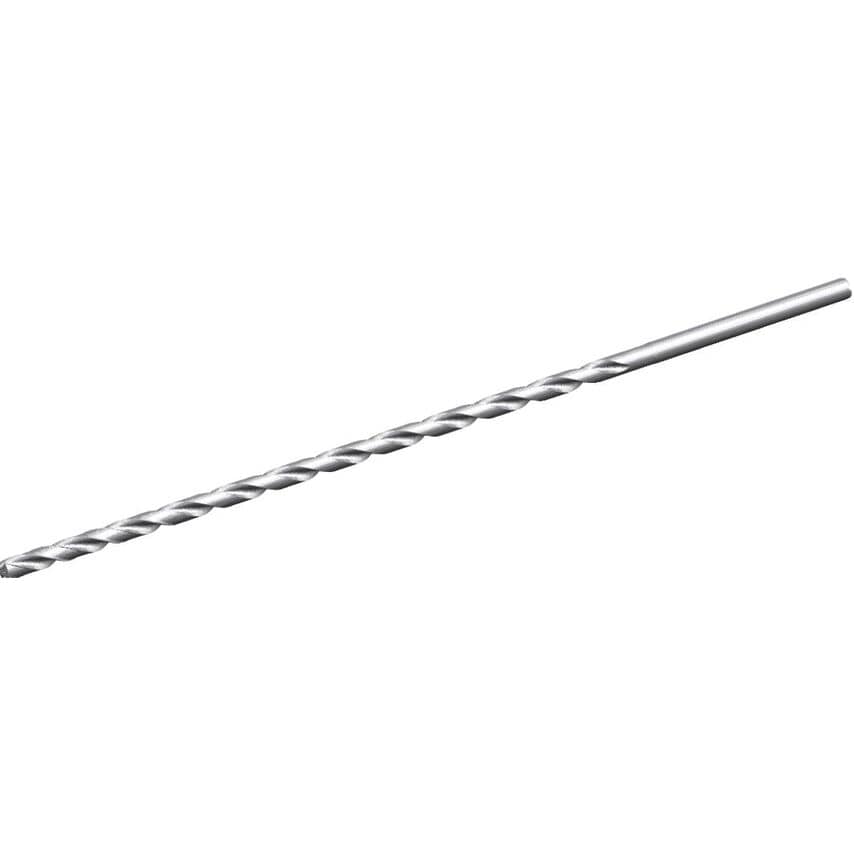

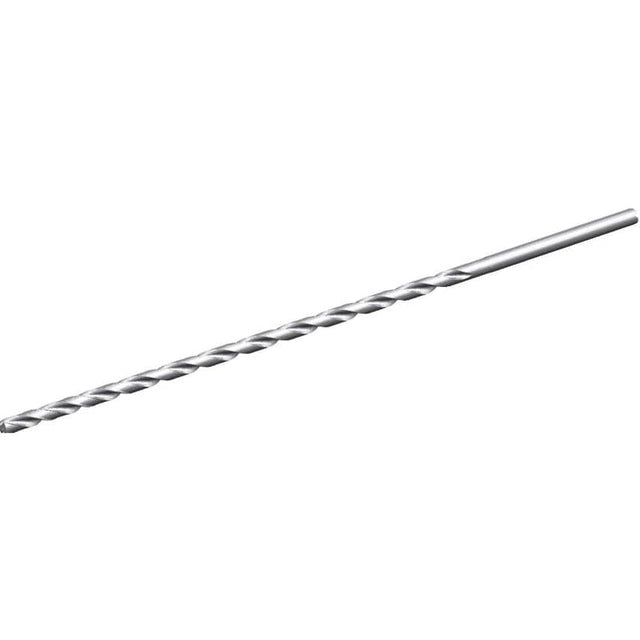

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| Flute Length | 130mm | 130.0000mm |
| Assembly Length | 132.262mm |
| Flute Construction | Helical Flute |
| Shank Length | 32.0000mm |
| Finish/Coating | Uncoated |
| Drill Point | 0.738mm |
| Adapter Style | Straight-Cylindrical |
| Clamping Length | 13.5mm |
| Drill Diameter | 4.0000mm |
| Overall Length | 165mm | 165.0000mm |
| Primary Material | Non-Ferrous Materials |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Coolant Diameter | 0.4200mm (0.0441in) |
| Adapter / Shank / Bore Diameter | 4.0000mm |
| Hand Preference | Right |
| Number of Flutes | 2 |
| Material | Carbide |
| Functional Length | 164.2620mm |
| MFR Part No. | 3867831 |
| Adapter Type | Cylindrical |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Angle | 29.995 |
| Drill Depth | 120mm | 120.0000mm |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
