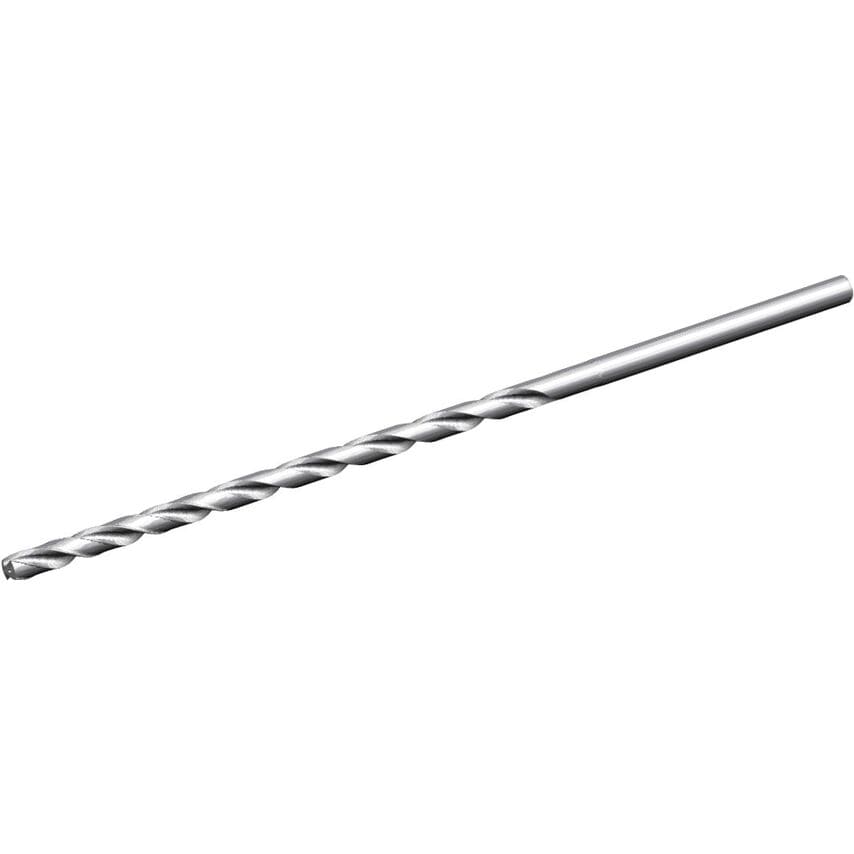

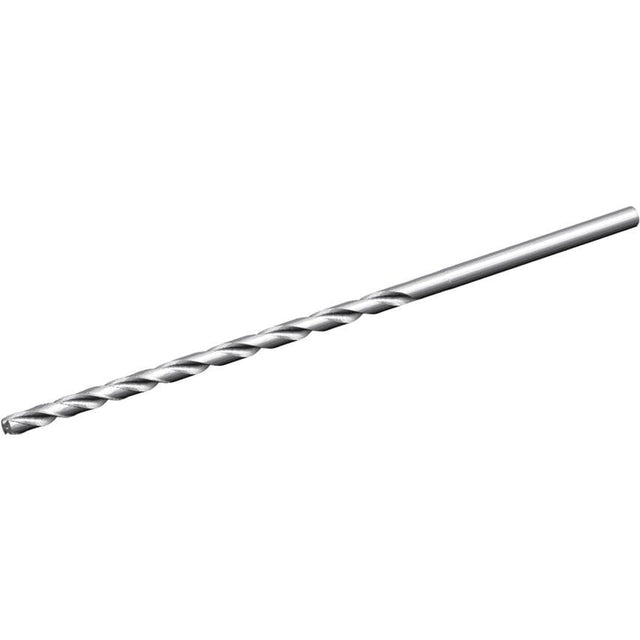

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Helix Type | Right Hand Helix/Flute |
| Clamping Length | 36.525mm |
| Material | Carbide |
| Adapter Type | Cylindrical |
| Drill Point | 2.344mm |
| Helix Angle | 29.424 |
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| Functional Length | 338.6560mm |
| Coolant Supplied | Yes |
| Drill Depth | 258mm | 258.0000mm |
| Flute Length | 285mm | 285.0000mm |
| Primary Material | Non-Ferrous Materials |
| Coolant Diameter | 2.0000mm (0.0787in) |
| Shank Length | 50.0000mm |
| Number of Flutes | 2 |
| Assembly Length | 288.656mm |
| MFR Part No. | 3891697 |
| Adapter / Shank / Bore Diameter | 13.0000mm |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Drill Diameter | 12.7000mm |
| Overall Length | 341mm | 341.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Construction | Helical Flute |
