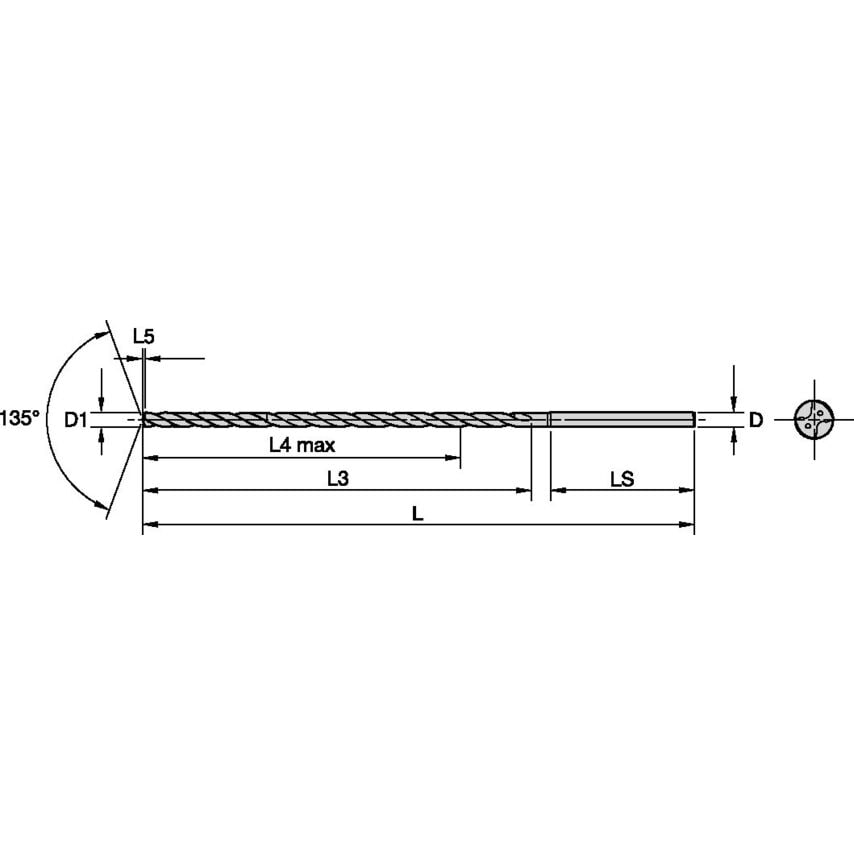

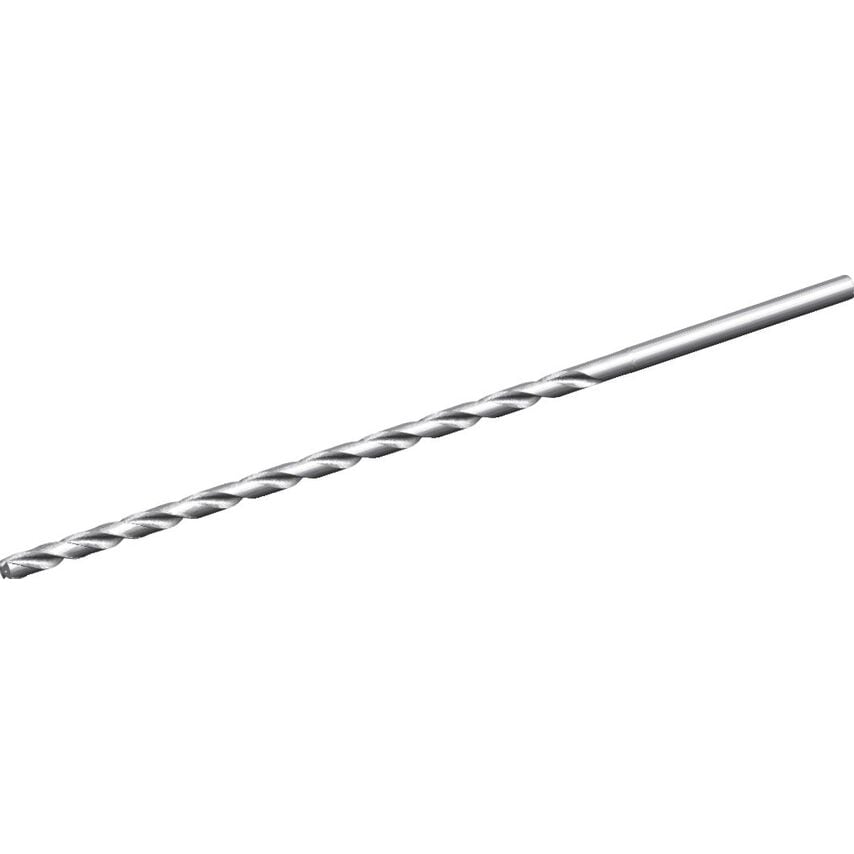

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Diameter | 1.4400mm (0.0567in) |
| Assembly Length | 280.625mm |
| Unit Measured | Metric |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Drill Point | 1.85mm |
| Clamping Length | 40mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Coolant Supplied | Yes |
| Adapter Type | Cylindrical |
| Drill Depth | 250mm | 250.0000mm |
| MFR Part No. | 3867850 |
| Flute Length | 272mm | 272.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Type | Right Hand Helix/Flute |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Helix Angle | 30.002 |
| Shank Length | 44.0000mm |
| Functional Length | 317.1500mm |
| Drill Diameter | 10.0000mm |
| Overall Length | 319mm | 319.0000mm |
