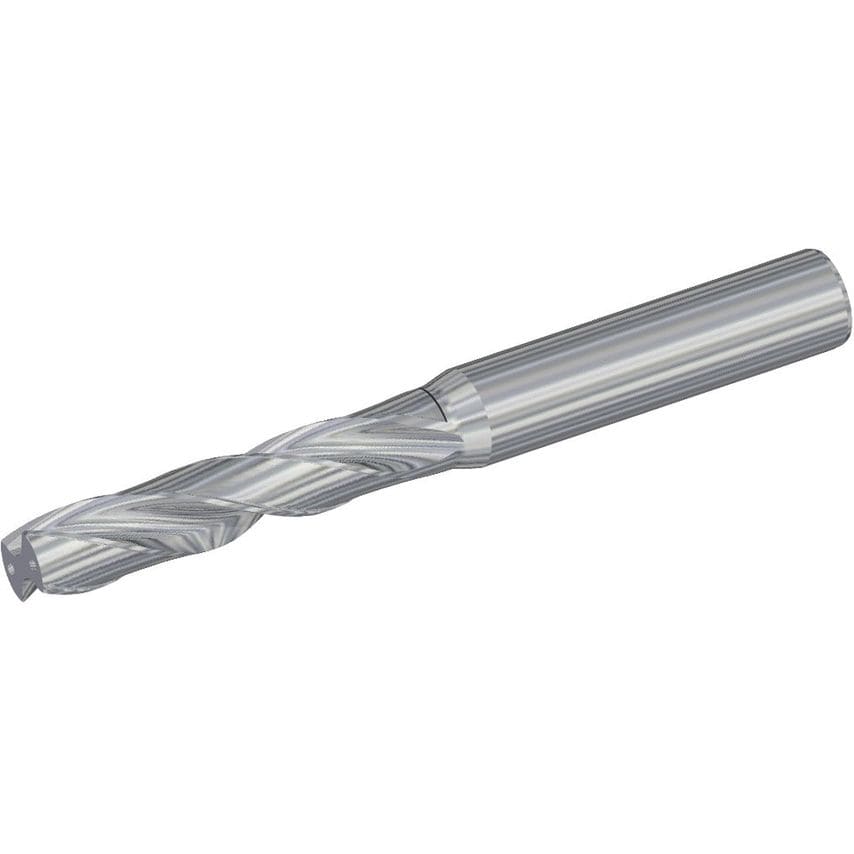

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Adapter Type | Cylindrical |
| Overall Length | 89mm | 89.0000mm |
| Clamping Length | 40mm |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Primary Material | Non-Ferrous Materials |
| Unit Measured | Metric |
| Finish/Coating | Uncoated |
| Coolant Delivery | Off-center Axial Coolant |
| Assembly Length | 48.661mm |
| Helix Type | Right Hand Helix/Flute |
| Shank Length | 40.0000mm |
| Flute Construction | Helical Flute |
| Functional Length | 88.6610mm |
| Adapter Style | Straight-Cylindrical |
| Material | Carbide |
| MFR Part No. | 3894833 |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Hand Preference | Right |
| Flute Length | 47mm | 47.0000mm |
| Drill Diameter | 8.8000mm |
| Helix Angle | 28.461 |
| Drill Depth | 35mm | 35.0000mm |
