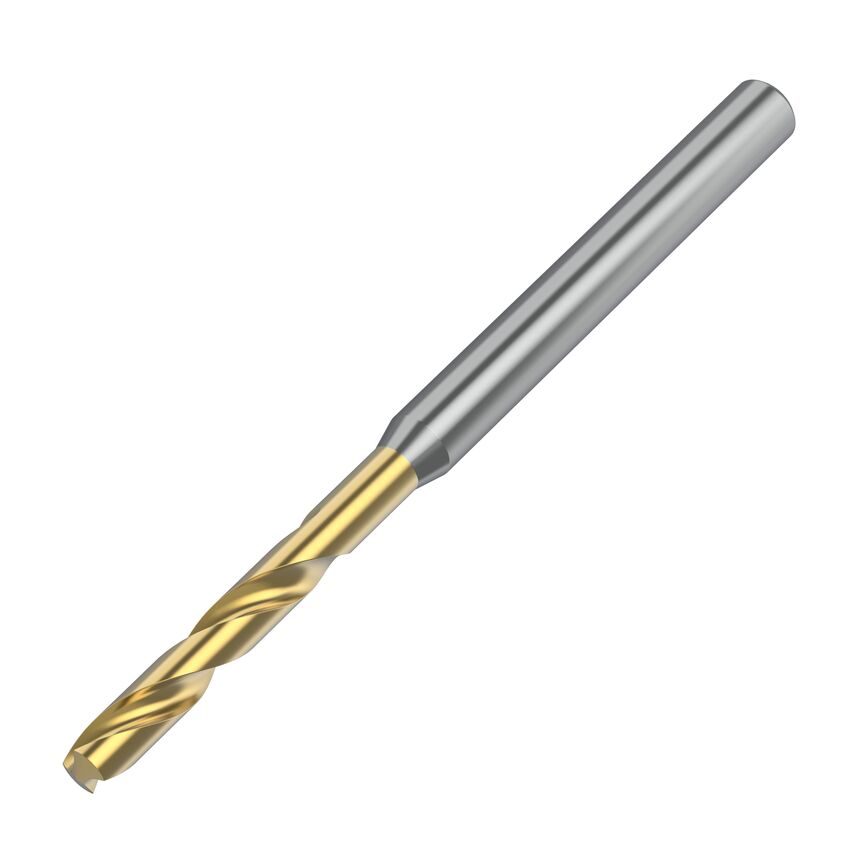

GOdrill Wide Range of Materials Through Coolant
Solid Carbide Drills
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 14.5000mm |
| Coolant Diameter | 2.2400mm (0.0472in) |
| Flute Construction | Helical Flute |
| Clamping Length | 43mm |
| Adapter Style | Straight-Cylindrical |
| Flute Length | 121mm | 121.0000mm |
| Adapter Type | Cylindrical |
| Functional Length | 168.5000mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Finish/Coating | TiN |
| Overall Length | 171mm | 171.0000mm |
| Assembly Length | 126.5mm |
| Shank Diameter | 14.5mm |
| Drill Point | 2.5mm |
| Hand Preference | Right |
| Drill Depth | 101mm | 101.0000mm |
| Number of Flutes | 2 |
| Shank Length | 48.0000mm |
| Unit Measured | Metric |
| MFR Part No. | 4149787 |
| Primary Material | Stainless Steel |
| Helix Angle | 27.053 |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Coolant Supplied | Yes |
| Material | Carbide |
