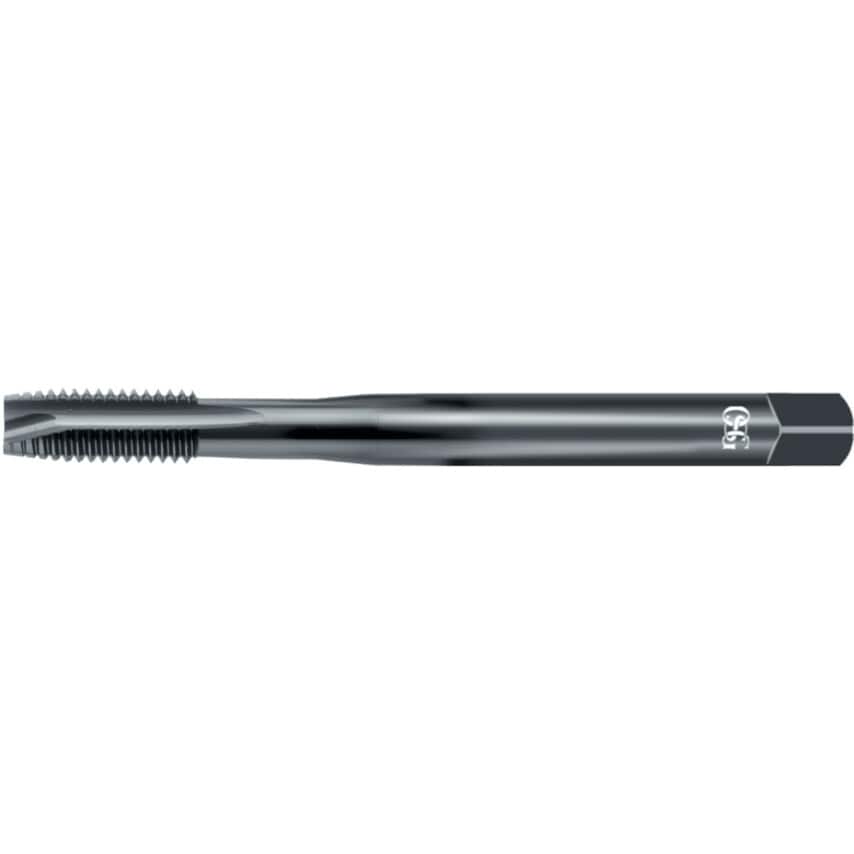

OSG VA-POT Series spiral point high performance machine taps are for threading through holes.
Suitable for stainless steels and most ferrous materials.
Steam oxide surface treatment. 4 pitch chamfer lead.
DIN 371 Reinforced shank: sizes up to M10.
DIN 374 Reduced shank: metric fine sizes.
DIN 376 Reduced shank: sizes M12 and above.
For all technical and dimensional specifications please refer to our catalogue.
| Series | VA-POT |
| Product Type | Taps |
| Overall Length | 63mm |
| Material Application | Alloy Steel | Cast Iron | Ductile Iron | Iron | Stainless Steels | Steels |
| Class of Fit | 6H |
| Thread Size | M4 x 0.70 |
| Number of Flutes | 3 |
| Material | HSS |
| Pitch | 0.7mm |
| Tap Type | Spiral Point |
| Thread Direction | Right Hand |
| Dimensions Standard | DIN 371 |
| Square Width | 3.4mm |
| Coolant Delivery | External |
| Thread Length | 21.00mm |
| Finish/Coating | Steam Tempered |
| Thread Standard | Metric Coarse |
| Ring Colour | No Coloured Ring |
| Lead | Second |
| MFR Part No. | 63814460 |
| Shank Diameter | 4.5mm |
