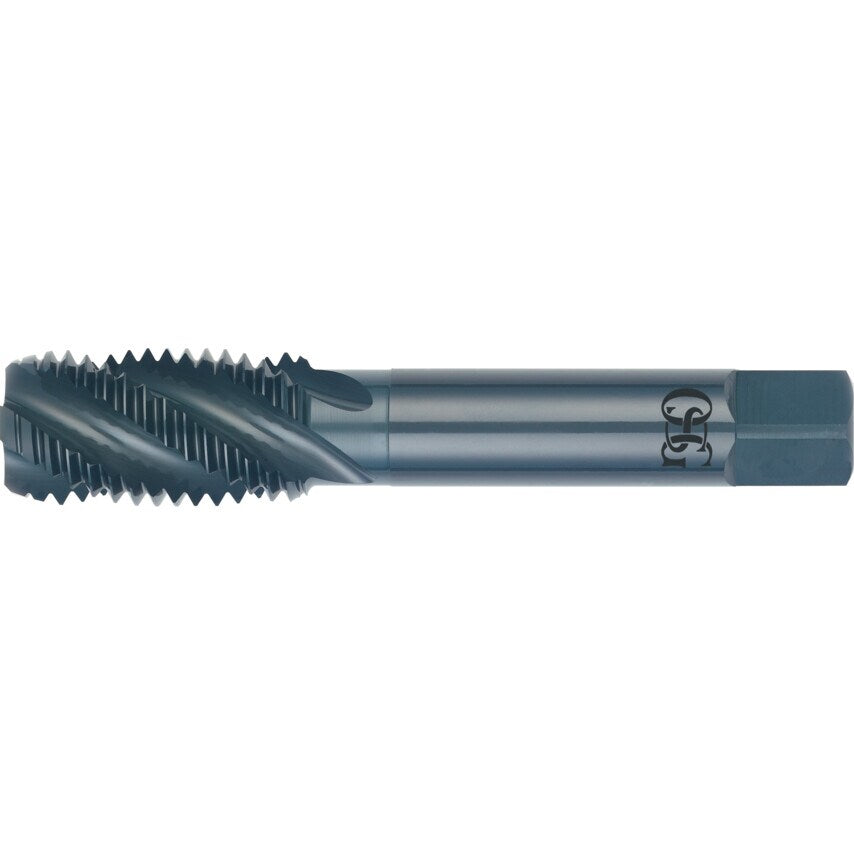

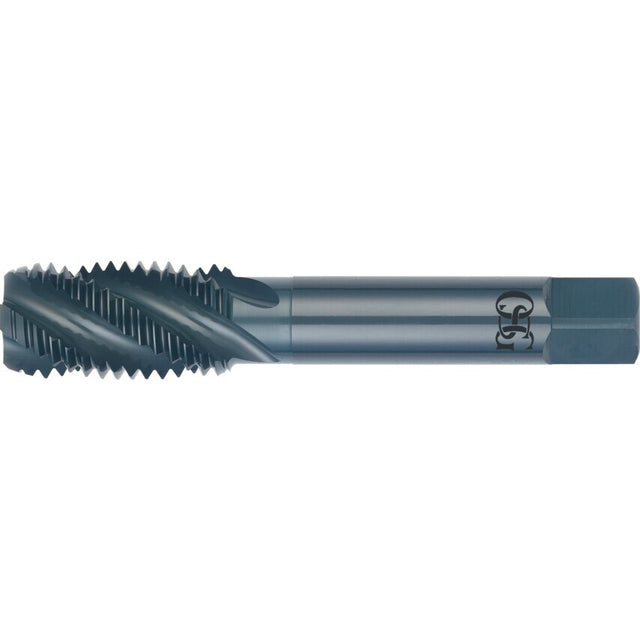

Spiral Flute - BSWHSS-EV3. Oxidised finish. 1066QS for blind holes..Type 1066Manufactured from 3% vanadium super grade high speed steel. Increased vanadium produces toughness without adding brittleness. Greater resistance to work generated heat. Prolonged cutting edge life. Manufactured to ISO 529 : 1975.BSP and BSPF also available.
| Overall Length | 112mm |
| Dimensions Standard | ISO 529 |
| Lead | Plug |
| MFR Part No. | 22207134 |
| Thread Standard | BSW |
| Helix Angle | 40\u00b0 |
| Coolant Delivery | External |
| Material | HSS-EV3 |
| Square Width | 11.2mm |
| Thread Size | 3/4in |
| Teeth per Inch | 10 |
| Shank Diameter | 14mm |
| Thread Direction | Right Hnd |
| Thread Length | 37mm |
| Finish/Coating | Steam Tempered |
| Series | 1066-SFT |
| Tap Type | Spiral Flute |
