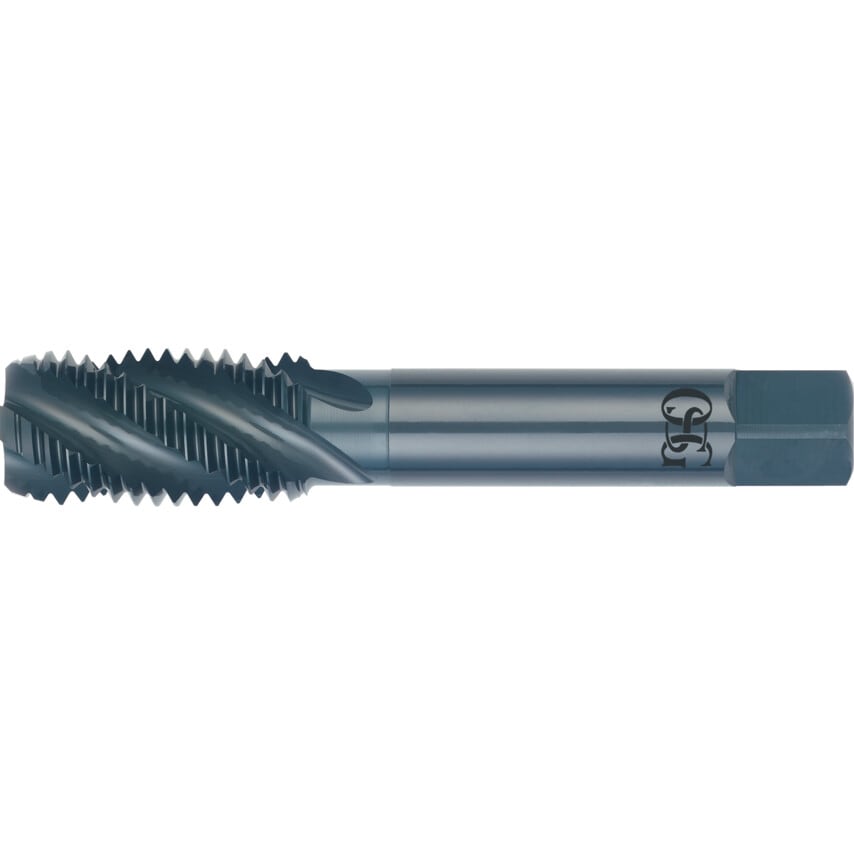

Spiral Flute - UNF.
HSS-EV3. Oxidised finish. 1066QS for blind holes.
Type 1066.
Manufactured from 3% vanadium super grade high speed steel. Increased vanadium produces toughness without adding brittleness. Greater resistance to work generated heat. Prolonged cutting edge life. Manufactured to ISO 529 : 1975.
BSP and BSPF also available.
| Dimensions Standard | ISO 529 |
| Helix Angle | 40\u00b0 |
| Tap Type | Spiral Flute |
| Series | 1066-SFT |
| Thread Direction | Right Hnd |
| Teeth per Inch | 64 |
| Thread Length | 9.5mm |
| Coolant Delivery | External |
| Thread Standard | UNF |
| Square Width | 2.24mm |
| Class of Fit | 2B |
| MFR Part No. | 22204544 |
| Thread Size | No.2 |
| Overall Length | 44.5mm |
| Finish/Coating | Steam Tempered |
| Shank Diameter | 2.8mm |
| Material | HSS-EV3 |
